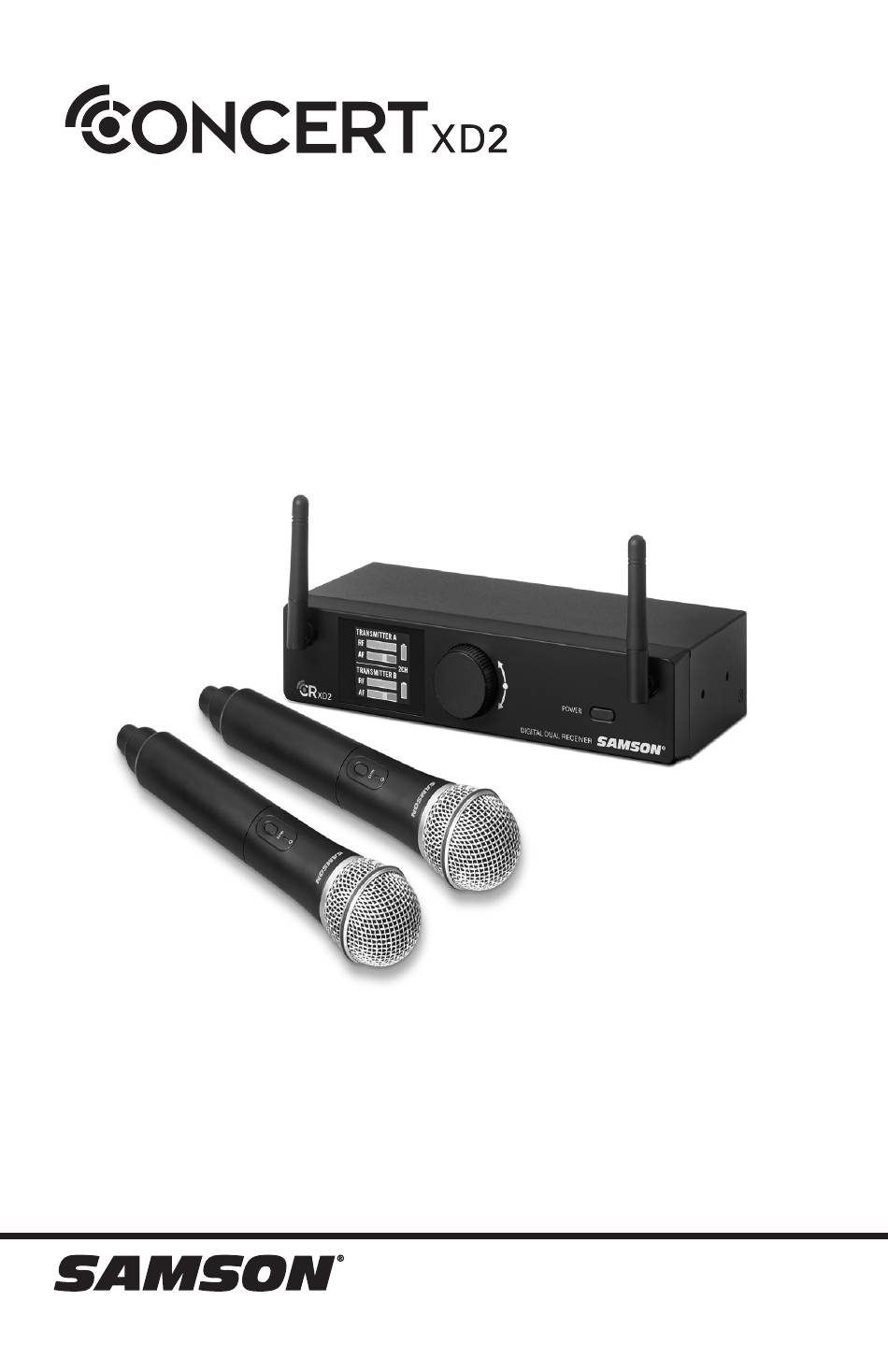

- Page 1 TWO - CHANNEL DIGITAL WIRELESS OWNER'S MANUAL...
- Page 2 Copyright 2023, Samson Technologies Corp V1.3 Samson Technologies Corp. 278-B Duffy Ave Hicksville, NY 11801 www.samsontech.com...
-
Page 3: Important Safety Information
For Countries not mentioned above, please contact your local authorities for a correct method of disposal. By doing so you will ensure that your disposed product undergoes the necessary treatment, re- covery and recycling and thus prevent potential negative effects on the environment and human health. Concert XD2 Wireless System... - Page 4 Important Safety Information FCC Rules and Regulations Samson wireless receivers are certified under FCC Rules part 15 and transmitters are certified under FCC Rules part 15D. Licensing of Samson equipment is the user’s responsibility and licensability depends on the user’s classification, application and frequency selected.
- Page 5 The Concert XD2 system provides a bullet-proof, reliable wireless performance at any venue around the globe. In these pages, you’ll find a detailed description of the features of the Concert XD2 Wireless System, as well as step-by-step instructions for its setup and use. If your wireless system was purchased in the United States, you’ll also find a registration card enclosed—don’t forget to...
- Page 6 Antennas - The antenna mountings allow full rotation for optimum placement. Antenna orientation depends on user application, room reflections, and so on. Samson suggests that the antenna be placed at a 45 degree angle, or straight up and down. Both antennas can be folded inward for convenience when transporting the CRXD2 Receiver.
- Page 7 CH B OUT BALANCED - Use this electronically balanced low impedance (600 Ohm) XLR jack when connecting the CRXD2 to professional (+4 dBu) audio equipment. Wiring is as follows: Pin 1 = ground, Pin 2 = hot, and Pin 3 = cold. Concert XD2 Wireless System...
- Page 8 CHXD2 Handheld Transmitter Callouts Power/Mute Button - Press, hold to turn the unit on. A quick press and release will mute or un-mute the transmitter (when the transmitter is on). Press and hold for 2 seconds to power off. NOTE - Transmitters are paired at the factory. Should you need to pair again, press and hold (for more than 5 seconds) to enter pairing mode (quick flashing red LED, followed by quick flashing amber LED).
- Page 9 (before the sound becomes distorted). If you have a strong voice that is distorting the input turn the control counter-clockwise (using the supplied screwdriver) slowly unitl your voice sounds clear (no distortion). Screwdriver - Designed for adjusting the GAIN control in the CBXD2 transmitter. Concert XD2 Wireless System...
-
Page 10: Quick Start
In order for your wireless system to work correctly, both receiver and transmitter must be paired. NOTE: factory sealed product will be delivered with both transmitters and receiver pre-paired. Follow this basic procedure for setting up your Concert XD2 wireless system: Physically place the CRXD2 receiver where it will be used, and extend the antennas vertically or at 45 degree angle (NOTE - check #1 on page 6). - Page 11 Turn on your connected amplifier or mixer, but keep the volume all the way down. Speak or sing into the microphone at normal performance level. Slowly raise the volume of your amplifier or mixer until the desired volume level is reached. Concert XD2 Wireless System...
- Page 12 Pairing with CRXD2 Receiver Follow the procedure as described below to pair CHXD2 or CBXD2 transmitters with a CRXD2 receiver. Push the rotary encoder (MENU) in to enter and adjust menu options. Highlight the “CHANNEL A” or “CHANNEL B”, and push the button to select. LCD screen will display “...pairing”.
- Page 13 XLR (one for A and one for B) or change to MIX and use the unbalanced 1/4” output (meaning, both CHANNEL A and CHANNEL B on one audio output jack). Concert XD2 Wireless System...
-
Page 14: Specifications
100 Ω XLR output jack (balanced) 317 Ω Dimensions (LxWxH) 7.79 ” x 3.38” x 1.69” 198mm x 86mm x 43mm Weight 1.12 lb/509.5g At Samson, we are continually improving our products. Specifications and images are subject to change without notice. -
Page 15: Rack Mounting
In order to mount two CRXD2 receivers in one rack space, the system requires a joining plate and short rack brackets (rack ears). These are available directly from Samson, or you can order from your local authorized Samson reseller. above. - Page 16 Having Trouble with your Concert XD2 Wireless System? We can help! CONTACT OUR SUPPORT TEAM: support@samsontech.com Our experts can help you resolve any issues. Follow us: @samson @samsontech @samson_technologies Samson Technologies 278-B Duffy Ave Hicksville, NY 11801 www.samsontech.com...
- Page 17 IC Warning This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
- Page 18 l'arrière du téléphone étant maintenu à une distance de 0 mm du fuselage. Pour rester conforme aux exigences d'exposition aux RF IC, utilisez un accessoire qui maintient une distance de 0 mm entre le corps de l'utilisateur et l'arrière du téléphone. Lorsque vous utilisez des clips de ceinture, des étuis et des accessoires similaires, aucune pièce métallique ne doit être incluse dans leur assemblage.
- Page 19 CRXD2: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. CBXD2&CHXD2: These product meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies.
