Storage
RAID (optional)
USB
Audio
LAN
4

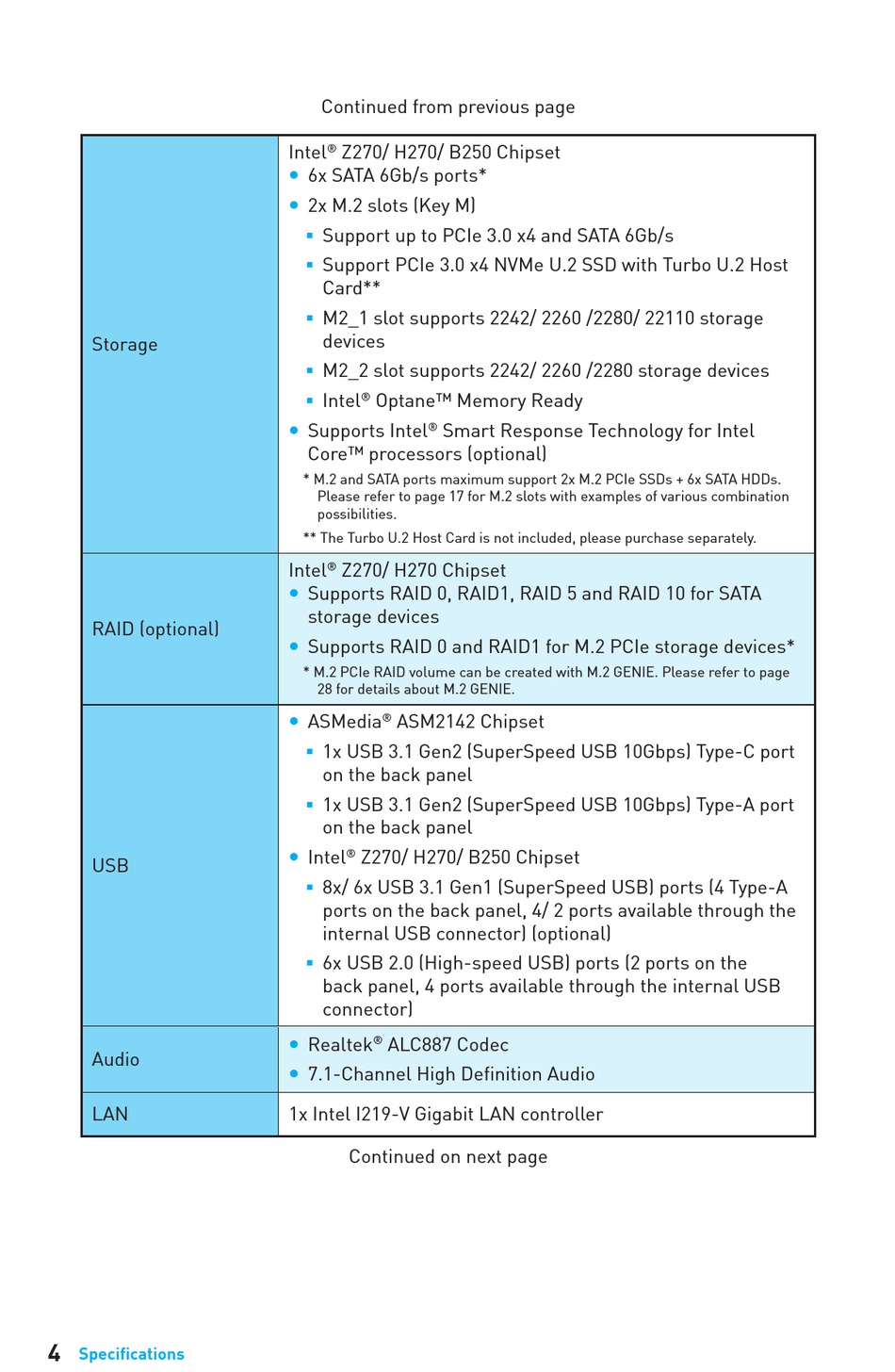

Specifications
Continued from previous page
Intel Z270/ H270/ B250 Chipset
®
6x SATA 6Gb/s ports*
y
2x M.2 slots (Key M)
y
Support up to PCIe 3.0 x4 and SATA 6Gb/s
ƒ
Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host
ƒ
Card**
M2_1 slot supports 2242/ 2260 /2280/ 22110 storage
ƒ
devices
M2_2 slot supports 2242/ 2260 /2280 storage devices
ƒ
Intel Optane™ Memory Ready
®
ƒ
Supports Intel Smart Response Technology for Intel
®
y
Core™ processors (optional)
* M.2 and SATA ports maximum support 2x M.2 PCIe SSDs + 6x SATA HDDs.
Please refer to page 17 for M.2 slots with examples of various combination
possibilities.
** The Turbo U.2 Host Card is not included, please purchase separately.
Intel Z270/ H270 Chipset
®
Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA
y
storage devices
Supports RAID 0 and RAID1 for M.2 PCIe storage devices*
y
* M.2 PCIe RAID volume can be created with M.2 GENIE. Please refer to page
28 for details about M.2 GENIE.
ASMedia ASM2142 Chipset
®
y
1x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port
ƒ
on the back panel
1x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port
ƒ
on the back panel
Intel Z270/ H270/ B250 Chipset
®
y
8x/ 6x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A
ƒ
ports on the back panel, 4/ 2 ports available through the
internal USB connector) (optional)
6x USB 2.0 (High-speed USB) ports (2 ports on the
ƒ
back panel, 4 ports available through the internal USB
connector)
Realtek ALC887 Codec
®
y
7.1-Channel High Definition Audio
y
1x Intel I219-V Gigabit LAN controller
Continued on next page
