Sealey LED3000 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS & CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT
IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE
WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. GENERAL
Use this light only as it is intended.
9
Inspect before every use.
9
Keep away from infants and toddlers as this product contains small parts.
9
Protect this product from water, humidity or any liquids.
9
DO NOT stare into the light, shine light into eyes or focus the beam using an additional lens.
8
DO NOT use the light if you suspect that the battery or product casing is damaged.
8
DO NOT attempt to repair/disassemble the light yourself.
8
DO NOT leave batteries in a discharged state. Before storage remove batteries.
8
DO NOT use/store the product in extreme temperatures.
8
1.2. BATTERY SAFETY
WARNING! This product contains a non-replaceable rechargeable lithium battery. Attempting to open the product or replacing the
‰
rechargeable battery will result in permanent damage and void all warranties.
WARNING! To reduce the risk of burns or fire:
‰
DO NOT attempt to open the batteries.
8
DO NOT crush, puncture, short contacts or dispose of in fire or water.
8
DO NOT expose to temperatures above 60°C (140°F).
8
Recycle or dispose of used batteries as stipulated by local regulation.
9
If the electrolyte in the batteries gets on your skin, rinse thoroughly with water. If it gets in your eyes, rinse thoroughly with cool water
9
and seek immediate medical attention.
2. INTRODUCTION

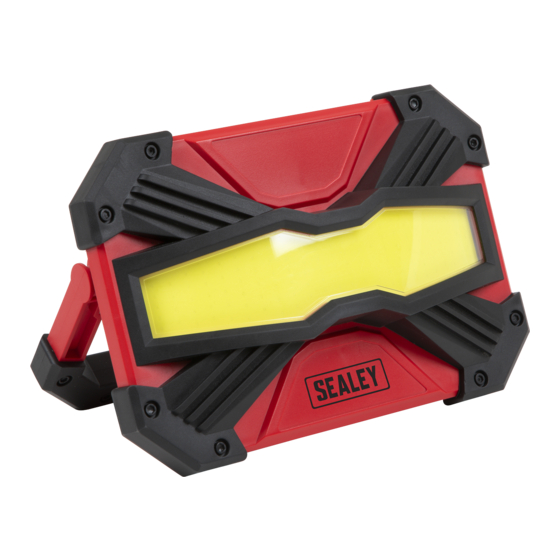

30W COB LED Compact portable floodlight. 3 modes of light ranging
from 300-3000lm. Rechargeable high quality 3.7V battery. 180°curve
for a wide spread of light. Adjustable stand for positioning of light.
Supplied with 50cm Type-C USB Charging cable. Charging time 8.5
Hours. Water and Impact resistant. Power bank output 5V 1A.
3. SPECIFICATION
MODEL NO:
Battery:
Charging Time:
IP Rating:
LED Type:
Lumen Output:
Operating Time:
Power:
USB Output:
4. OPERATION
4.1. CHARGING (FIG.2)
This product is rechargeable. Please charge fully before first use to
ensure optimal performance. Pull up the rubber port cover on the back
of the light. Connect the USB-A into a USB power source such as a
power cube, computer or car adapter and the USB-C plug into the
charging port. A green four step charging indicator flashes. Charging is
complete when all 4 lights turn solid green. DO NOT USE THE WORK
LIGHT WHILE IT IS CHARGING!
4.2. POWER BUTTON (FIG.2)
Repeatedly pressing the power button cycles between high, medium
and low brightness settings, plus off.
© Jack Sealey Limited
30W COB LED RECHARGABLE PORTABLE
FLOODLIGHT AND POWER BANK
MODEL NO:
LED3000
3.7V 4Ah (x2)
8.5hrs
IPX6
COB
3000lm
Mode 1- 1hr 40 mins
Mode 2- 3 Hr 40 mins
Mode 3 - 7hr 30 mins
30W
5V 1A
Original Language Version
LED3000
FIG.1
KICKSTAND
FIG.2
POWER
BUTTON
USB
PORT
LED3000 Issue 1 23/10/23
