Installation manual
Daikin room air conditioner
Daikin room air conditioner

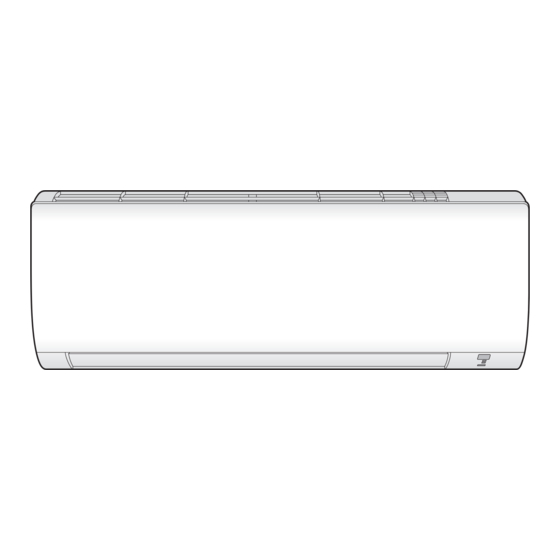

Daikin ATXF35E
Installation manual
o
English
Advertisement
Table of Contents
Related Manuals for Daikin ATXF35E
Summary of Contents for Daikin ATXF35E
-
Page 1: Table Of Contents
Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Daikin ATXF35E cerca il tuo prodotto tra le migliori offerte di Condizionatori e Deumidificatori Installation manual Daikin room air conditioner ATXF20E5V1B ATXF25E5V1B ATXF35E5V1B Installation manual ATXF42E5V1B English Daikin room air conditioner... - Page 2 3P516375-21V...
- Page 3 4P711164-1...
-
Page 4: Table Of Contents
Daikin website (publicly accessible). To pass the pipes through the wall hole........13 ▪ The full set of latest technical data is available on the Daikin To fix the unit on the mounting plate ......... 13 Business Portal (authentication required). - Page 5 ▪ Use flare nuts that are included with the unit. Using different flare nuts may cause refrigerant gas leakage. CAUTION Do NOT open the valves before flaring is complete. This would cause refrigerant gas leakage. ATXF20~42E5V1B Installation manual Daikin room air conditioner 3P650253-11H – 2022.10...
-
Page 6: About The Box
–15°C. ▪ Make sure that the system is earthed properly. ▪ Turn OFF the power supply before servicing. ▪ Install the switch box cover before turning ON the power supply. Installation manual ATXF20~42E5V1B Daikin room air conditioner 3P650253-11H – 2022.10... -
Page 7: Operation Range
3 Disconnect the front panel shaft on the other side in the same manner. WARNING Make sure installation, servicing, maintenance and repair comply with instructions from Daikin and with applicable legislation and are executed ONLY by authorised persons. ATXF20~42E5V1B Installation manual Daikin room air conditioner 3P650253-11H –... -
Page 8: To Re-Install The Front Panel
1 Install the front grille and firmly engage the 3 upper hooks. 2 Install 2 screws back on the front grille. 3 Install the air filter and then mount the front panel. Installation manual ATXF20~42E5V1B Daikin room air conditioner 3P650253-11H – 2022.10... -
Page 9: To Drill A Wall Hole
▪ Ridgid polyvinyl chloride pipe. When connecting a ridgid polyvinyl chloride pipe (nominal Ø13 mm) directly to the drain hose as with embedded piping work, use a field supplied drain socket (nominal Ø13 mm). ATXF20~42E5V1B Installation manual Daikin room air conditioner 3P650253-11H – 2022.10... -
Page 10: Piping Installation
3 Insert the drain hose on the left side and do not forget to tighten it with the fixing screw; otherwise water leakage may occur. Class L1 liquid piping L1 gas piping 20~42 Ø6.4 Ø9.5 Installation manual ATXF20~42E5V1B Daikin room air conditioner 3P650253-11H – 2022.10... -
Page 11: Refrigerant Piping Insulation
200 kPa (2 bar). It is recommended to pressurize to 3000 kPa (30 bar) in order to detect small leaks. 2 Check for leaks by applying the bubble test solution to all connections. ATXF20~42E5V1B Installation manual Daikin room air conditioner 3P650253-11H – 2022.10... -
Page 12: To Perform Vacuum Drying
2 Open the front panel, and then the service cover. Refer to the Installer reference guide for opening procedure. For location of installer reference guide refer "1 About documentation" [ 4 4]. Installation manual ATXF20~42E5V1B Daikin room air conditioner 3P650253-11H – 2022.10... -
Page 13: Finishing The Indoor Unit Installation
4 Secure the indoor unit to the mounting plate using 2 indoor unit 2× fixing screws M4×12L (accessory). Drain hose Interconnection cable Mounting plate (accessory) Refrigerant piping Indoor unit fixing screw M4×12L (accessory) ATXF20~42E5V1B Installation manual Daikin room air conditioner 3P650253-11H – 2022.10... -
Page 14: Configuration
The specified wires are used for the interconnection cable. The indoor unit receives the signals of the user interface. There are NO loose connections or damaged electrical components in the switch box. Installation manual ATXF20~42E5V1B Daikin room air conditioner 3P650253-11H – 2022.10... -
Page 15: To Perform A Test Run
MUST comply with applicable legislation. Units MUST be treated at a specialised treatment facility for reuse, recycling and recovery. ATXF20~42E5V1B Installation manual Daikin room air conditioner 3P650253-11H – 2022.10... -
Page 16: Technical Data
▪ A subset of the latest technical data is available on the regional Harness Daikin website (publicly accessible). H*P, LED*, V*L Pilot lamp, light emitting diode ▪ The full set of latest technical data is available on the Daikin Light emitting diode (service Business Portal (authentication required). monitor green) HIGH VOLTAGE High voltage 12.1... - Page 17 Diode bridge, Insulated-gate bipolar transistor (IGBT) power module Wireless remote controller Terminal Terminal strip (block) Electronic expansion valve coil Y*R, Y*S Reversing solenoid valve coil Ferrite core ZF, Z*F Noise filter ATXF20~42E5V1B Installation manual Daikin room air conditioner 3P650253-11H – 2022.10...
