Instruction Sheet PN 128400, 20230822
WHIPPER MAINTENANCE INSTRUCTIONS
FOR CX TOUCH AND BISTRO SERIES
NEWCO ENTERPRISES INC,
3650 NEW TOWN BLVD SAINT CHARLES, MO 63301
1-800-325-7867
WARNING:
Unplug machine power and read through all instructions carefully before
servicing your machine.
DAILY CLEANING
A rinse of the whipper should be preformed multiple times a day.
Additionally, whenever the hoppers of the machine are put back into place
after removal, the machine display will prompt for a rinse cycle to be run.
Rinse cycle procedure:
1. Open the door to the brewer and place a cup under the dispense nozzle.
2. Press the RINSE button located to the side of the whipper.
3. Hold the RINSE button until the water dispensed from the nozzle runs clear.
4. Discard the water dispensed during the rinse cycle.

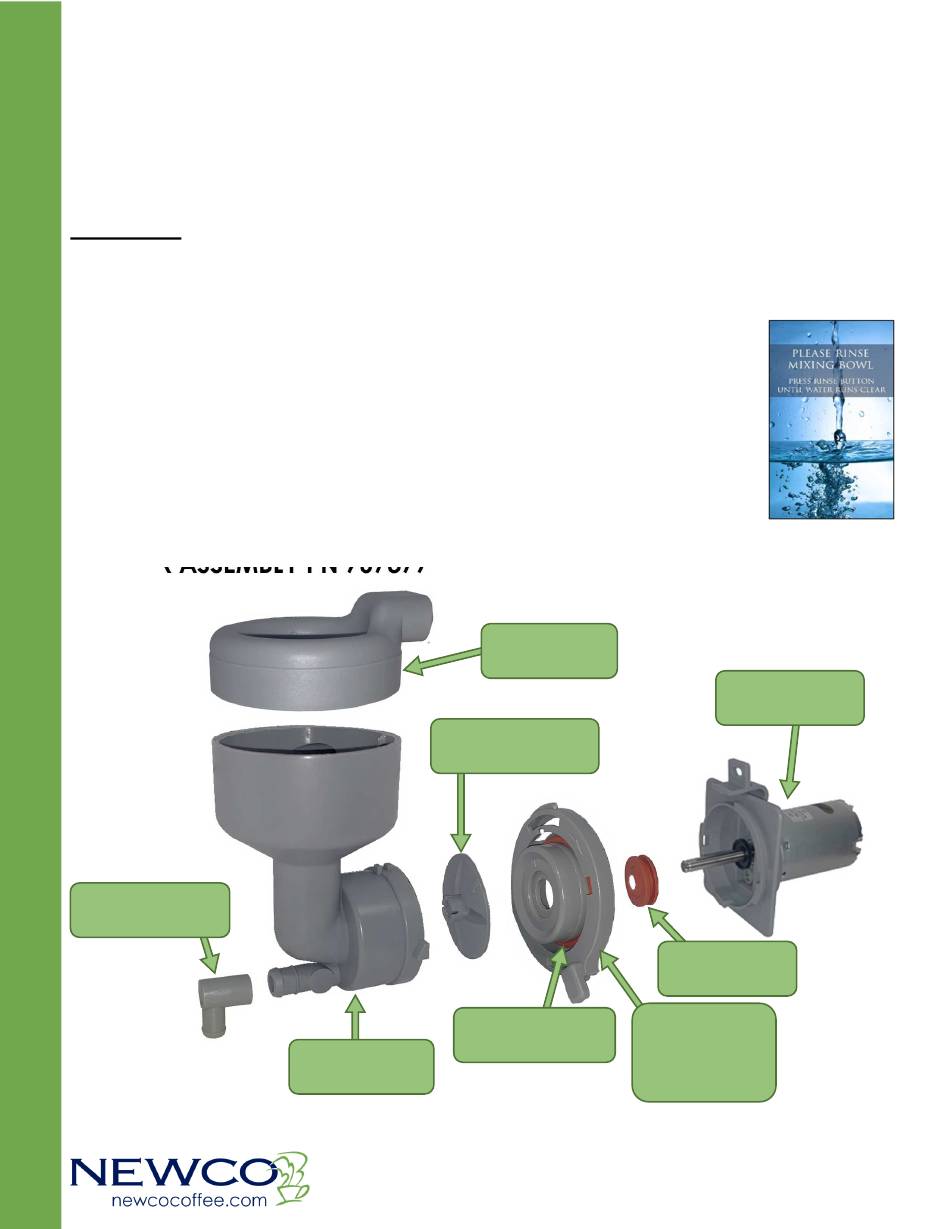

WHIPPER ASSEMBLY PN 767377
Whipper Cap
PN 767376
Whipper Motor
PN 767195
Whipper Impeller
PN 767197
Whipper Nozzle
PN 767200
Whipper Seal
PN 781566
Whipper Base
Whipper O-Ring
PN 767196
PN 767390
Whipper Bowl
Includes:
PN 767365
O-Ring & Seal
1
Technical Service: 1-800-556-3926
