Model SPA 509G Quick Start Guide

Advertisement

loading

Related Manuals for Cisco SPA509G

Summary of Contents for Cisco SPA509G

  • Page 1 Datavo ® Model SPA 509G Quick Start Guide...

  • Page 2: Installing Your Ip Phone

    PC. Step 7. (Optional) To install the phone on a vertical surface, use the Cisco MB100 Wall Mount bracket. See the Cisco Small Business IP Phone SPA 50X User Guide (SIP) or the Cisco Unified Communications Manager Express for the Cisco Small Business IP Phone SPA 50X documents on www.cisco.com...

  • Page 3: Phone Lines And Buttons

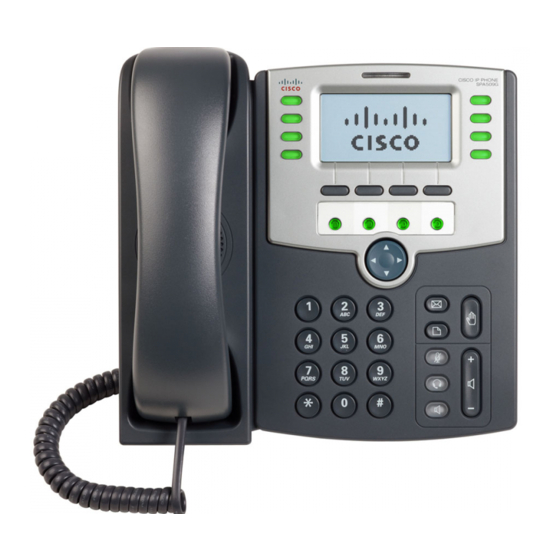

    ➋ Phone Lines and Buttons ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑭ ⑬ ⑫ Numbered objects in the photo are explained in the following table. Phone Feature Discription Handset Pick up to place or answer a call. Message Waiting Displays solid red when you have a new voice mail message.

  • Page 4: Softkey Buttons

    Phone Feature Discription Mute button Press to mute or unmute the phone. When phone is muted, the button glows red. A flashing mute button indicates the network connection cannot be found. Headset button Push to turn the headset on or off. When the headset is on, the button glows green. Volume button Press + to increase the volume and - to lower the volume of the handset, headset, speaker (when the handset is off the phone), or ringer volume (when the handset is on the phone).

  • Page 5: Using Your Ip Phone

    Phone Feature Discription Returns the last missed call by dialing the number that called you. missed calls Shows the Missed Calls list. more Displays other softkey buttons that are available. record Records the call in progress. redial Displays a list of recently dialed numbers. resume Resumes a call that is on hold.

  • Page 6: Using Keyboard Shortcuts

    ➎ Using Keyboard Shortcuts When using the phone menus, you can use the keypad to enter the number shown next to the menu or sub- menu item on the LCD screen. For example, to obtain your IP address, press the Setup button and dial 9. The IP address is displayed on the Network screen.
  • Page 7 Datavo ® Business Data & Voice Solutions 28001 Dorothy Drive, Agoura Hills, CA 91301 www.datavo.com...
