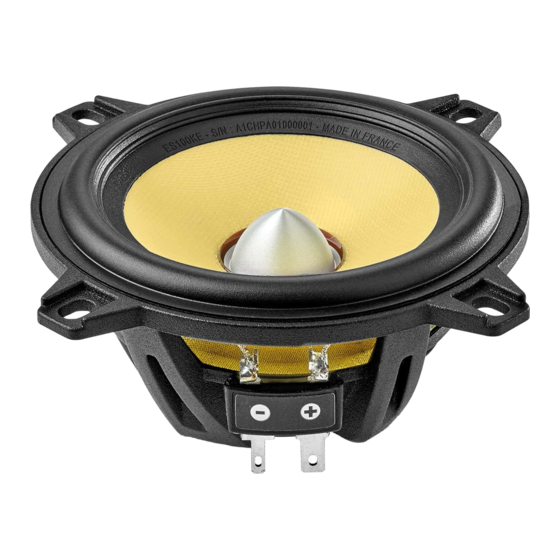

K2 POWER
ES 100 KE | EC 165 KE | ES 165 KE | ES 165 K2E
ES 165 KX2E | ES 165 KX3E | ES 165 K2S
SUB 25 KXS | SUB 30 KXE | SUB 25 KXE
Démarrage rapide / Quick Start
GO TO THE
USER MANUAL
https://www.focal.com/
usermanual/k2-power
Accédez à la notice d'utilisation
FR
Bedienungsanleitung lesen
DE
Acceda a las instrucciones de uso
ES
Accedi alle istruzioni per l'uso
IT
Ir para o manual do utilizador
PT
Ga naar de gebruiksaanwijzing
NL
Przejdź do instrukcji obsługi
PL
Перейти к инструкции по эксплуатации
RU
访问使用说明
ZH
사용설명서 보러가기
KO
取扱説明書を見る
JP
‫اذهب إلى دليل االستخدام‬
AR

Advertisement

loading

Related Manuals for Focal K2 POWER ES 100 KE

Summary of Contents for Focal K2 POWER ES 100 KE

  • Page 1 Acceda a las instrucciones de uso Accedi alle istruzioni per l’uso Ir para o manual do utilizador Ga naar de gebruiksaanwijzing Przejdź do instrukcji obsługi Перейти к инструкции по эксплуатации 访问使用说明 사용설명서 보러가기 取扱説明書を見る https://www.focal.com/ ‫اذهب إلى دليل االستخدام‬ usermanual/k2-power...
  • Page 2 HPFA1207 ES165KX3E MID HPFA1204 ES165K2E HPFA ES 100 KE HPFA1207 ES165KX3E MID 04 ES165K2E HPFA1201 EC165KE HPFA HPFA1208 SUB25KXE HPFA1205 ES165KX2E HPFA1210 SUB25KXS HPFA1202 ES100KE HPFA1208 SUB25KXE 5 ES165KX2E HPFA1209 SUB30KXE HPFA1211 ES165K2S HPFA1206 ES165KX3E HPFA1209 SUB30KXE HPFA1203 ES165KE HPFA1207 ES165KX3E MID HPFA1204 ES165K2E HPFA1201 EC165KE HPFA1206 ES165KX3E...
  • Page 3 HPFA1207 ES165KX3E MID HPFA1204 ES165K2E HPFA1207 ES165KX3E MID HPFA1201 EC165KE ES 165 K2S HPFA1210 SUB25KXS HPFA1208 SUB25KXE HPFA1205 ES165KX2E HPFA1202 ES100KE HPFA1208 SUB25KXE HPFA1211 ES165K2S HPFA1209 SUB30KXE HPFA1209 SUB30KXE HPFA1203 ES165KE HPFA1206 ES165KX3E HPFA1206 ES165KX3E HPFA1207 ES165KX3E MID HPFA1204 ES165K2E ES 165 K2E HPFA1208 SUB25KXE HPFA1205 ES165KX2E...
  • Page 4 EC 165 KE HPFA1207 ES165KX3E MID HPFA1201 EC165KE HPFA1210 SUB25KXS HPFA1202 ES100KE HPFA1208 SUB25KXE SUB 25 KXS SUB 25 KXE HPFA1211 ES165K2S HPFA1207 ES165KX3E MID HPFA1204 ES165K2E HPFA1201 EC165KE HPFA1209 SUB30KXE HPFA1203 ES165KE 1207 ES165KX3E MID HPFA1201 EC165KE HPFA1206 ES165KX3E HPFA1206 ES165KX3E HPFA1202 ES100KE HPFA1210 SUB25KXS...
  • Page 5 ES 100 KE / ES 165 KE / ES 165 K2S Woofer Sortie droite Entrée Tweeter Right output Input Woofer Tweeter Sortie gauche Entrée Left output Input ES 165 KX2E / ES 165 KX3E / ES 165 K2E Woofer Sortie droite Entrée Tweeter Right output...

  • Page 6: Speaker Output

    ES 165 KX2E Entrée RCA Sortie haut-parleur RCA input Speaker Output Gauche / Left Woofer INPUT OUTPUT Tweeter Droite / Right Woofer INPUT OUTPUT...
  • Page 7 ES 165 KX3E Woofer Médium/Midrange Sortie droite Entrée Tweeter Right output Input Woofer Sortie gauche Entrée Input Left output Médium/Midrange Tweeter...
  • Page 8 Woofer Entrée RCA Sortie haut-parleur RCA input Speaker Output Gauche / Left Médium/ Midrange Tweeter Woofer Droite / Right Médium/ Midrange Tweeter...
  • Page 9 ES 165 KX2E / ES 165 KX3E | TWEETER FRAK ES 100 KE / ES 165 KE / ES 165 K2E / ES 165 K2S | TWEETER TKME...
  • Page 10 ES 100 KE Réglage du woofer (Passe-haut ou "Full") Réglage du niveau du tweeter Woofer high pass / Tweeter level adjustment full adjustment Full Full 12 dB 12 dB Full 12 dB ES 165 KE 6 dB 12 dB Pente de coupure du woofer Réglage du niveau du tweeter Woofer low pass slope Tweeter level adjustment...
  • Page 11 ES 165 K2S 6 dB 12 dB Pente de coupure du woofer Réglage du niveau du tweeter Woofer low pass slope Tweeter level adjustment -3 dB 6 dB 12 dB KIFI1131_crossover_ES 165 K2S -3 dB...
  • Page 12 ES 165 K2E Réglage du tweeter Tweeter adjustment Pente de coupure du woofer (1=High treble) Woofer low pass slope 6 dB 12 dB 6 dB 6 dB 12 dB 12 dB 6 dB 12 dB Pente de coupure du woofer Woofer low pass slope -3 dB -3 dB...
  • Page 13 ES 165 KX3E Réglage du tweeter Réglage du niveau Réglage du passe- (1=Extrême aigu) tweeter haut médium Tweeter adjustment Tweeter level Midrange high pass (1=High treble) adjustment adjustment Réglage du niveau du médium Pente de coupure du woofer Midrange level adjustment Woofer low pass slope EC 165 KE HPFA1207 ES165KX3E MID...
  • Page 14 SUB 25 KXS / SUB 25 KXE / SUB 30 KXE...
  • Page 15 Conditions of warranty All Focal loudspeakers are covered by warranty drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of warranty. Warranty cover extends at least to that granted by the legal warranty...

  • Page 16: Register Your Product Online

    Focal-JMlab - BP 374 - 108, rue de l'Avenir - 42353 La Talaudière cedex - France - www.focal.com ® Tel. (+33) 04 77 43 57 00 - Fax (+33) 04 77 43 57 04 - SCCG - 09/02/2023 - v3 - CODO1712...
  • Page 17 K2 POWER ES 100 KE | EC 165 KE | ES 165 KE | ES 165 K2E ES 165 KX2E | ES 165 KX3E | ES 165 K2S SUB 25 KXS | SUB 30 KXE | SUB 25 KXE Manuel d’utilisation / User Manual / Gebrauchsanleitung / Manuale d’uso / Manual de uso / Manual de utilização / Handleiding / Instrukcja obsługi / Руководство...
  • Page 18 K2 POWER M a n u e l d ’ u t i l i s a t i o n / U s e r m a n u a l HPFA1207 ES165KX3E MID HPFA1204 ES165K2E HPFA HPFA1207 ES165KX3E MID ES 100 KE 04 ES165K2E HPFA1201 EC165KE...
  • Page 19 K2 POWER M a n u e l d ’ u t i l i s a t i o n / U s e r m a n u a l HPFA1207 ES165KX3E MID HPFA1204 ES165K2E HPFA1207 ES165KX3E MID HPFA1201 EC165KE HPFA1210 SUB25KXS ES 165 K2S...
  • Page 20 K2 POWER M a n u e l d ’ u t i l i s a t i o n / U s e r m a n u a l EC 165 KE HPFA1207 ES165KX3E MID HPFA1201 EC165KE HPFA1210 SUB25KXS HPFA1202 ES100KE HPFA1208 SUB25KXE...
  • Page 21 K2 POWER M a n u e l d ’ u t i l i s a t i o n / U s e r m a n u a l ES 100 KE / ES 165 KE / ES 165 K2S Woofer Sortie droite Entrée...

  • Page 22: Speaker Output

    K2 POWER M a n u e l d ’ u t i l i s a t i o n / U s e r m a n u a l ES 165 K2E Entrée RCA Sortie haut-parleur RCA input Speaker Output Gauche / Left Woofer...
  • Page 23 K2 POWER M a n u e l d ’ u t i l i s a t i o n / U s e r m a n u a l ES 165 KX3E Woofer Médium/Midrange Sortie droite Entrée Tweeter Right output Input...
  • Page 24 K2 POWER M a n u e l d ’ u t i l i s a t i o n / U s e r m a n u a l Entrée RCA Sortie haut-parleur RCA input Woofer Speaker Output Gauche / Left Médium/Midrange Tweeter...
  • Page 25 K2 POWER M a n u e l d ’ u t i l i s a t i o n / U s e r m a n u a l ES 165 KX2E / ES 165 KX3E | TWEETER FRAK ES 100 KE / ES 165 KE / ES 165 K2E / ES 165 K2S | TWEETER TKME...
  • Page 26 K2 POWER M a n u e l d ’ u t i l i s a t i o n / U s e r m a n u a l ES 100 KE Réglage du woofer (Passe-haut ou "Full") Réglage du niveau du tweeter Woofer high pass / Tweeter level adjustment...
  • Page 27 K2 POWER M a n u e l d ’ u t i l i s a t i o n / U s e r m a n u a l 6 dB 12 dB ES 165 K2S Pente de coupure du woofer Réglage du niveau du tweeter Woofer low pass slope Tweeter level adjustment...
  • Page 28 K2 POWER M a n u e l d ’ u t i l i s a t i o n / U s e r m a n u a l ES 165 K2E Réglage du tweeter Pente de coupure du woofer Woofer low pass slope Tweeter adjustment 6 dB...
  • Page 29 K2 POWER M a n u e l d ’ u t i l i s a t i o n / U s e r m a n u a l ES 165 KX3E Réglage du tweeter Réglage du niveau Réglage du passe- (1=Extrême aigu) tweeter...
  • Page 30 K2 POWER M a n u e l d ’ u t i l i s a t i o n / U s e r m a n u a l SUB 25 KXS / SUB 25 KXE / SUB 30 KXE...
  • Page 31 K2 POWER C a r a c t é r i s t i q u e s / S p e c i f i c a t i o n s ES 100 KE Membrane K2 Sandwich Médium 100 mm Puissance max.
  • Page 32 K2 POWER C a r a c t é r i s t i q u e s / S p e c i f i c a t i o n s ES 165 KE Membrane K2 Sandwich Woofer 165 mm Puissance max.
  • Page 33 K2 POWER C a r a c t é r i s t i q u e s / S p e c i f i c a t i o n s ES 165 K2E Membrane K2 Sandwich Woofer 165 mm Puissance max.
  • Page 34 K2 POWER C a r a c t é r i s t i q u e s / S p e c i f i c a t i o n s ES 165 KX3E (Woofer) ES 165 KX3E (Médium) Membrane K2 Sandwich K2 Sandwich...
  • Page 35 K2 POWER C a r a c t é r i s t i q u e s / S p e c i f i c a t i o n s EC 165 KE Membrane K2 Sandwich Woofer 165 mm Puissance max.
  • Page 36 K2 POWER C a r a c t é r i s t i q u e s / S p e c i f i c a t i o n s ES 165 KX2E Membrane K2 Sandwich Woofer 165 mm Puissance max.
  • Page 37 K2 POWER C a r a c t é r i s t i q u e s / S p e c i f i c a t i o n s ES 165 K2S Membrane K2 Sandwich Woofer 165 mm Puissance max.
  • Page 38 K2 POWER C a r a c t é r i s t i q u e s / S p e c i f i c a t i o n s SUB 25 KXE Membrane K2 Sandwich Subwoofer 250 mm Puissance max.
  • Page 39 K2 POWER C a r a c t é r i s t i q u e s / S p e c i f i c a t i o n s SUB 25 KXS Membrane K2 Sandwich Subwoofer 250 mm Puissance max.
  • Page 40 K2 POWER C a r a c t é r i s t i q u e s / S p e c i f i c a t i o n s SUB 30 KXE Membrane K2 Sandwich Subwoofer 300 mm Puissance max.
  • Page 41 Focal is therefore not liable in any capacity whatsoever in the event of incident, accident and/or any other result or damage of any kind related to the installation of loudspeakers.
  • Page 42 For the purposes of improvement or to take into account any legal or regulatory changes, FOCAL-JMLab reserves the right to modify the technical specifications of its products without prior notice. Where required, any images shown are for illustrative purposes only,...
  • Page 43 Warranty terms and conditions All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal...
  • Page 44 K2 POWER Élimination correcte de ce produit. Ce marquage indique qu’au sein de l’UE, ce produit ne doit pas être jeté avec les autres déchets ménagers. Afin d’éviter tout risque pour l’environnement ou la santé humaine, le recycler de manière responsable pour encoura- ger la réutilisation des ressources matérielles.
  • Page 45 Scan QR code for information on packaging disposal Focal-JMlab® - BP 374 - 108, rue de l'Avenir - 42353 La Talaudière cedex - France - www.focal.com Tel. (+33) 04 77 43 57 00 - SCLC - 30/10/2023 - v1...
  • Page 47 Designed, manufactured and developed in our workshops in France, the 2-way component kit ES 165 KX2E also features the FRAK tweeter, an exclusive Focal technology that lies behind sensational treble. The listening experience is marked by unparalleled harmonic balance.

  • Page 48: Specifications

    0.55 0.61 4 N/A 128.6cm 89.5dB 1000 10000 Xmax 5.3mm Frequency response - 0° Frequency response - 30° Impedance MECHANICAL DRAWING (MM) 56.2 142.1 Focal is a trademark of Focal-JMLab - www.focal.com - SCLC - 02/10/2023 - v1 ® ®...

This manual is also suitable for:

K2 power ec 165 keK2 power es 165 keK2 power es 165 k2eK2 power es 165 kx2eK2 power es 165 kx3eK2 power es 165 k2s ... Show all
