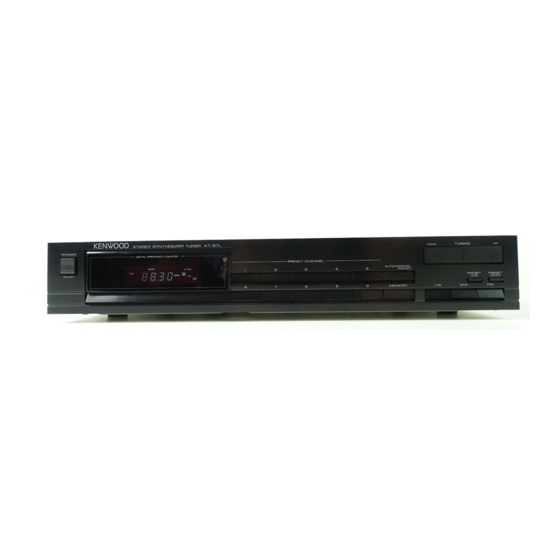

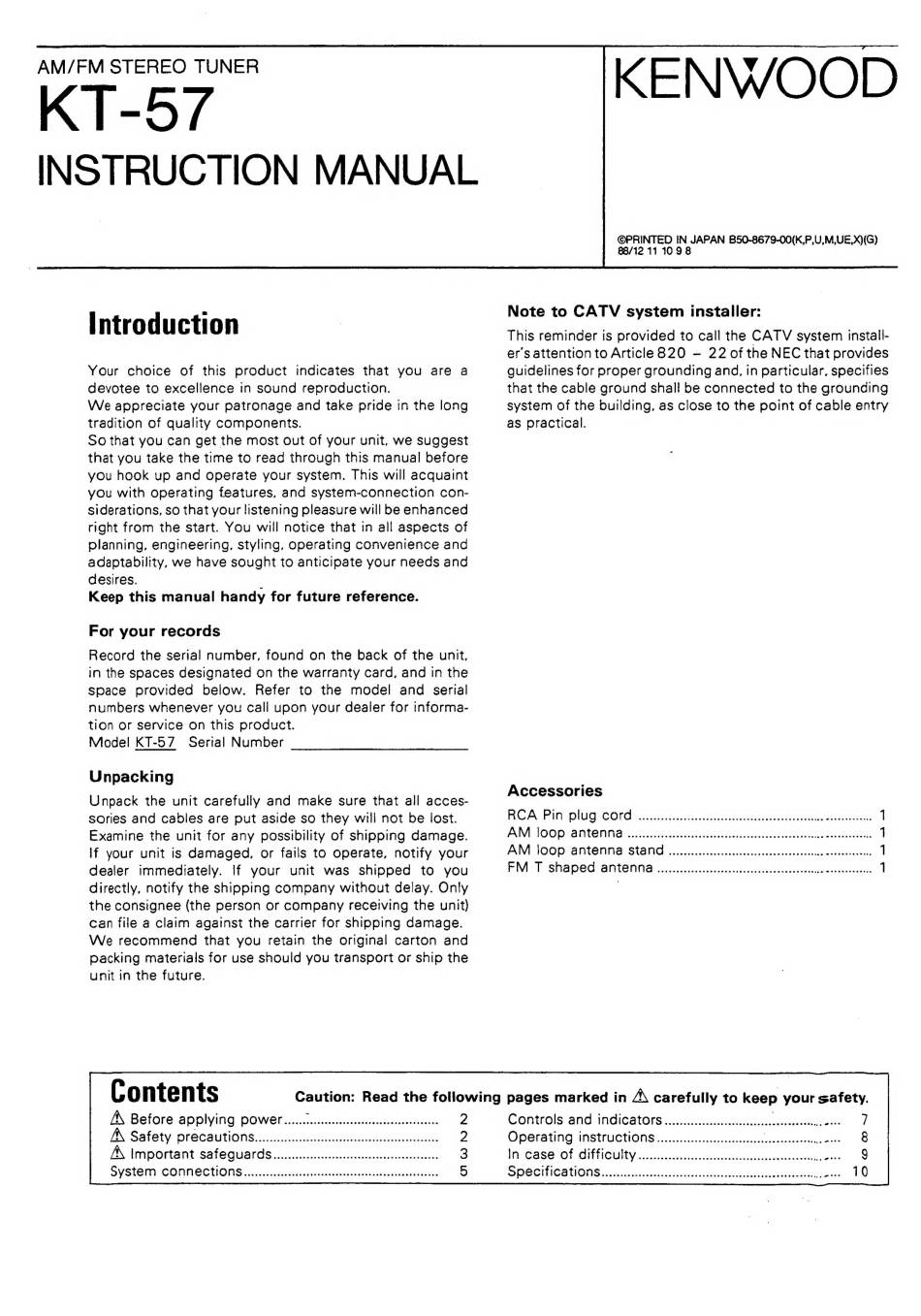

Kenwood KT-57 Instruction Manual

AM/FM STEREO TUNER
KT-57
INSTRUCTION MANUAL
KENWOOD
Introduction
Your choice of this product indicates that you are a
devotee to excellence in sound reproduction.
We appreciate your patronage and take pride in the long
tradition of quality components.
So that you can get the most out of your unit, we suggest
that you take the time to read through this manual before
you hook up and operate your system. This will acquaint
you with operating features, and system-connection con-
siderations, so that your listening pleasure will be enhanced
right from the start. You will notice that in all aspects of
planning, engineering, styling, operating convenience and
adaptability, we have sought to anticipate your needs and
desires.
Keep this manual handy for future reference.
For your records
Record the serial number, found on the back of the unit,
in the spaces designated on the warranty card, and in the
space provided below. Refer to the model and serial
numbers whenever you call upon your dealer for informa-
tion or service on this product.
Model KT-57 Sertal Number
Unpacking
Unpack the unit carefully and make sure that all acces-
sories and cables are put aside so they will not be lost.
Examine the unit for any possibility of shipping damage.
If your unit is damaged, or fails to operate, notify your
dealer immediately. If your unit was shipped to you
directly, notify the shipping company without delay. Only
the consignee (the person or company receiving the unit)
can file a claim against the carrier for shipping damage.
We recommend that you retain the original carton and
packing materials for use should you transport or ship the
unit in the future.
Contents
A\ Before applying power
A\ Safety precautions
A\ Important safeguards
©PRINTED IN JAPAN B50-8679-00(K,P,U,M,UE,X}(G)
88/12 111098
Note to CATV system installer:
This reminder is provided to call the CATV system install-
er's attention to Article 820 — 22 of the NEC that provides
guidelines for proper grounding and, in particular, specifies
that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry
as practical.
Accessories
RCA: Pins luG COPD sictiadsucecusstattairesverttiaseresictatadoonnnGen 1
AM NOOR AR TER Na oii siete cece arctica een acl ace taes 1
AN) JOOD -EMtGnna. Stang =iccscei bes ceccce lictetiohiecuereceniinitestineen 1
FIV) SHADEO -ANtOONS escco acess ecescetss carrera cneneeniiiecsnadeimeeas 1
Caution: Read the following pages marked in A\ carefully to keep your safety.
Controls and indicators
Operating instructions
In case of difficulty
System connections
Specifications
