Ibanez PENTATONE EQUALIZER Owner's Manual

OWNER'S MANUAL
Before using this device, be sure to read this manual thoroughly for safe use of it.
After that, keep this manual in a safe place and read it whenever necessary.
Safety Precautions === Be sure to observe the following precautions ===
In order to use this device properly, the contents to be observed are explained,
classified as follows.
 The severities of the injury and damage due to incorrect usage by ignoring
the written contents are explained by the following classified indications.
Indicates a potentially hazardous situation which, if not avoided,
Warnings
will result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
Cautions
will result in injury or property damage.
  T he contents to be observed are explained, being classified by the following
pictograms.
...This pictogram shows a compulsory action, something that you must do.
...This pictogram shows a prohibition, something that you must not do.
...This pictogram shows a notice, something that you need to be alerted to.
Warnings
Never disassemble or modify the device.
In case of an abnormality such as smoke, burning smell or abnormal
sound, immediately stop using the device.
Immediately unplug the AC adapter from the outlet.
Do not operate with wet hands.
<<A short circuit or an electric shock may occur.>>
Cautions
Be sure to use the specified AC adapter.
<<Using an unspecified AC adapter may cause a fire or an electric shock.>>
Do not store or use the device in places such as a bath or outdoors
where water splashes. Also do not use it in places of high humidity,
places with a lot of dust, or at high temperatures.
<<A fire, an electric shock or a failure may occur.>>
Do not store in places of excessive vibrations. <<It may cause a failure.>>
When not in use for a long time, be sure to unplug the AC adapter from
the outlet for safety. <<A fire may occur.>>
Do not apply excess force, drop nor give strong physical impact.
<<A failure or injury may occur.>>
Do not use thinner, alcohol, and the l ke for cleaning.
<<It may cause a failure.>>
= = = = Observe the following instructions with a product that uses a battery = = = =
Warnings
Do not throw a battery into a fire.
<<A burst, heat generation and a fire may occur.>>
Cautions
Mount a battery with its polarities +/- set correctly.
<<It may cause a failure.>>
Remove the battery when not in use for a long time.
<<Liquid leak may cause a failure.>>
HOSHINO GAKKI CO., LTD.
No.22, 3-Chome, Shumoku-Cho,
Higashi-Ku, Nagoya, Aichi, JAPAN
ENGLISH
SPECIFICATIONS
Input Impedance 470k ohms
Output Impedance 100 ohms
Maximum Output Level +15.3 dBu
One 9 volt battery (006P) or
Power Supply
external AC adapter (Use DC9V
Required Current 125 mA@9V
Size [mm] 100 (W) x 123 (D) x 63 (H)
Size [inch] 3.9 (W) x 4.8 (D) x 2.5 (H)
Weight 690g, 1.5lbs (Including Battery)
CHANGING THE BATTERY
Figure A
●
Replace the battery with a 006P 9 volt battery ONLY.
●
When opening the rear panel for battery replacement, make sure the AC
adapter is not connected. When the rear panel is opened, PCB (green
board on which parts are soldered) appears. Do not touch this board with
a conductor such as metal or it may cause damage to the equipment or
electric shock.
1. Remove the four screws of the rear panel with a Phillips-head
screwdriver.
2. Connect the new battery and place it in the case. (See Figure A)
●
Unplug the instrument when not in use to prolong the battery life.
●
When battery power is running low, LEDs on the top panel gets dim or
does not light. Replace the battery.
● DEUTSCH / BEDIENUNGSANLEITUNG
● FRANÇAIS / MANUEL DE L'UTILISATEUR
● ESPAÑOL / MANUAL DEL USUARIO
● ITALIANO / MANUALE D'ISTRUZIONI
● NEDERLANDS / GEBRUIKERSHANDLEIDING
● РУССКИЙ / РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
● POLSKI / INSTRUKCJA OBSŁUGI
● PORTUGUÊS / MANUAL DO PROPRIETÁRIO
https://www.ibanez.com/world/support/manual/

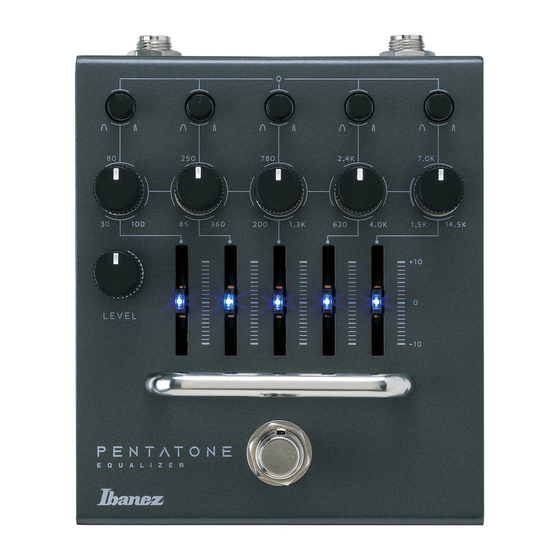

TOP PANEL
)
REAR PANEL
● ENGLISH / OWNER'S MANUAL
日本語 取扱説明書
●
/
http://www.hoshinogakki.co.jp/pdf/ibanez/
manual/en/electronics/PTEQ.pdf
● 中国语 用户手册
/
http://www.hoshinogakki.co.jp/pdf/ibanez/
manual/cn/electronics/PTEQ.pdf
OPERATION
On/off switch: Turns the 5-BAND EQ function on/off.
When the 5-BAND EQ is turned on, blue LEDs on the
sliders light up.
Q: The Q knob controls the frequency bandwidth
boosted or cut by the equalizer in each band. Centered
on the selected frequency, turning the Q knob fully
counterclockwise gets the widest bandwidth, and turning
it fully clockwise gets the narrowest bandwidth.
Frequency: Selects the center frequency of each band
to be boosted or cut. Regarding the frequency range of
each band, refer to the specification table.
Slider: Controls the amount of boost or cut that applied
to each frequency band. Each slider provides boost or
cut up to ±10dB.
LEVEL: Controls the overall output volume.
INPUT: Connects an instrument, such as a guitar or
the output of another effect device via a shielded cable.
Plugging into this jack automatically puts power to the unit.
EXT DC input: Be sure to use a center negative external
DC 9V power supply. (AC/DC adapter etc.)
When using this jack, the internal battery is switched off.
OUTPUT: Connects an amp or another effect pedal,
via a shielded cable.
SPECIFICATIONS OF 5-BAND EQ
