The following are trademarks registered by W.C. Bradley Co. in the U.S. Patent and Trademark Office: Caldera®; Charcoal2Go®; Char-Broil®; America's Legendary

Barbeque Company®; American Gourmet®; Bandera®; Brush Hawg®; CB 940®; Char-Diamonds®; Char-Broil Charcoal/Gas®; Everybody Grills®; Everybody

Outside®; FastStart®; Grill 2 Go®; Grill 2 Go® Express®; Grill Lovers®; Infrared Grilling That's All About U®; Keepers of the Flame®; New Braunfels Smoker

Company®; Patio Bistro®; Patio Caddie®; Patio Kitchen®; Pro-Sear®; RED®; Quantum®; Santa Fe®; Sear and Grill®; Sierra®; Signature Series®; Sure2Burn®;

The Big Easy®; Trentino®; U®; Wild West Tradition®; and the following marks:

The following are trademarks of W.C. Bradley Co.: Advantage Series™; Auto-Clean™;Chef Tested™; Commercial Series™; Designer Series™;; Diamond Flame™;

Double Chef™; Fireball™; Firenzy™; FlavorMaster™;Front Avenue™; Grill 2 Go® Advantage™; Hog and Yard Bird™; H20 Smoker™; Infrared. Grilling's Juicy Little

Secret™; Incredible Taste. Infallible Results™; Infrared Inside™; Insure™; Let's Grill Something Together™; Lev-Alert™; Longhorn™; Magneto™; Precision

Flame™; Quick2Burn™; QuickSet™; Ready When You Are™; Season, Set, And Savor™; Sizzle On The Grill™; Signature Series™; SureFire™; The Minute

Grill™;Torchfork™; Universal Grill Parts™; You Bring the Party™

Protected under one or more of the following U.S. Patents: 5,421,319; 5,458,309; 5,579,755; 5,996,573; 6,135,104; 6,279,566; 6,331,108; 6,484,900; 6,526,876; 6,595,197; 6,640,799; 6,640,803; 6,729,873; 6,739,473; 6,749,424; 6,792,935; 6,951,213; 7,047,590;

7,516,693; D364,535; D372,637; D373,701; D377,735; D383,035; D397,910; D405,643; D406,005; D406,009 ; D413,043; D413,229; D414,982; D415,388; D416,164; D416,441; D417,587; D417,588; D422,516; D423,274; D423,876; D428,303; D430,772; D435,396;

D436,004; D438,059; D438,060; D438,427; D439,110; D442,505; D443,179; D443,354; D443,464; D447,384; D447,385; D447,909; D448,610; D448,614; D448,615; D448,616; D448,975; D449,492; D450,544; D451,759; D454,028; D454,031; D455,205; D455,206;

D456,202; D456,222; D456,223; D457,789; D458,520; D458,760; D458,802; D459,088; D459,148 D459,149; D459,161; D459,163; D459,586; D459,943; D460,312; D460,313; D460,318; D461,359; D465,123; D465,693; D466,307; D466,439; D466,752; D473,414;

D474,371; D477,498; D477,501; D477,504; D477,506; D477,746; D478,471; D478,472; D480,914; D491,410; D494,009; D494,413; D498,523; D500,359; D504,048; D530,098; D535,000; Canada:D97,504;D99,355; D102,037; D104,200;D108,377; 2,315,567;

TEC™ is a trademark of Tec Infrared Grills.

Printed in China

PRODUCT GUIDE

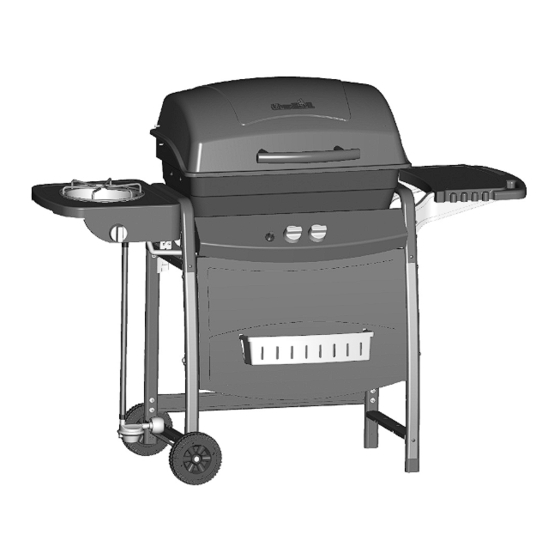

MODEL 463720910

IMPORTANT: Fill out the product record information below.

Serial Number

See rating label on grill for serial number.

Date Purchased

For support and to register your

grill, please visit us at

www.charbroil.com

If you have questions or need

assistance during assembly,

please call 1-800-241-7548.

Estimated assembly time: 35-40 minutes

12/01/09 • G305-001-190803

Table of Contents

Summary of Contents for Char-Broil 463720910

Page 1 Estimated assembly time: 35-40 minutes The following are trademarks registered by W.C. Bradley Co. in the U.S. Patent and Trademark Office: Caldera®; Charcoal2Go®; Char-Broil®; America's Legendary Barbeque Company®; American Gourmet®; Bandera®; Brush Hawg®; CB 940®; Char-Diamonds®; Char-Broil Charcoal/Gas®; Everybody Grills®; Everybody Outside®;...
Page 2: Table Of Contents
TABLE OF CONTENTS DANGER For Your Safety ........2-3 If you smell gas: Grilling Guide.
Page 3 WARNING CAUTION CALIFORNIA PROPOSITION 65 Using pots larger than 6 quarts in capacity could exceed weight limit of the 1. Combustion by-products produced when using this product contain chemicals known to the State of side burner shelf California to cause cancer, birth defects, and other or side shelf, reproductive harm.
Page 4: Grilling Guide
GRILLING GUIDE – Getting Started Temperature The temperature gauge in the hood of your new grill measures air temperature. The air temperature inside your grill will never First Time Use be as hot as the temperature at the cooking surface. Read your Assembly Manual and ensure the grill is put together properly.
Page 5 Rotisserie Cooking GRILLING GUIDE – Grilling 101 Rotisserie cooking is best for 'round' meat, such as large roasts, whole poultry, and pork. It generally requires an accessory motor Outdoor grilling is really quite simple. You'll succeed with and spit rod that allows the meat to be turned at a constant burgers, dogs, or steaks usually on your very first try.
Page 6 Wood Chips GRILLING GUIDE – Tips & Tricks For extra smoke flavor when grilling, try adding wood chips. Cooking on your new grill is a hands-on experience, and it is Soak the chips in water for approximately 30 minutes before recommended to remain outside with your grill while cooking.
Page 7 Cooking surfaces: If a bristle brush is used to clean any of the GRILLING GUIDE – Cleaning Your Grill grill cooking surfaces, ensure no loose bristles remain on cooking Why Clean? surfaces prior to grilling. It is not recommended to clean cooking surfaces while grill is hot.
Page 8: Use And Care
LP Cylinder USE AND CARE •The LP cylinder used with your grill must meet the following requirements: DANGER •Use LP cylinders only with these required measurements: 12" (30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.) capacity maximum. •...
Page 9 LP Cylinder Exchange Connecting Regulator to the LP Cylinder •Many retailers that sell grills offer you the option of replacing 1.LP cylinder must be properly secured onto grill. (Refer to your empty LP cylinder through an exchange service. Use only assembly section.) those reputable exchange companies that inspect, precision fill, 2.Turn all control knobs to the OFF position.
Page 10 Leak Testing Valves, Hose and Regulator 1.Turn all grill control knobs to OFF. 2.Be sure regulator is tightly connected to LP cylinder. 3.Completely open LP cylinder valve by turning hand wheel counterclockwise. If you hear a rushing sound, turn gas off immediately.
Page 11 Only use the pressure regulator and hose assembly supplied with this grill. Replacement pressure regulator and hose assemblies must be specified or supplied by Char-Broil, LLC. If you have a grill problem see the "Troubleshooting Section". If the regulator frosts, turn off grill and LP cylinder valve immediately.
Page 12 Ignitor Lighting Sideburner Match Lighting Do not lean over grill while lighting. Turn ON gas at LP cylinder. 2. Hold lit match to any port on the burner. Push in and turn Turn OFF gas burner control valves. Turn ON gas at LP cylinder. sideburner knob to the HI position.
Page 13 • Plated wire grates: Wash grates with concentrated grill Cleaning the Burner Assembly cleaner or use soap and water solution. Dry thoroughly and Follow these instructions to clean and/or replace parts of burner store indoors between cookouts. assembly or if you have trouble igniting grill. •...
Page 14: Limited Warranty
LIMITED WARRANTY This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the original consumer-purchaser only that this product shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase*.
Page 15: Parts List
PARTS LIST Key Qty Description Key Qty Description 1 FIREBOX 3 KNOB 1 IGNITOR 2 LOWER HINGE 1 BURNER 2 UPPER HINGE 1 COLLECTOR/ ELECTRODE ASSY 1 HANDLE 1 LID 1 GREASE CUP 1 LOGO PLATE 1 GREASE CUP CLIP 1 LEFT SIDE SHELF F/ SB 1 HEAT TENT 1 MATCH HOLDER...
Page 16: Parts Diagram
PARTS DIAGRAM...
Page 17: Assembly
ASSEMBLY Left leg Place upper leg as shown. NOTE: Left front and left back legs do not have leg extenders. In front, attach upper leg, side brace and left front leg (curve) with #10-24x1-1/4’’ machine screw and #10-24 flange nut. In back, attached the left back leg (straight) to upper leg.
Page 18 Front Panel Lay front legs down on the floor Slide front panel between legs. Attach with #10-24x2’’ machine screws and #10-24 flange nuts. Left leg assembly #10-24x2” #10-24 Machine Screw Flange Nut Qty.4 Right leg assembly #10-24x2” Machine Screw Qty.4 Front panel Back Braces to Cart Attach back braces with #10-24x1-1/4’’...
Page 19 Hook tank exclusion wires onto front panel brackets, attach other end to back brace with #8-32x3/8’’ sheet metal screws. #8-32x3/8’’ Sheet Metal Screw Qty.3 Wheel Turn assembly upside down. Insert axle rod into wheel, legs and other wheel. Attach with a wheel bushing and hitch pin. Attach all in second hole. Hitch Pin Qty.1 Wheel...
Page 20 Control Panel and Firebox Supports Stand cart upright. In front, slide control panel between left and right legs, attach control panel with #10-24x2’’ machine screws. Place firebox supports onto screws and tighten with #10-24 flange nuts. Tighten all screws. In back, attach upper firebox support with #10-24x2’’ machine screws and #10-24 flange nuts. Chamfer edge Control Panel Firebox...
Page 21 Heat Shield Attach heat shield with #10-24x1/2’’ machine screws and #10-24 flange nuts. Heat Shield #10-24X1/2” Machine Screw Qty.2 #10-24 Flange Nut Qty.2 Tank Retainer Insert tank retainer into side brace and secure with #10-24x3/8’’ wing screw. #10-24x3/8’’ Wing Screw Qty.1 Wing screw Shiel...
Page 22 Burner and Firebox and Control Knobs Place burner assembly into firebox. Fasten the burner assembly to the firebox using 5x15 fiber washers and #10- 24x1/2’’ machine screws. Insert two #10-24x1-1/4’’ machine screws from outer firebox, then fasten with two #10-24 flange nuts and 5x15 fiber washers from inner.
Page 23 Shelves Attach mounting brackets to shelf support with side shelf bushing and #8-32x3/8’’ sheet metal screws (A). Insert mounting bracket into sideburner shelf support, secure with #10-24x1/2’’ machine screws (B). Attach mounting brackets to front of leg with 1/4’’-20x1/2’’ machine screws. Back of leg with 1/4’’-20x1-1/4’’ machine screws and 1/4’’-20 flange nuts ( C ).
Page 24 Sideburner Attach sideburner valve with #8-32x3/8’’ machine screws. Attach sideburner pan with #8-32x3/8’’ sheet metal screws and 5x9 fiber washer (A). Place sideburner into shelf (B). Make sure valve is inside sideburner tube. Attach sideburner with a wing nut. Hook Sideburner clip to sideburner tube and around manifold.
Page 25 Lower Hinges Attach lower hinges to back of firebox using #10-24x1/2’’ machine screws, 5x15 fiber washers and #10-24 flange nuts. The center flat portion of the hinge should be at the bottom (see inset). Lower Hinge #10-24x1/2” #10-24 5x15 Machine Screw Flange Nut Fiber Washer Qty.4...
Page 26 Place lid assembly onto firebox, aligning hinges. Hinges on lid fit inside hinges on firebox. Secure using two hinge pins and hitch pins. Tighten upper hinge screws. NOTE: Tighten the hinges screws after installing the hinge pins. Hitch Pin Hinge Pin Qty.2 Qty.2 Heat Tent...
Page 27 Swing Away Insert ends of Swing Away pivot wire into holes in sides of grill lid. Insert ends of Swing Away leg wire into holes in sides of firebox. NOTE: Pivot and leg wires, running side-to-side, should be under wires running front-to-back. If pivot and leg wires are on top, swing away is installed upside-down.
Page 28: Troubleshooting
EMERGENCIES: If a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department. Emergencies Possible Cause Prevention/Solution Gas leaking from • Damaged hose. • Turn off gas at LP cylinder or at source on natural gas systems. If cracked/cut/burned anything but burned, replace valve/hose/regulator.
Page 29 Troubleshooting (continued) Problem Possible Cause Prevention/Solution Burner(s) will not light ELECTRONIC IGNITION: using ignitor. • No spark, no ignition noise. • See Section I of Electronic Ignition System. (See Electronic Ignition Troubleshooting also) • No spark, some ignition noise. • See Section II of Electronic Ignition System. •...
Page 30 NOTES...
Page 31: Registration Card
Warranty Registration Department P.O. Box 1240 Columbus, GA 31902-1240...
