WF8624FG(A/C/D/F/G/H/R/S/T/V/W/Z)
WF8622FG(A/C/D/F/G/H/R/S/T/V/W/Z)
WF8620FG(A/C/D/F/G/H/R/S/T/V/W/Z)
WF8502FG(A/C/D/F/G/H/R/S/T/V/W/Z)
WF8500FG(A/C/D/F/G/H/R/S/T/V/W/Z)
WF8508FG(A/C/D/F/G/H/R/S/T/V/W/Z)
WF8624AG(A/C/D/F/G/H/R/S/T/V/W/Z)
WF8622AG(A/C/D/F/G/H/R/S/T/V/W/Z)
WF8620AG(A/C/D/F/G/H/R/S/T/V/W/Z)
Washing Machine

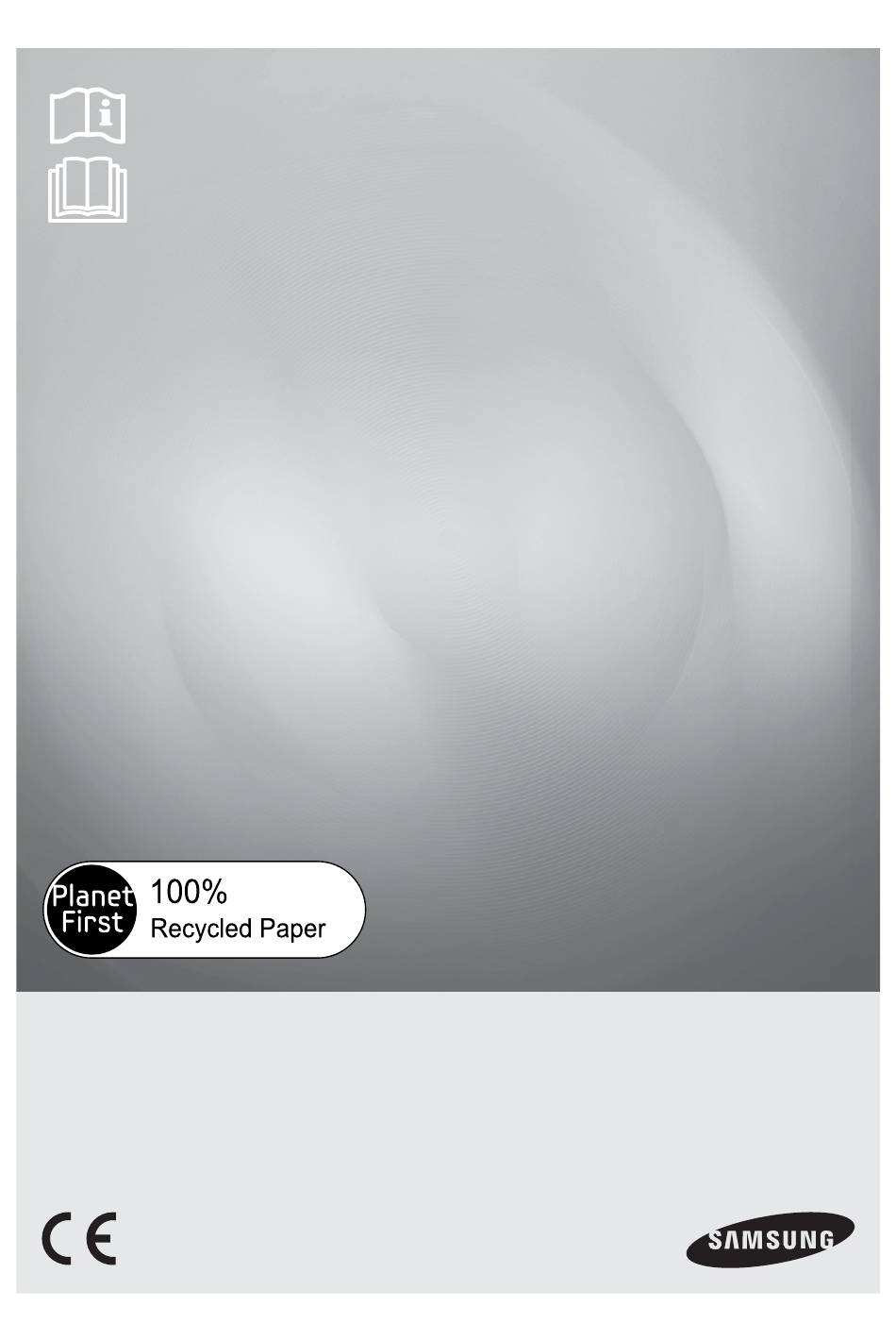

This manual is made with 100% recycled paper.
user manual
imagine
the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
WF8502AG(A/C/D/F/G/H/R/S/T/V/W/Z)
WF8500AG(A/C/D/F/G/H/R/S/T/V/W/Z)
WF8508AG(A/C/D/F/G/H/R/S/T/V/W/Z)
WF8624NG(A/C/D/F/G/H/R/S/T/V/W/Z)
WF8622NG(A/C/D/F/G/H/R/S/T/V/W/Z)
WF8620NG(A/C/D/F/G/H/R/S/T/V/W/Z)
WF8502NG(A/C/D/F/G/H/R/S/T/V/W/Z)
WF8500NG(A/C/D/F/G/H/R/S/T/V/W/Z)
WF8508NG(A/C/D/F/G/H/R/S/T/V/W/Z)

Advertisement

loading

Summary of Contents for Samsung WF8624FG

  • Page 1 WF8620NG(A/C/D/F/G/H/R/S/T/V/W/Z) WF8624AG(A/C/D/F/G/H/R/S/T/V/W/Z) WF8502NG(A/C/D/F/G/H/R/S/T/V/W/Z) WF8622AG(A/C/D/F/G/H/R/S/T/V/W/Z) WF8500NG(A/C/D/F/G/H/R/S/T/V/W/Z) WF8620AG(A/C/D/F/G/H/R/S/T/V/W/Z) WF8508NG(A/C/D/F/G/H/R/S/T/V/W/Z) Washing Machine user manual This manual is made with 100% recycled paper. imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register...
  • Page 2 Samsung washing machine has all the features to turn a mundane chore into a pleasure. Your Samsung washing machine includes wash programs that adds protection to the clothing of children with sensitive skin.
  • Page 3 This manual contains important information on the installation, use, and care of your new Samsung washing machine. Refer to it for descriptions of the control panel, instructions on how to use the washing machine, and tips for making the most of its state-of-the-art features and functions.
  • Page 4 Congratulations on your new Samsung ActivFresh™ washer. This manual contains important information on the installation, use and care of your appliance. Please take time to read this manual to take full advantage of your washer’s many benefits and features.
  • Page 5 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
  • Page 6 safety information The installation of this appliance must be performed by a qualified technician or service company. - Failure to do so may result in electric shock, fire, an explosion, problems with the product, or injury. The appliance is heavy, take care upon lifting it Plug the power cord into an AC 220V/50Hz/15A wall socket or higher and use the socket for this appliance only.
  • Page 7 Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance. - This may result in electric shock or fire. Do not pull the power cord, when unplugging the power plug.
  • Page 8 safety information Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or other flammable or explosive substances. - This may result in electric shock, fire or an explosion. Do not open the washer door by force while it is operating (high-temperature washing/ drying/spinning).
  • Page 9 The use for business purposes qualifies as product misuse. In this case, the product will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse.
  • Page 10 safety information Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. - This may result in electric shock, fire, problems with the product, or injury. Do not spray volatile material such as insecticide onto the surface of the appliance.
  • Page 11 Do not use natural hand-washing soap for the washer. - If it hardens and accumulates inside the washer, it may result in problems with the product, discoloration, rust or bad odors. Do not wash large laundry items such as bedding in the washing net. - Place socks and brassieres into the washing net and wash them with the other laundry.
  • Page 12 contents SETTING UP YOUR WASHING Checking the parts Meeting installation requirements MACHINE Electrical supply and grounding Water Supply Drain Flooring Surrounding temperature Alcove or closet installation Installing your washing machine WASHING A LOAD OF LAUNDRY Washing for the first time Basic instructions Using the control panel Child lock...
  • Page 13 Carefully unpack your washing machine, and make sure you’ve received all of the parts shown below. If your washing machine was damaged during shipping, or if you do not have all of the parts, contact Samsung Customer Service or your Samsung dealer. Water supply...
  • Page 14 setting up your washing machine To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No. 70 Latest Revision and local codes and ordinances. It is the personal responsibility of the appliance owner to provide adequate electrical service for this appliance.
  • Page 15 Drain Samsung recommends a standpipe height of 18 in (46 cm). The drain hose must be routed through the drain hose clip to the standpipe. The standpipe must be large enough to accept the outside diameter of the drain hose. The drain hose is attached at the factory.
  • Page 16 setting up your washing machine STEP 2 Before installing the washing machine, you must remove the five shipping bolts from the back of the unit. 1. Loosen all the bolts with the supplied wrench. 2. Hold the bolt with the spanner and pull it through the wide section of the hole.
  • Page 17 STEP 3 When installing your washing machine, ensure that the power plug, the water supply and the drain are easily accessible. 1. Slide the washing machine into position. 2. Level your washing machine by turning the leveling feet in and out as necessary by hand.
  • Page 18 setting up your washing machine Connecting the water supply hose (selected models) 1. Remove the adaptor from the water supply hose. Water supply 2. First, using a ‘+’ type screwdriver, loosen the four screws on the adaptor. Next, take the adaptor and turn part (2) 5 mm following the arrow until there is a 5 mm gap.
  • Page 19 ✗ 6. Turn on the water supply and ensure that no water leaks from the water valve, tap or adaptor. If there is a water leaks, repeat the previous steps. Do not use your washing machine if there is a water leak. ✗...
  • Page 20 setting up your washing machine Connecting the drain hose The end of the drain hose can be positioned in three ways: 1. Over the edge of a wash basin: The drain hose must be placed at a height of between 60 and 90 cm.
  • Page 21 With your new Samsung washing machine, the hardest part of doing laundry will be deciding which load to wash first. Before washing laundry for the first time, you must run a complete empty cycle (i.e. no laundry).
  • Page 22 washing a load of laundry DIGITAL GRAPHIC Displays the remaining wash cycle time, all cycle information, and error DISPLAY messages. Select the tumble pattern and spin speed for the cycle. For detailed information, refer to “Washing clothes using the cycle selector”...
  • Page 23 Press the button repeatedly to cycle through the available speeds for the spin cycle. WF8624 All Lamps Turn Off, , 400, 800, 1400 rpm WF8622 All Lamps Turn Off, , 400, 800, 1200 rpm WF8502 WF8620 SPIN ( ) SELECTION All Lamps Turn Off, , 400, 800, 1000 rpm WF8500...
  • Page 24 washing a load of laundry The Child Lock function allows you to lock the buttons so that the wash cycle you’ve chosen can’t be changed. Activating/Deactivating If you want to activate or deactivate the Child Lock function, press the Temp.( ) and Spin( ) buttons at the same time for 2 seconds.
  • Page 25 Your new washing machine makes washing clothes easy, using Samsung’s “Fuzzy Control” automatic control system. When you select a wash program, the machine will set the correct temperature, washing time, and washing speed. 1. Turn on your sink’s water tap.
  • Page 26 washing a load of laundry You can wash clothes manually without using the Cycle Selector. 1. Turn the water supply on. 2. Press the Power( ) button on the washing machine. 3. Open the door. 4. Load the articles loosely into the drum one at a time, without overfilling it. 5.
  • Page 27 Do not overload the washing machine or your laundry may not wash properly. Use the chart below to determine the load capacity for the type of laundry you are washing. Fabric Type Load Capacity WF8624 WF8502 WF8622 WF8500 WF8620 WF8508 6.2 kg 5.0 kg Synthetics ( )
  • Page 28 washing a load of laundry The type of detergent you should use is based on the type of fabric (cotton, synthetic, delicate items, wool), colour, wash temperature, and degree of soiling. Always use “low suds” laundry detergent, which is designed for automatic washing machines. Follow the detergent manufacturer’s recommendations based on the weight of the laundry, the degree of soiling, and the hardness of the water in your area.
  • Page 29 cleaning and maintaining your washing machine Keeping your washing machine clean improves its performance, wards off unnecessary repairs, and lengthens its life. 1. Unplug the washing machine from the power supply. 2. Open the filter cover using a coin or a key. 3.
  • Page 30 cleaning and maintaining your washing machine 1. Press the release lever on the inside of the detergent drawer and pull the drawer out. 2. Remove the liquid detergent divider from the detergent drawer 3. Wash all parts under running water. 4.
  • Page 31 We recommend cleaning the debris filter 5 or 6 times a year, or when the error message of “5E” is displayed. (Refer to “Draining the washing machine in an emergency” in the previous page.) 1. Open the filter cover by using a key or coin. 2.
  • Page 32 cleaning and maintaining your washing machine If the temperature drops below freezing and your washing machine is frozen: 1. Unplug the washing machine. 2. Pour warm water over the tap to loosen the water supply hose. 3. Remove the water supply hose and soak it in warm water. 4.
  • Page 33 Make sure all the water in your drum is drained out. Make sure the door lock light is off. Door lock light will off after drained. If the problem persists, contact your local Samsung Customer Service. troubleshooting and information codes _33...
  • Page 34 Call the after-sales service. cE/3E For any codes not listed above, or if the suggested solution doesn’t fix the problem, call your Samsung Service Centre or local Samsung dealer. calibrating your washing machine Samsung washing machine detects the laundry weight automatically.
  • Page 35 cycle chart ( user option) Max load(kg) DETERGENT Max Temp WF8624 WF8502 PROGRAM Easy Iron (˚C) WF8622 WF8500 Pre-wash wash Softener WF8620 WF8508 Synthetics Delicates Daily Wash Spin Speed(MAX) rpm Delay Cycle time PROGRAM WF8622 WF8620 (min) WF8624 WF8508 WF8502 WF8500 1400 1200...
  • Page 36 appendix The following symbols provide garment care directions. The care labels include four symbols in this order: washing, bleaching, drying and ironing, and dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow the care label directions to maximize garment life and reduce laundering problems.
  • Page 37 TYPE FRONT LOADING WASHER WF8624/WF8622/WF8620 W600mm X D550mm X H850mm 50 kPa ~ 800 kPa ℓ WF8624 WF8622/WF8620 59 kg 58 kg 6.2 kg MODEL WF8624/WF8622/WF8620 220 V 150 W WASHING 240 V 150 W 220 V 2000 W WASH AND HEATING 240 V 2400 W MODEL...
  • Page 38 appendix TYPE FRONT LOADING WASHER WF8502/WF8500/WF8508 W600mm X D450mm X H850mm 50 kPa ~ 800 kPa ℓ WF8502 WF8500/WF8508 53 kg 52 kg 5.0 kg MODEL WF8502/WF8500/WF8508 220 V 150 W WASHING 240 V 150 W 220 V 2000 W WASH AND HEATING 240 V 2400 W...
  • Page 39 2000-2400 Supplier name Samsung Electronics Co., Ltd. 1. Annual energy consumption is based on 220 standard washing cycles for cotton programs at 60 °C and 40 °C at full and partial load, and the consumption of off and left-on modes. Actual energy consumption will depend on how the appliance is used.
  • Page 40 appendix 4. The ‘standard cotton 60 °C program’ and ‘standard cotton 40 °C program’, which can be selected by adding the Intensive option to the cotton 60 °C and cotton 40 °C program, are suitable to clean normally soiled cotton laundry and they are the most efficient (concerning water and energy consumption) for this type of laundry.
  • Page 41 2000-2400 Supplier name Samsung Electronics Co., Ltd. 1. Annual energy consumption is based on 220 standard washing cycles for cotton programs at 60 °C and 40 °C at full and partial load, and the consumption of off and left-on modes. Actual energy consumption will depend on how the appliance is used.
  • Page 42 appendix 4. The ‘standard cotton 60 °C program’ and ‘standard cotton 40 °C program’, which can be selected by adding the Intensive option to the cotton 60 °C and cotton 40 °C program, are suitable to clean normally soiled cotton laundry and they are the most efficient (concerning water and energy consumption) for this type of laundry.
  • Page 43 memo...
  • Page 44 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
