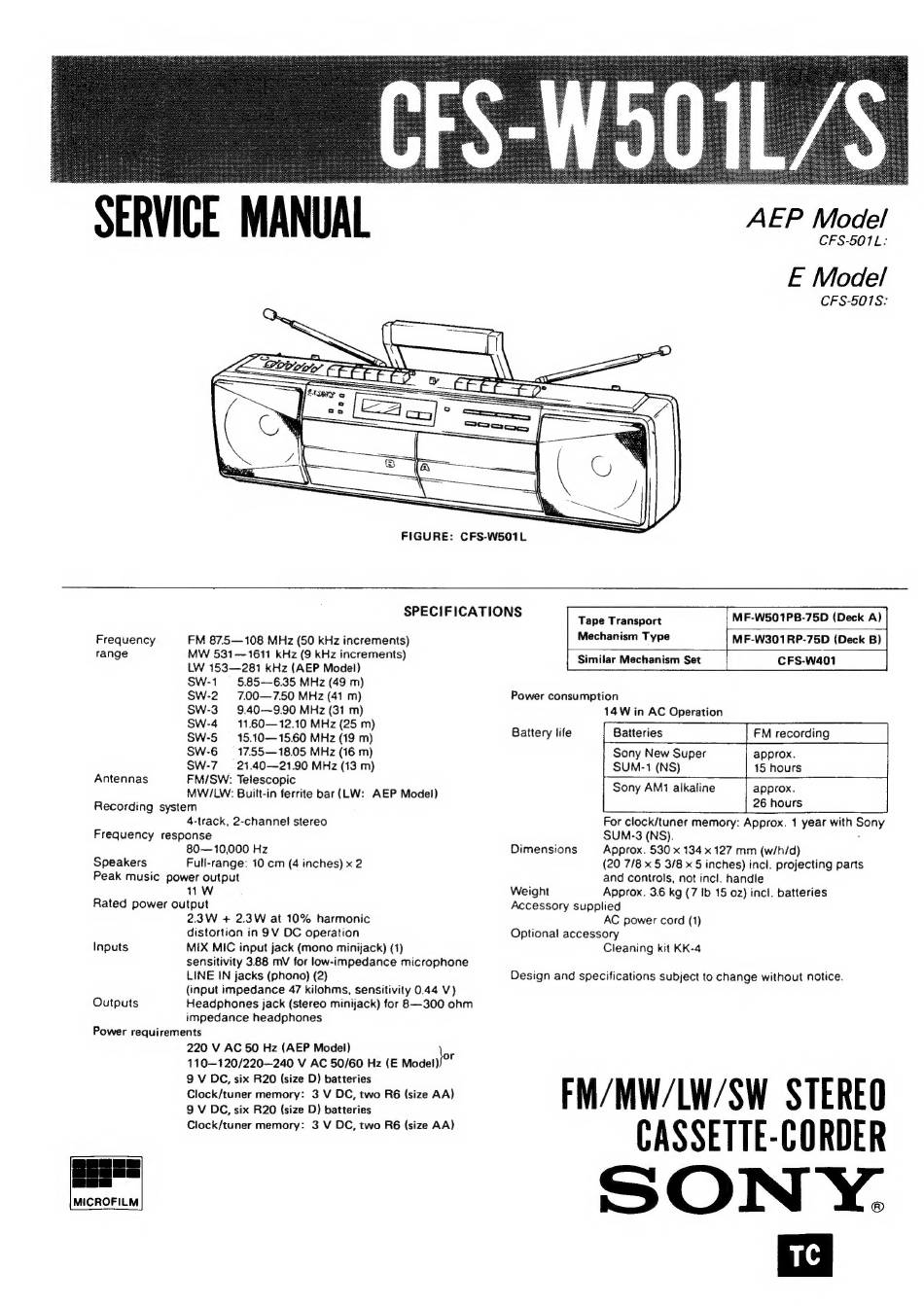

SERVICE MANUAL
FIGURE:
CFS-W501L
AEP Model
CFS-501L:
E Model
CFS-501S:
MICROFILM
SPECIFICATIONS
Frequency
FM 87.5—108 MHz (50 kHz increments)
range
MW 531—1611
kHz (9 kHz increments)
LW 153—281 kHz (AEP Model)
SW-1
— 5.85--6.35 MHz (49 m)
SW-2
7.00—7.50 MHz (41 m)
SW-3
9.40-—-9.90 MHz (31 m)
SW-4
= 11.60—12.10 MHz (25 m)
SW-5
= 15.10—15.60 MHz (19 m)
SW-6
= 17.55—18.05 MHz (16 m)
SW-7
= 21.40—21.90 MHz (13 m)
FM/SW: Telescopic
MW/LW: Built-in ferrite bar (LW: AEP Model)
Recording system
4-track, 2-channel stereo
Frequency
response
80—~ 10,000 Hz
Speakers
Full-range: 10 cm (4 inches) x 2
Peak music power output
WW
Rated power output
2.3W + 2.3W at 10% harmonic
distortion in 9V DC operation
Inputs
MIX MIC input jack (mono minijack) (1)
sensitivity 3.88 mV for low-impedance microphone
LINE IN jacks (phono) (2)
(input impedance 47 kilohms, sensitivity 0.44 V)
Headphones jack (stereo minijack) for 8—300 ohm
impedance headphones
Power requirements
220 V AC 50 Hz (AEP Model)
F
110—120/220—240 V AC 50/60 Hz (E Model)
9 V DC, six R20 (size D) batteries
Clock/tuner memory:
3 V DC, two R6 (size AA)
9 V DC, six R20 (size D) batteries
Clock/tuner memory:
3 V DC, two R6 (size AA)
Antennas
Outputs
MF-W501PB-75D (Deck A)
MF-W301RP-75D (Deck B)
CFS-wW401
Tape Transport
Mechanism Type
Similar Mechanism Set
Power consumption
14 W in AC Operation
Battery life
Batteries
FM recording
Sony New Super
approx.
SUM-1 (NS)
15 hours
Sony AM1 alkaline
approx.
26 hours
For clock/tuner memory: Approx. 1 year with Sony
SUM-3 (NS).
.
Dimensions
Approx. 530 x 134 x 127 mm (w/h/d)
(20 7/8 x 5 3/8 x 5 inches) incl. projecting parts
and controls, not incl. handle
Weight
Approx. 3.6 kg (7 Ib 15 02) incl. batteries
Accessory supplied
AC power cord (1)
Optional accessory
Cleaning kit KK-4
Design and specifications subject to change without notice.
FM/MW/LW/SW STEREO
CASSETTE-CORDER
SON
Y.
