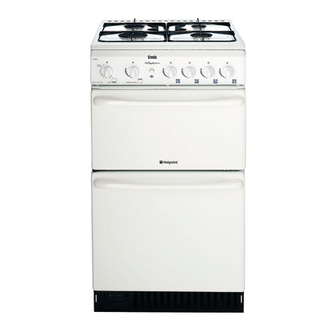

Use & Installation Instructions
NOTE: This appliance is fitted with a battery
powered ignition system. Should the ignition
system start to spark slowly - or not at all, the
battery will need replacing. See the section on
battery replacement.
The cooker must be installed in accordance with the regulations in force
and only used in a well ventilated space.
Read these instructions prior to installing or using the cooker and retain
them for future reference.
The data badge is located below the oven door on the plinth panel.
Advertisement
Table of Contents
Related Manuals for Creda C150
Summary of Contents for Creda C150
- Page 1 C150 X153 L153 Use & Installation Instructions NOTE: This appliance is fitted with a battery powered ignition system. Should the ignition system start to spark slowly - or not at all, the battery will need replacing. See the section on battery replacement.
- Page 2 For more information on our exciting product range ring Creda Answer Centre 08701 546474 Visit us on the NET at http:/www.creda.co.uk interactive cookbook product selector. Our site invites you to make use of our Feel browse our product range bubbling away free to to see what’s...
-
Page 3: Table Of Contents
Contents Introduction For Your Safety Hotplate Grill Oven Oven Cooking Charts The “Slow Cook” Setting Care and Cleaning / Battery Replacement Something Wrong with your cooker? Installation Instructions Key Contacts Back Cover... -
Page 4: Introduction
Introduction To help you make the best use of your cooker, PLEASE READ THIS BOOKLET CAREFULLY. Your new cooker is guaranteed and will give lasting service. The guarantee is only applicable if the cooker has been installed in accordance with the installation instructions. The cooker is designed specifically for domestic use and responsibility will not be accepted for use in any other installation. -
Page 5: For Your Safety
For Your Safety PLEASE READ THE PRECAUTIONS BELOW BEFORE USING YOUR COOKER. Always Always make sure you understand the controls before using the cooker. Always check all controls on the cooker are turned off after use. Always stand back when opening the oven door to allow heat to disperse. - Page 6 For Your Safety Never NOTE: The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed. Ensure that the kitchen is well ventilated; keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood).
-
Page 7: Hotplate
Hotplate The hotplate has one large high speed burner, two normal simmering burners and one small simmering burner which will accommodate pans between 100mm (4”) and 200mm (8”) diameter. All pans should be positioned centrally over the The pan supports should be fitted on the hotplate such that the indents along one side of each pan support are inner-most. -
Page 8: Grill
Grill CAUTION – ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS USED. YOUNG CHILDREN SHOULD BE KEPT AWAY. Grill Pan and Handle The grill pan handle is detachable from the pan to facilitate cleaning and storage. The handle can be fixed as follows : 1. - Page 9 Grill Grilling can be started from cold but for best results preheat for approximately two minutes. Most cooking is done with the heat on full, but it may be necessary after sealing the food to reduce the heat as required. For au gratin dishes eg.
-
Page 10: Oven
Oven The oven has different heat zones – the thermostat settings refer to the temperature on the middle shelf; above this shelf it is hotter and below it is cooler. Two shelves enable full use of the temperatures inside the oven. Each shelf has a safety stop to prevent if from being pulled out too far when attending to food. - Page 11 Oven Anything requiring long slow cooking such as casseroles and rich fruit Cold Start cakes can be put into a cold oven. Satisfactory results can also be obtained Cooking with creamed mixture, rich pastries or yeast mixtures, but for perfection we recommend preheating the oven for about 15 minutes.
-
Page 12: Oven Cooking Charts
Oven Cooking Chart The following times and setting are for guidance only. You may wish to alter the setting to give a result more to your satisfaction. When a different setting to that shown below is given in a recipe, the recipe instructions should be followed. -
Page 13: Oven Cooking Chart
Oven Cooking Chart Food Cakes, Pastries & Biscuits Small Cakes (16 per tray) 2 trays 1 tray Victoria sandwich (2 x 180mm / 7”) Swiss Roll (3 egg quantity) Christmas cake (1 x 205mm / 8”) Madeira cake (1 x 180mm / 7”) Rich Fruit cake (1 x 180mm / 7”) Scones - 16 per tray Shortbread (1 x 180mm / 7”) -
Page 14: The "Slow Cook" Setting
The ‘Slow Cook’ Setting The ‘Slow Cook’ setting on the oven thermostat is used for slow cooking, keeping food warm and warming plates for short periods. 1. All dishes cooked by the ‘Slow Cook’ setting should be cooked for a Using the ‘Slow Cook’... -
Page 15: Care And Cleaning / Battery Replacement
Care and Cleaning Clean the cooker regularly and wipe up spills soon after they occur to prevent them from becoming burnt on. Never use biological washing powder, caustic cleaners, harsh abrasives, scouring pads, aerosol cleaners or oven chemical cleaners of any kind. To move the cooker forward, open the grill door and with both hands positioned under the roof of the compartment, lift and pull forward. - Page 16 Hotplate, burner caps, grill pan, oven base and rear, inside of grill compartment, inside of doors, control panel. Paint Plinth, Fascia bottom trim, side panels, Door fronts (C150). Lid trim, Rear end caps (models with hotplate lid) Aluminium Hotplate burner bodies Chromium Plating...
-
Page 17: Something Wrong With Your Cooker
Something Wrong With Your Cooker Before calling a Service Engineer, please check through the following lists. Problem Slight odour or small amount of smoke when grill / oven used first time Oven cooks too fast or too slow Ignition does not work. Oven burner Burner ports Ignitor... -
Page 18: Installation Instructions
Installation Instructions Prior to installation, ensure that the local distributions (nature of the gas and gas pressure) and the adjustment conditions are compatible. The adjustment conditions for this appliance are stated on the data badge which is fitted below the oven door on the plinth panel. This appliance is not designed to be connected to a combustion products evacuation device. -
Page 19: Natural Gas
Installation Instructions Technical Data Height Dimension Width Depth Gas connection General Pressure test point Gas rate adjustment Aeration adjustment Battery HEAT INPUT BURNER HOTPLATE 3.0 kW Front left HOTPLATE 2.0 kW Rear left HOTPLATE 1.0 kW Rear right HOTPLATE 2.0 kW Front right GRILL 3.8 kW... - Page 20 Installation Instructions The cooker can be close fitted below hotplate level. This requires a minimum distance of 503mm between cupboard units of hotplate height. When installing next to a tall cupboard, partition or wall, for a minimum distance of 400mm above hotplate level, allow a side clearance of at least 65mm.
- Page 21 Installation Instructions Unpack the components from inside the grill and oven: Check that the Unpacking the following parts are present. Cooker Grill pan and grid Pan supports (2) Enamelled discs (4) Literature Four skid feet are fitted which can be adjusted up or down to level the Levelling cooker.
- Page 22 Installation Instructions Operational After installation, check for gas soundness. The supply pressure can be Checks checked at the grill injector. Access to the injector is by first removing the baffle at the front of the grill fastened by two screws. Then remove the fastening screw on the right hand side of the burner and slide the burner off the injector.
-
Page 24: Key Contacts
Genuine Parts & Accessories For further product information All Creda Services are offered as an extra benefit and do not affect your statutory rights. Merloni Elettrodomestici UK Limited, Morley Way, Peterborough, PE2 9JB PRINTED BY SIMLEX . FOUR ASHES, WOLVERHAMPTON.
