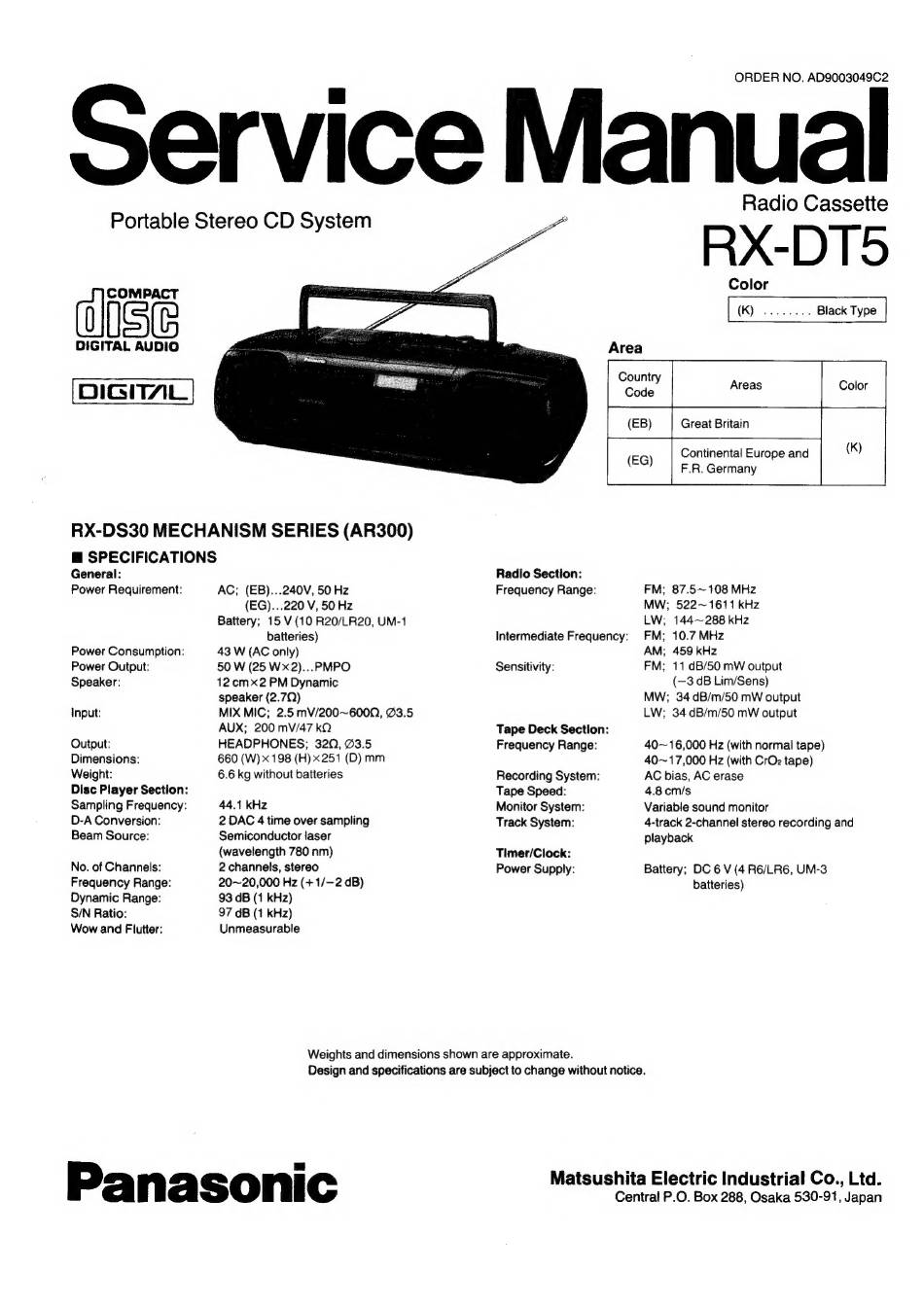

ORDER NO. AD9003049C2
Radio Cassette
Portable Stereo CD System
iste
oll) aC
RX-DS30 MECHANISM SERIES (AR300)
@ SPECIFICATIONS
General:
Power Requirement:
AC; (EB)...240V, 50 Hz
(EG)...220 V, 50 Hz
Battery;
15 V (10 R20/LR20, UM-1
Radio Section:
Frequency Range:
Area
Country
RX-DT5S
Color
(K). eaeekees Black Type
Continental Europe and
F.R. Germany
FM; 87.5~ 108 MHz
MW; 522~ 1611 kHz
LW; 144~288 kHz
batteries)
Intermediate Frequency:
FM; 10.7 MHz
Power Consumption:
43 W (AC only)
AM; 459 kHz
Power Output:
50 W (25 Wx2)...PMPO
Sensitivity:
FM; 11 dB/50 mW output
Speaker:
12 cmx2 PM Dynamic
(—3 dB Lim/Sens)
speaker (2.70)
MW; 34 dB/m/50 mW output
Input:
MIX MIC; 2.5 mV/200~600Q, @3.5
LW; 34 dB/m/50 mW output
AUX; 200 mV/47 kQ
Tape Deck Section:
Output:
HEADPHONES;
32Q, 23.5
Frequency Range:
40~ 16,000 Hz (with normal tape)
Dimensions:
660 (W) x 198 (H)x251 (D) mm
40~ 17,000 Hz (with CrOz tape)
Weight:
6.6 kg without batteries
Recording System:
AC bias, AC erase
Disc Player Section:
Tape Speed:
4.8 cm/s
Sampling Frequency:
44.1 kHz
Monitor System:
Variable sound monitor
D-A Conversion:
2 DAC 4 time over sampling
Track System:
4-track 2-channel stereo recording and
Beam Source:
Semiconductor laser
playback
(wavelength 780 nm)
Timer/Clock:
No. of Channels:
2 channels, stereo
Power Supply:
Battery; DC 6 V (4 R6/LR6, UM-3
Frequency Range:
Dynamic Range:
S/N Ratio:
Wow and Flutter:
20~20,000 Hz (+1/—2 dB)
93 dB (1 kHz)
97 dB (1 kHz)
Unmeasurable
Weights and dimensions shown are approximate.
Design and specifications are subject to change without notice.
Panasonic
Matsushita Electric Industrial Co., Ltd.
Central P.O. Box 288, Osaka 530-91, Japan
batteries)
