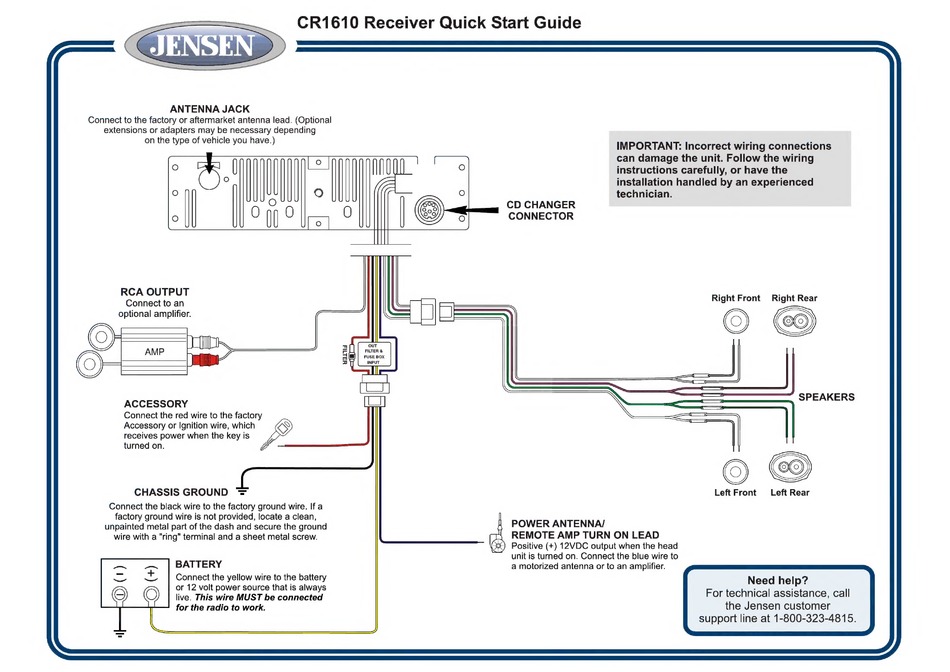

CR1610 Receiver Quick Start Guide
ANTENNA JACK
Connect to the factory or aftermarket antenna lead. (Optional
extensions or adapters may be necessary depending
on the type of vehicle you have.)
IMPORTANT: Incorrect wiring connections
can damage the unit. Follow the wiring
9 | instructions carefully, or have the
Q installation handled by an experienced
©
technician.
0 O 0 CD CHANGER
o | l CONNECTOR
RCA OUTPUT A :
Connect toan Right Front Right Rear
optional amplifier.
O= z
ACCESSORY SPEAKERS
Connect the red wire to the factory
Accessory or Ignition wire, which S
receives power when the key is f
turned on. VA a
CHASSIS GROUND = Left Front Left Rear
Connect the black wire to the factory ground wire. If a
factory ground wire is not provided, locate a clean,
POWER ANTENNA/
unpainted metal part of the dash and secure the ground
wire with a "ring" terminal and a sheet metal screw. À
a
REMOTE AMP TURN ON LEAD
Positive (+) 12VDC output when the head
unit is turned on. Connect the blue wire to
a motorized antenna or to an amplifier.
BATTERY
Connect the yellow wire to the battery
or 12 volt power source that is always
live. This wire MUST be connected
for the radio to work.
Need help?
For technical assistance, call
the Jensen customer
support line at 1-800-323-4815.
