Quick Links

Quick Start

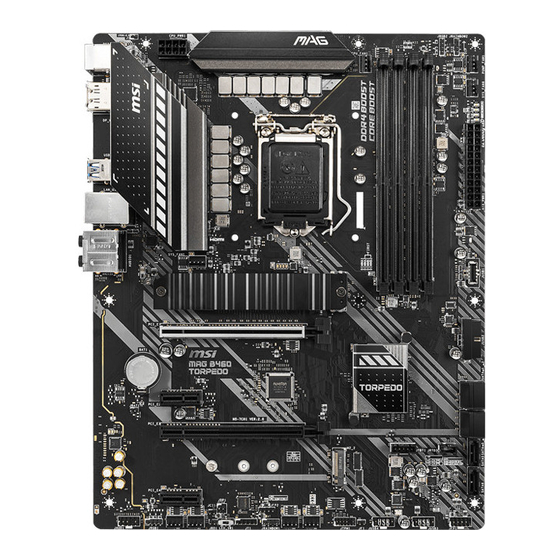

Thank you for purchasing the MSI®
MAG B460 TORPEDO
motherboard. This Quick Start section provides demonstration
diagrams about how to install your computer. Some of the
installations also provide video demonstrations. Please link to the
URL to watch it with the web browser on your phone or tablet. You
may have even link to the URL by scanning the QR code.
Kurzanleitung
Danke, dass Sie das MSI®
MAG B460 TORPEDO
Motherboard gewählt
haben. Dieser Abschnitt der Kurzanleitung bietet eine Demo zur
Installation Ihres Computers. Manche Installationen bieten auch
die Videodemonstrationen. Klicken Sie auf die URL, um diese
Videoanleitung mit Ihrem Browser auf Ihrem Handy oder Table
anzusehen. Oder scannen Sie auch den QR Code mit Ihrem Handy,
um die URL zu öffnen.
Présentation rapide
Merci d'avoir choisi la carte mère MSI®
MAG B460
TORPEDO. Ce
manuel fournit une rapide présentation avec des illustrations
explicatives qui vous aideront à assembler votre ordinateur. Des
tutoriels vidéo sont disponibles pour certaines étapes. Cliquez sur
le lien fourni pour regarder la vidéo sur votre téléphone ou votre
tablette. Vous pouvez également accéder au lien en scannant le QR
code qui lui est associé.
Быстрый старт
Благодарим вас за покупку материнской платы MSI®
MAG B460
TORPEDO. В этом разделе представлена информация, которая
поможет вам при сборке комьютера. Для некоторых этапов сборки
имеются видеоинструкции. Для просмотра видео, необходимо
открыть соответствующую ссылку в веб-браузере на вашем
телефоне или планшете. Вы также можете выполнить переход по
ссылке, путем сканирования QR-кода.
I
Quick Start

Advertisement

Table of Contents
loading

Summary of Contents for MSI MAG B460 TORPEDO

  • Page 1 Videoanleitung mit Ihrem Browser auf Ihrem Handy oder Table anzusehen. Oder scannen Sie auch den QR Code mit Ihrem Handy, um die URL zu öffnen. Présentation rapide Merci d’avoir choisi la carte mère MSI® MAG B460 TORPEDO. Ce manuel fournit une rapide présentation avec des illustrations explicatives qui vous aideront à...
  • Page 2 Installing a Processor/ Installation des Prozessors/ Installer un processeur/ Установка процессора ⚽ https://youtu.be/4ce91YC3Oww Quick Start...
  • Page 3 Installing DDR4 memory/ Installation des DDR4-Speichers/ Installer une mémoire DDR4/ Установка памяти DDR4 ⚽ http://youtu.be/T03aDrJPyQs DIMMA1 DIMMA2 DIMMA2 DIMMA2 DIMMB1 DIMMB2 DIMMB2 Quick Start...
  • Page 4 Connecting the Front Panel Header/ Anschließen der Frontpanel-Stiftleiste/ Connecter un connecteur du panneau avant/ Подключение разъемов передней панели ⚽ http://youtu.be/DPELIdVNZUI Power LED Power Switch JFP1 Reserved HDD LED Reset Switch HDD LED + Power LED + HDD LED - Power LED - Reset Switch Power Switch JFP1...
  • Page 5 Installing the Motherboard/ Installation des Motherboards/ Installer la carte mère/ Установка материнской платы ⚽ https://youtu.be/wWI6Qt51Wnc Torque: 3 kgf·cm* BAT1 *3 kgf·cm = 0.3 N·m = 2.6 lbf·in Quick Start...
  • Page 6 Connecting the Power Connectors/ Stromanschlüsse anschliessen/ Connecter les câbles du module d’alimentation/ Подключение разъемов питания ⚽ http://youtu.be/gkDYyR_83I4 ATX_PWR1 CPU_PWR1 Quick Start...
  • Page 7 Installing SATA Drives/ Installation der SATA-Laufwerke/ Installer le disque dur SATA/ Установка дисков SATA ⚽ http://youtu.be/RZsMpqxythc Quick Start...
  • Page 8 Installing a Graphics Card/ Einbau der Grafikkarte/ Installer une carte graphique/ Установка дискретной видеокарты ⚽ http://youtu.be/mG0GZpr9w_A VIII Quick Start...
  • Page 9 Connecting Peripheral Devices/ Peripheriegeräte/ Connecter un périphérique anschliessen/ Подключение периферийных устройств Quick Start...
  • Page 10 Power On/ Einschalten/ Mettre sous-tension/ Включение питания Quick Start...
  • Page 11: Table Of Contents

    Contents Safety Information ....................3 Specifications ......................4 Package contents ....................9 Rear I/O Panel ..................... 10 LAN Port LED Status Table .................. 10 Audio Ports Configuration ..................10 Realtek Audio Console ..................11 Overview of Components ..................13 CPU Socket ......................14 DIMM Slots ......................
  • Page 12 UEFI BIOS ......................30 BIOS Setup ......................31 Entering BIOS Setup ..................... 31 Resetting BIOS ...................... 32 Updating BIOS ....................... 32 EZ Mode ........................ 34 Advanced Mode ....................37 OC Menu........................ 38 Contents...
  • Page 13: Safety Information

    Safety Information ∙ The components included in this package are prone to damage from electrostatic discharge (ESD). Please adhere to the following instructions to ensure successful computer assembly. ∙ Ensure that all components are securely connected. Loose connections may cause the computer to not recognize a component or fail to start.
  • Page 14: Specifications

    ∙ Supports Dual-Channel mode ∙ Supports non-ECC, un-buffered memory ∙ Supports Intel® Extreme Memory Profile (XMP) * Please refer www.msi.com for more information on compatible memory. ∙ 1x PCIe 3.0 x16 slot (From CPU, PCI_E1), supports x16 mode ∙ 1x PCIe 3.0 x16 slot (From PCH, PCI_E3), supports x4...
  • Page 15 ** PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot. *** Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. ∙ Intel® B460 Chipset RAID ▪...
  • Page 16 Continued from previous page ∙ 1x 24-pin ATX main power connector ∙ 1x 8-pin ATX 12V power connector ∙ 6x SATA 6Gb/s connectors ∙ 2x M.2 slots (M-Key) ∙ 1x USB 3.2 Gen 1 5Gbps Type-C port ∙ 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) ∙...
  • Page 17 BIOS Features ∙ ACPI 6.2, SMBIOS 3.2 ∙ Multi-language ∙ Drivers ∙ DRAGON CENTER ∙ MSI APP Player (BlueStacks) ∙ Open Broadcaster Software (OBS) Software ∙ CPU-Z MSI GAMING ∙ Intel® Extreme Tuning Utility ∙ Google Chrome™, Google Toolbar, Google Drive ∙...
  • Page 18 Continued from previous page ∙ Audio ▪ Audio Boost ∙ Network ▪ 2.5G LAN ▪ LAN Manager ∙ Cooling ▪ M.2 Shield Frozr ▪ Pump Fan ▪ Smart Fan Control ∙ LED ▪ Mystic Light ▪ Mystic Light Extension (RAINBOW/RGB) Special Features ▪...
  • Page 19: Package Contents

    Package contents Please check the contents of your motherboard package. It should contain: Motherboard MAG B460 TORPEDO Cable SATA 6G cables (2 cables/pack) M.2 screws (3 pcs./pack) Accessories Case Badge Product registration card Application Driver DVD User manual Documentation Quick installation guide ⚠...
  • Page 20: Rear I/O Panel

    Rear I/O Panel PS/2 Combo port 2.5 Gbps LAN Audio Ports DisplayPort USB 2.0 Type-A USB 3.2 Gen 1 (5Gbps) Type-A Optical S/PDIF-Out LAN Port LED Status Table Link/ Activity LED Speed LED Status Description Status 2.5 Gbps LAN No link 10 Mbps Yellow Linked...
  • Page 21: Realtek Audio Console

    Realtek Audio Console After Realtek Audio Console is installed. You can use it to change sound settings to get better sound experience. Application Enhancement Device Selection Main Volume Connector Settings Jack Status ∙ Device Selection - allows you to select a audio output source to change the related options.
  • Page 22 Audio jacks to headphone and microphone diagram Audio jacks to stereo speakers diagram AUDIO INPUT Audio jacks to 7.1-channel speakers diagram AUDIO INPUT Rear Front Side Center/ Subwoofer Rear I/O Panel...
  • Page 23: Overview Of Components

    Overview of Components CPU Socket DIMMA1 DIMMA2 DIMMB1 CPU_FAN1 CPU_PWR1 DIMMB2 JRGB2 JRAINBOW2 PUMP_FAN1 SYS_FAN6 ATX_PWR1 JUSB1 SYS_FAN1 M2_1 PCI_E1 JUSB2 JTBT1 BAT1 PCI_E2 SATA▼1▲2 JBAT1 SATA▼3▲4 PCI_E3 M2_2 SATA5 SATA6 PCI_E4 JRTD3 JCI1 JFP1 JRGB1 JUSB3 SYS_FAN2 JUSB4 SYS_FAN3 JTPM1 LED_SW1 JAUD1...
  • Page 24: Cpu Socket

    ∙ the CPU. ∙ Please retain the CPU protective cap after installing the processor. MSI will deal with Return Merchandise Authorization (RMA) requests if only the motherboard comes with the protective cap on the CPU socket. When installing a CPU, always remember to install a CPU heatsink. A CPU heatsink ∙...
  • Page 25: Dimm Slots

    It is recommended to use a more efficient memory cooling system for full DIMMs ∙ installation or overclocking. ∙ The stability and compatibility of installed memory module depend on installed CPU and devices when overclocking. ∙ Please refer www.msi.com for more information on compatible memory. Overview of Components...
  • Page 26: Pci_E1~4: Pcie Expansion Slots

    PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot. ∙ If you install a large and heavy graphics card, you need to use a tool such as MSI ∙ Gaming Series Graphics Card Bolster to support its weight to prevent deformation of the slot.
  • Page 27: M2_1~2: M.2 Slots (Key M)

    M2_1~2: M.2 Slots (Key M) ⚽ Video Demonstration Watch the video to learn how to Install M.2 module. http://youtu.be/JCTFABytrYA ⚠ M2_1 M2_2 Important Intel RST only supports PCIe M.2 SSD with UEFI ROM (M2_2 slot only). ∙ ® Intel Optane™ Memory Ready for all M2_2 slot. ∙...
  • Page 28 3. Move and fasten the M.2 standoff to the appropriate position for your M.2 SSD, or remove the M.2 standoff if your M.2 SSD length is same as the length of M.2 heatsink to avoid damage to the M.2 SSD. 4.
  • Page 29: Jfp1, Jfp2: Front Panel Connectors

    JFP1, JFP2: Front Panel Connectors These connectors connect to the switches and LEDs on the front panel. Power LED Power Switch JFP1 Reserved HDD LED Reset Switch HDD LED + Power LED + HDD LED - Power LED - Reset Switch Power Switch Reset Switch Power Switch...
  • Page 30: Cpu_Pwr1, Atx_Pwr1: Power Connectors

    CPU_PWR1, ATX_PWR1: Power Connectors These connectors allow you to connect an ATX power supply. CPU_PWR1 Ground +12V Ground +12V Ground +12V Ground +12V +3.3V +3.3V +3.3V -12V Ground Ground PS-ON# Ground Ground Ground ATX_PWR1 Ground Ground PWR OK 5VSB +12V +12V +3.3V Ground...
  • Page 31: Jusb1: Usb 3.2 Gen 1 5Gbps Type-C Connector

    JUSB1: USB 3.2 Gen 1 5Gbps Type-C Connector This connector allows you to connect USB 3.2 Gen 1 5Gbps Type-C connector on the front panel. The connector possesses a foolproof design. When you connect the cable, be sure to connect it with the corresponding orientation. USB Type-C Cable JUSB1 USB Type-C port on...
  • Page 32: Jusb3~4: Usb 2.0 Connectors

    JUSB3~4: USB 2.0 Connectors These connectors allow you to connect USB 2.0 ports on the front panel. USB0- USB1- USB0+ USB1+ Ground Ground No Pin ⚠ Important ∙ Note that the VCC and Ground pins must be connected correctly to avoid possible damage.
  • Page 33: Cpu_Fan1, Pump_Fan1, Sys_Fan1~6: Fan Connectors

    CPU_FAN1, PUMP_FAN1, SYS_FAN1~6: Fan Connectors Fan connectors can be classified as PWM (Pulse Width Modulation) Mode or DC Mode. PWM Mode fan connectors provide constant 12V output and adjust fan speed with speed control signal. DC Mode fan connectors control fan speed by changing voltage. You can follow the instruction below to adjust the fan connector to PWM or DC Mode manually.
  • Page 34: Jci1: Chassis Intrusion Connector

    JCI1: Chassis Intrusion Connector This connector allows you to connect the chassis intrusion switch cable. Normal Trigger the chassis (default) intrusion event Using chassis intrusion detector 1. Connect the JCI1 connector to the chassis intrusion switch/ sensor on the chassis. 2.
  • Page 35: Jbat1: Clear Cmos (Reset Bios) Jumper

    JBAT1: Clear CMOS (Reset BIOS) Jumper There is CMOS memory onboard that is external powered from a battery located on the motherboard to save system configuration data. If you want to clear the system configuration, set the jumpers to clear the CMOS memory. Keep Data Clear CMOS/ (default)
  • Page 36: Ez Debug Led

    EZ Debug LED These LEDs indicate the debug status of the motherboard. CPU - indicates CPU is not detected or fail. DRAM - indicates DRAM is not detected or fail. VGA - indicates GPU is not detected or fail. BOOT - indicates the booting device is not detected or fail.
  • Page 37: Jrgb1~2: Rgb Led Connector

    (12V/G/R/B) with the maximum power rating of 3A (12V). Always turn off the power supply and unplug the power cord from the power outlet ∙ before installing or removing the RGB LED strip. Please use MSI’s software to control the extended LED strip. ∙ Overview of Components...
  • Page 38: Jrainbow1~2: Addressable Rgb Led Connectors

    (5V). In the case of 20% brightness, the connector supports up to 200 LEDs. Always turn off the power supply and unplug the power cord from the power outlet ∙ before installing or removing the RGB LED strip. ∙ Please use MSI’s software to control the extended LED strip. Overview of Components...
  • Page 39: Installing Os, Drivers & Utilities

    Installing OS, Drivers & Utilities Please download and update the latest utilities and drivers at www.msi.com Installing Windows® 10 1. Power on the computer. 2. Insert the Windows® 10 installation disc/USB into your computer. 3. Press the Restart button on the computer case.
  • Page 40: Uefi Bios

    UEFI has many new functions and advantages that traditional BIOS cannot achieve, and it will completely replace BIOS in the future. The MSI UEFI BIOS uses UEFI as the default boot mode to take full advantage of the new chipset’s capabilities.
  • Page 41: Bios Setup

    BIOS Setup The default settings offer the optimal performance for system stability in normal conditions. You should always keep the default settings to avoid possible system damage or failure booting unless you are familiar with BIOS. ⚠ Important BIOS items are continuously update for better system performance. Therefore, the ∙...
  • Page 42: Resetting Bios

    Updating BIOS Updating BIOS with M-FLASH Before updating: Please download the latest BIOS file that matches your motherboard model from MSI website. And then save the BIOS file into the USB flash drive. Updating BIOS: 1. Insert the USB flash drive that contains the update file into the USB port.
  • Page 43 Make sure the LAN driver is already installed and the internet connection is set properly. Updating BIOS: 1. Install and launch MSI DRAGON CENTER and go to Support page. 2. Select Live Update and click on Advance button. 3. Click on Scan button to search the latest BIOS file.
  • Page 44: Ez Mode

    EZ Mode At EZ mode, it provides the basic system information and allows you to configure the basic setting. To configure the advanced BIOS settings, please enter the Advanced Mode by pressing the Setup Mode switch or F7 function key. Screenshot XMP Profile Setup Mode switch...
  • Page 45 ∙ Language - allows you to select language of BIOS setup. ∙ System information - shows the CPU/ DDR speed, CPU/ MB temperature, MB/ CPU type, memory size, CPU/ DDR voltage, BIOS version and build date. ∙ Boot device priority bar - you can move the device icons to change the boot priority. The boot priority from high to low is left to right.
  • Page 46 ▪ To add a BIOS item to a favorite menu 1. Select a BIOS item not only on BIOS menu but also on search page. 2. Right-click or press F2 key. 3. Choose a favorite page and click on OK. ▪...
  • Page 47: Advanced Mode

    Advanced Mode Press Setup Mode switch or F7 function key can switch between EZ Mode and Advanced Mode in BIOS setup. BIOS menu BIOS menu selection selection Menu display ∙ BIOS menu selection - the following options are available: ▪ SETTINGS - allows you to specify the parameters for chipset and boot devices. ▪...
  • Page 48: Oc Menu

    OC Menu This menu allows you to configure the frequencies and voltages for overclocking. Please note that, higher frequency and voltage may benefit overclocking capability but cause system un-stability. ⚠ Important Overclocking your PC manually is only recommended for advanced users. ∙...
  • Page 49 ▶ GT Ratio [Auto] Sets the integrated graphics ratio. The valid value range depends on the installed CPU. ▶ Adjusted GT Frequency Shows the adjusted integrated graphics frequency. Read-only. ▶ Extreme Memory Profile (XMP) [Disabled] XMP (Extreme Memory Profile) is the overclocking technology by memory module. Please enable XMP or select a profile of memory module for overclocking the memory.
  • Page 50 ▶ DRAM Voltages control [Auto] These options allow you to set the voltages related to memory. If set to Auto, BIOS will set these voltages automatically or you can set it manually. ▶ CPU Memory Changed Detect [Enabled]* Enables or disables the system to issue a warning message during boot when the CPU or memory has been replaced.
  • Page 51 Inhalt Sicherheitshinweis ....................3 Spezifikationen ...................... 4 Packungsinhalt ...................... 9 Rückseite E/A ...................... 10 LAN Port LED Zustandstabelle ................10 Konfiguration der Audioanschlüsse ..............10 Realtek Audio Console ..................11 Übersicht der Komponenten ................13 CPU Sockel ......................14 DIMM-Steckplätze ....................15 PCI_E1~4: PCIe Erweiterungssteckplätze ............
  • Page 52 UEFI BIOS ......................30 BIOS Setup ......................31 Öffnen des BIOS Setups..................31 Reset des BIOS ..................... 32 Aktualisierung des BIOS ..................32 EZ Modus ......................34 Erweiterter Modus ....................37 OC Menü........................ 38 Inhalt...
  • Page 53: Sicherheitshinweis

    Sicherheitshinweis ∙ Die im Paket enthaltene Komponenten sind der Beschädigung durch elektrostatischen Entladung (ESD). Beachten Sie bitte die folgenden Hinweise, um die erfolgreichen Computermontage sicherzustellen. ∙ Stellen Sie sicher, dass alle Komponenten fest angeschlossen sind. Lockere Steckverbindungen können Probleme verursachen, zum Beispiel: Der Computer erkennt eine Komponente nicht oder startet nicht.
  • Page 54: Spezifikationen

    ∙ Unterstützt non-ECC, ungepufferte Speicher ∙ Unterstützt Intel® Extreme Memory Profile (XMP) * Weitere Informationen zu kompatiblen Speicher finden Sie unter: http://www.msi.com ∙ 1x PCIe 3.0 x16 Steckplatz (von CPU, PCI_E1), unterstützt den x16-Modus ∙ 1x PCIe 3.0 x16 Steckplatz (von PCH, PCI_E3), unterstützt...
  • Page 55 Steckplatz installieren. *** Bevor Sie Intel® Optane Speichermodule verwenden, stellen Sie bitte über ™ Downloads von der MSI Website sicher, dass die Treiber und das BIOS auf dem neuesten Stand sind. ∙ Intel® B460 Chipsatz RAID ▪ Unterstützt RAID 0, RAID 1, RAID 5 und RAID 10 für SATA Speichergeräte...
  • Page 56 Fortsetzung der vorherigen Seite ∙ 1x 24-poliger ATX Stromanschluss ∙ 1x 8-poliger ATX 12V Stromanschluss ∙ 6x SATA 6Gb/s Anschlüsse ∙ 2x M.2 Steckplätze (M-Key) ∙ 1x USB 3.2 Gen 1 5Gbit/s Typ-C Anschluss ∙ 1x USB 3.2 Gen 1 5Gbit/s Anschluss (unterstützt zusätzliche 2 USB 3.2 Gen 1 5Gbit/s Anschlüsse) ∙...
  • Page 57 ∙ UEFI AMI BIOS BIOS Funktionen ∙ ACPI 6.2, SMBIOS 3.2 ∙ Mehrsprachenunterstützung ∙ Treiber ∙ DRAGON CENTER ∙ MSI APP Player (BlueStacks) ∙ Open Broadcaster Software (OBS) Software ∙ CPU-Z MSI GAMING ∙ Intel® Extreme Tuning Utility ∙ Google Chrome , Google Toolbar, Google Drive ™...
  • Page 58 Fortsetzung der vorherigen Seite ∙ Audio ▪ Audio Boost ∙ Netzwerk ▪ 2.5G LAN ▪ LAN Manager ∙ Kühlung ▪ M.2 Shield Frozr ▪ Pump-Lüfter ▪ Smart Lüftersteuerung ∙ LED ▪ Mystic Light ▪ Mystic Light Extension (RAINBOW/RGB) Besondere ▪ Mystic Light SYNC Funktionen ▪...
  • Page 59: Packungsinhalt

    Packungsinhalt Überprüfen Sie den Packungsinhalt des Mainboards. Die Packung sollte enthalten: Motherboard MAG B460 TORPEDO Kabel SATA 6G Kabel (2 Kabel pro Packung) M.2 Schraube (3 Stück pro Packung) Zubehör Gehäuse-Aufkleber Produktregistrierungskarte Anwendung Treiber-DVD Benutzerhandbuch Dokumentation Schnellinstallationsanleitung ⚠ Wichtig Falls einer der oben aufgeführten Artikel beschädigt ist oder fehlt, wenden Sie sich bitte an Ihren Händler.
  • Page 60: Rückseite E/A

    Rückseite E/A PS/2 Combo Anschluss 2,5 Gbit/s LAN Audioanschlüsse DisplayPort USB 2.0 Typ-A USB 3.2 Gen 1 (5Gbit/s) Typ-A Optischer S/PDIF- Ausgang LAN Port LED Zustandstabelle Verbindung/ Aktivität LED Geschwindigkeit LED Zustand Bezeichnung Zustand 2.5 Gbit/s LAN Keine Verbindung 10 Mbit/s Gelb Verbindung Grün...
  • Page 61: Realtek Audio Console

    Realtek Audio Console Nach der Installation des Realtek Audio Console-Treibers, können Sie die Audioeinstellungen verändern, um ein optimales Klangerlebnis erzeugen. Optimierungen Geräteauswahl Lautstärke Anschluss Verbindungsstatus ∙ Geräteauswahl - Ermöglicht die Auswahl der Audio-Ausgangs Quelle. Das aktuell aktivierte Gerät ist mit einem Haken gekennzeichnet. ∙...
  • Page 62 Audiobuchsen für den Anschluss von einem Kopfhörer und Mikrofon Audiobuchsen für Stereo-Lautsprecher AUDIO INPUT Audiobuchsen für 7.1 Kanal Anlage AUDIO INPUT Rear Front Side Center/ Subwoofer Rückseite E/A...
  • Page 63: Übersicht Der Komponenten

    Übersicht der Komponenten CPU Sockel DIMMA1 DIMMA2 DIMMB1 CPU_FAN1 CPU_PWR1 DIMMB2 JRGB2 JRAINBOW2 PUMP_FAN1 SYS_FAN6 ATX_PWR1 JUSB1 SYS_FAN1 M2_1 PCI_E1 JUSB2 JTBT1 BAT1 PCI_E2 SATA▼1▲2 JBAT1 SATA▼3▲4 PCI_E3 M2_2 SATA5 SATA6 PCI_E4 JRTD3 JCI1 JFP1 JRGB1 JUSB3 SYS_FAN2 JUSB4 SYS_FAN3 JTPM1 LED_SW1 JAUD1...
  • Page 64: Cpu Sockel

    Sie jedoch bitte sicher, dass die betroffenen Komponenten mit den abweichenden Einstellungen während des Übertaktens zurecht kommen. Von jedem Versuch des Betriebes außerhalb der Produktspezifikationen kann nur abgeraten werden. MSI übernehmt keinerlei Garantie für die Schäden und Risiken, die aus einem unzulässigem Betrieb oder einem Betrieb außerhalb der Produktspezifikation resultieren.
  • Page 65: Dimm-Steckplätze

    DIMMs oder beim Übertakten zu verwenden. Die Stabilität und Kompatibilität beim Übertakten der installierten Speichermodule ∙ sind abhängig von der installierten CPU und den installierten Geräten. ∙ Weitere Informationen zu kompatiblen Speichermodulen finden Sie unter: http://www.msi.com Übersicht der Komponenten...
  • Page 66: Pci_E1~4: Pcie Erweiterungssteckplätze

    PCI_E1~4: PCIe Erweiterungssteckplätze PCI_E1: PCIe 3.0 x16 (CPU) BAT1 PCI_E2: PCIe 3.0 x1 (PCH) PCI_E3: PCIe 3.0 x4 (PCH) PCI_E4: PCIe 3.0 x1 (PCH) ⚠ Wichtig ∙ PCI_E3 wird nicht zur Verfügung stehen, wenn Sie eine M.2 SSD im M2_2 Steckplatz installieren.
  • Page 67: M2_1~2: M.2 Steckplätze (Key M)

    M2_1~2: M.2 Steckplätze (Key M) ⚽ Video-Demonstration Eine anschauliche Darstellung zur Installation eines M.2 Moduls finden Sie im Video. http://youtu.be/JCTFABytrYA ⚠ M2_1 M2_2 Wichtig Intel RST unterstützt nur PCIe M.2 SSD mit UEFI ROM (nur M2_2 Steckplatz). ∙ ® Intel Optane Technik unterstützt M2_2 Steckplatz.
  • Page 68 3. Entfernen Sie den M.2-Abstandshalter und befestigen Sie ihn an der entsprechenden Position Ihrer M.2-SSD. Zur Vermeidung von Schäden der M.2 SSD: Wenn die M.2-SSD dieselbe Länge wie der M.2-Steckplatz aufweist, entfernen Sie den Abstandhalter unter der M.2-SSD. 4. Stecken Sie eine M.2-SSD im 30-Grad-Winkel in den M.2-Steckplatz. 5.
  • Page 69: Jfp1, Jfp2: Frontpanel-Anschlüsse

    JFP1, JFP2: Frontpanel-Anschlüsse Diese Anschlüsse verbinden die Schalter und LEDs des Frontpanels. Power LED Power Switch JFP1 Reserved HDD LED Reset Switch HDD LED + Power LED + HDD LED - Power LED - Reset Switch Power Switch Reset Switch Power Switch Reserved No Pin...
  • Page 70: Cpu_Pwr1, Atx_Pwr1: Stromanschlüsse

    CPU_PWR1, ATX_PWR1: Stromanschlüsse Mit diesen Anschlüssen verbinden Sie die ATX Stromstecker. CPU_PWR1 Ground +12V Ground +12V Ground +12V Ground +12V +3.3V +3.3V +3.3V -12V Ground Ground PS-ON# Ground Ground Ground ATX_PWR1 Ground Ground PWR OK 5VSB +12V +12V +3.3V Ground ⚠...
  • Page 71: Jusb1: Usb 3.2 Gen 1 5Gbit/S Typ-C Anschluss

    JUSB1: USB 3.2 Gen 1 5Gbit/s Typ-C Anschluss Mit diesem Anschluss können Sie den USB 3.2 Gen 1 5Gbit/s Typ-C Anschluss auf dem Frontpanel verbinden. Der Anschluss verfügt über ein besonders sicheres Design. Wenn Sie das Kabel anschließen, müssen Sie es in der entsprechenden Ausrichtung verbinden.
  • Page 72: Jusb3~4: Usb 2.0 Anschlüsse

    (Erdung) bezeichneten Pins korrekt verbinden müssen, ansonsten kann es zu Schäden kommen. Um ein iPad, iPhone und einen iPod über USB-Anschlüsse aufzuladen, installieren ∙ Sie bitte die MSI DRAGON CENTER Software. ® JTPM1: TPM Anschluss Dieser Anschluss wird für das TPM Modul (Trusted Platform Module) verwendet.
  • Page 73: Cpu_Fan1, Pump_Fan1, Sys_Fan1~6: Stromanschlüsse Für Lüfter

    CPU_FAN1, PUMP_FAN1, SYS_FAN1~6: Stromanschlüsse für Lüfter Diese Anschlüsse können im PWM (Pulse Width Modulation) Modus oder Spannungsmodus betrieben werden. Im PWM-Modus bieten die Lüfteranschlüsse konstante 12V Ausgang und regeln die Lüftergeschwindigkeit per Drehzahlsteuersignal. Im DC-Modus bestimmen die Lüfteranschlüsse die Lüftergeschwindigkeit durch Ändern der Spannung. Folgen Sie den folgenden Anweisungen, um den PWM- oder DC-Modus manuell auszuwählen.
  • Page 74: Jci1: Gehäusekontaktanschluss

    JCI1: Gehäusekontaktanschluss Dieser Anschluss wird mit einem Kontaktschalter verbunden. Normal Löse den (Standardwert) Gehäuseeingriff aus Gehäusekontakt-Detektor verwenden 1. Schließen Sie den JCI1-Anschluss am Gehäusekontakt-Schalter/ Sensor am Gehäuse an. 2. Schließen Sie die Gehäuseabdeckung. 3. Gehen Sie zu BIOS > SETTINGS > Security > Chassis Intrusion Configuration. 4.
  • Page 75: Jbat1: Clear Cmos Steckbrücke (Reset Bios)

    JBAT1: Clear CMOS Steckbrücke (Reset BIOS) Der Onboard CMOS Speicher (RAM) wird durch eine externe Spannungsversorgung durch eine Batterie auf dem Motherboard versorgt, um die Daten der Systemkonfiguration zu speichern. Wenn Sie die Systemkonfiguration löschen wollen, müssen Sie die Steckbrücke für kurze Zeit umsetzen. Daten CMOS-Daten beibehalten...
  • Page 76: Ez Debug Led

    EZ Debug LED Diese LEDs zeigen den Debug-Status des Motherboards an. CPU - CPU wird nicht erkannt oder ist fehlerhaft. DRAM - DRAM wird nicht erkannt oder ist fehlerhaft. VGA - GPU wird nicht erkannt oder ist fehlerhaft. BOOT - Boot-Gerät wird nicht erkannt oder ist fehlerhaft.
  • Page 77: Jrgb1~2: Rgb Led Anschlüsse

    R/B) mit der maximalen Leistung von 3 A (12 V). ∙ Schalten Sie die Stromversorgung aus und ziehen Sie das Netzkabel ab, bevor Sie die RGB-LED-Streifen ein- und ausbauen. ∙ Bitte verwenden Sie die MSI-Software zur Steuerung des LED-Leuchtstreifens. Übersicht der Komponenten...
  • Page 78: Jrainbow1~2: Adressierbare Rgb Led Anschlüsse

    3 A (5 V). Bei einer Helligkeit von 20 Prozent unterstützt dieser Anschluss bis zu 200 LEDs. Schalten Sie die Stromversorgung aus und ziehen Sie das Netzkabel ab, bevor Sie ∙ die RGB-LED-Streifen ein- und ausbauen. Bitte verwenden Sie die MSI-Software zur Steuerung des LED-Leuchtstreifens. ∙ Übersicht der Komponenten...
  • Page 79: Installation Von Os, Treibern Und Utilities

    Sie DVDSetup.exe starten aus, um den Installer zu öffnen. Wenn Sie die AutoPlay-Funktionen in der Windows-Systemsteuerung ausschalten, können Sie das Programm DVD Setup.exe im Hauptverzeichnis der MSI Treiber CD auch manuell ausführen. 4. Der Installer wird findet eine Liste aller benötigten Treiber auf der Treiber/ Software-Registerkarte.
  • Page 80: Uefi Bios

    MSI UEFI BIOS is compatible with UEFI (Unified Extensible Firmware Interface) architecture. UEFI hat viele neue Funktionen und besitzt Vorteile, die das traditionelle BIOS nicht bieten kann. UEFI wird das BIOS in Zukunft vollständig ersetzen. Das MSI UEFI-BIOS verwendet UEFI als Standard-Startmodus, um die Funktionen des neuen Chipsatzes voll auszunutzen.
  • Page 81: Bios Setup

    BIOS Setup Die Standardeinstellungen bieten die optimale Leistung für die Systemstabilität unter Normalbedingungen. Sie sollten immer die Standardeinstellungen behalten, um mögliche Schäden des Systems oder Boot-Fehler zu vermeiden, außer Sie besitzen ausreichende BIOS Kenntnisse. ⚠ Wichtig BIOS Funktionen werden für eine bessere Systemleistung kontinuierlich ∙...
  • Page 82: Reset Des Bios

    Aktualisierung des BIOS mit dem M-FLASH-Programm Vorbereitung: Laden Sie bitte die neueste BIOS Version, die dem Motherboard-Modell entspricht, von der offiziellen MSI Website herunter und speichern Sie die BIOS-Datei auf USB- Flash-Laufwerk. BIOS-Aktualisierungsschritte: 1. Schließen das USB-Flashlaufwerk mit der BIOS-Datei an den Computer.
  • Page 83 Stellen Sie sicher, dass zuvor die LAN-Treiber installiert wurden und eine Internetverbindung eingerichtet ist. Schritte zur Aktualisierung des BIOS: 1. Installieren und starten Sie „MSI DRAGON CENTER“ und gehen Sie zur Support- Seite. 2. Wählen Sie Live Update aus und klicken Sie auf die Schaltfläche Advance.
  • Page 84: Ez Modus

    EZ Modus Im EZ-Modus können Sie die Grundinformationen des Systems einsehen und grundlegende Einstellungen konfigurieren. Um sich die erweiterten BIOS- Einstellungen anzeigen zu lassen, aktivieren Sie bitte den Erweiterten Modus durch Drücken des Setup Modus Schalter oder der Funktionstaste F7. Screenshot XMP Profil Setup Modus Schalter...
  • Page 85 ∙ Sprache - Hier können Sie die Sprache der BIOS-Einstellungen auswählen. ∙ Systeminformationen - Diese zeigt CPU/ DDR-Frequenz, CPU/ MB-Temperatur, MB/ CPU-Typ, Speicherkapazität, CPU/ DDR-Spannung, BIOS-Version und Erstellungs-Datum. ∙ Boot-Geräte Prioritätsleiste - Sie können die Gerätesymbole verschieben, um die Startreihenfolge zu ändern. Die Bootreihenfolge sind mit “hoch”(links) bis “niedrig” (rechts) bezeichnet.
  • Page 86 ▪ Um ein BIOS-Punkte zu einer Favoritenmenü hinzufügen 1. Sie können nicht nur über einen Eintrag im BIOS-Menü sondern auch auf der Suchseite auswählen. 2. Klicken Sie mit der rechten Maustaste oder drücken Sie die Taste F2. 3. Wählen Sie die gewünschte Seite aus und klicken Sie auf OK. ▪...
  • Page 87: Erweiterter Modus

    Erweiterter Modus Drücken Sie den Setup Modus Schalter oder die Funkionstaste F7, um zwischen dem EZ-Modus und Erweiterten-Modus im BIOS-Setup zu wechseln. BIOS-Menü BIOS-Menü -Auswahl -Auswahl Menüanzeige ∙ BIOS-Menü-Auswahl - Die folgenden Optionen stehen zur Verfügung. ▪ SETTINGS - Mit diesem Menü können Sie die Parameter für Chipsatz, Boot- Geräte angeben.
  • Page 88: Oc Menü

    OC Menü In diesem Menü können Sie die Frequenzen und Spannungen für das Übertakten konfigurieren. Bitte beachten Sie, dass höhere Frequenzen und Spannungen die Übertaktungsfähigkeit verbessern können, jedoch zu einer Instabilität des Systems führen. ⚠ Wichtig Die Übertaktung ist nur für fortgeschrittene Benutzer zu empfehlen. ∙...
  • Page 89 ▶ Ring Ratio [Auto] Setzen Sie den Ring Ratio. Der erlaubte Wertebereich ist abhängig von der installierten CPU. ▶ Adjusted Ring Frequency Zeigt die angepasste Ring Frequenz. Nur Anzeige – keine Änderung möglich. ▶ GT Ratio [Auto] Setzen Sie den Multiplikator der integrierten Grafik. Der erlaubte Wertebereich ist abhängig von der installierten CPU.
  • Page 90 ▶ DigitALL Power sub-menu Drücken Sie die Eingabetaste <Enter>, um das Untermenü aufzurufen. Im Untermenü können Sie einige Schutzbedingungen über Spannung/ Strom/ Temperatur für die CPU einstellen. ▶ CPU Core Voltage Monitor [VCC Sense] Wählt die Monitorquelle für die CPU-Kernspannung aus. ▶...
