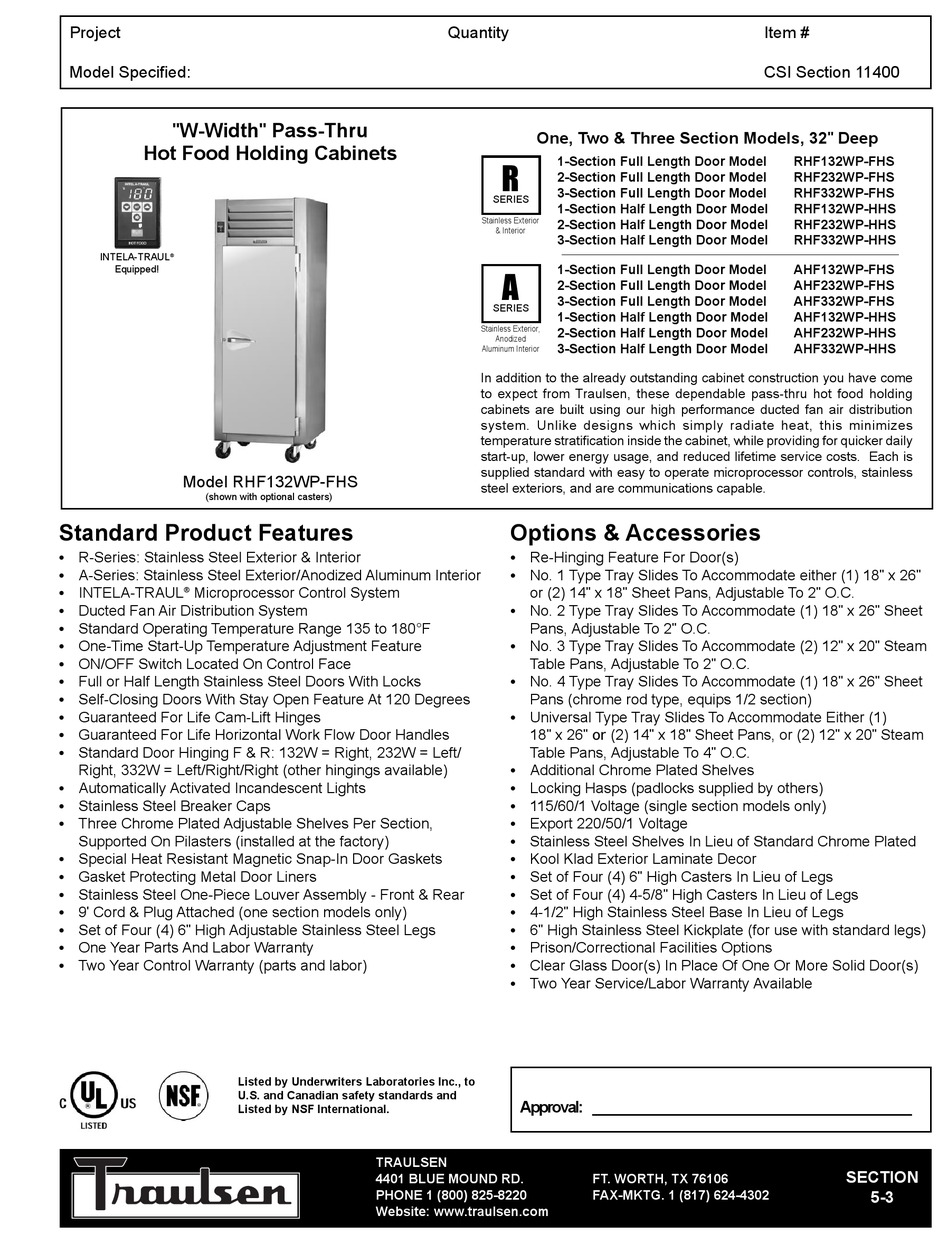

Traulsen AHF132WP-FHS Specifications

Project
Model Specified:
"W-Width" Pass-Thru
Hot Food Holding Cabinets
INTELA-TRAUL
®
Equipped!

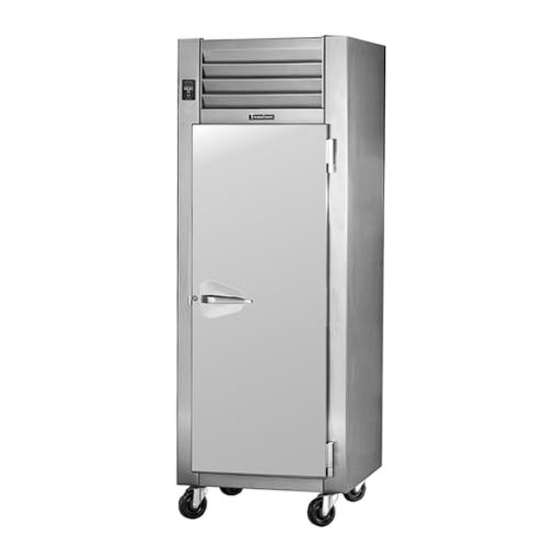

Model RHF132WP-FHS
(shown with optional casters)
Standard Product Features
• R-Series: Stainless Steel Exterior & Interior
• A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
• INTELA-TRAUL Microprocessor Control System
®
• Ducted Fan Air Distribution System
• Standard Operating Temperature Range 135 to 180°F
• One-Time Start-Up Temperature Adjustment Feature
• ON/OFF Switch Located On Control Face
• Full or Half Length Stainless Steel Doors With Locks
• Self-Closing Doors With Stay Open Feature At 120 Degrees
• Guaranteed For Life Cam-Lift Hinges
• Guaranteed For Life Horizontal Work Flow Door Handles
• Standard Door Hinging F & R: 132W = Right, 232W = Left/
Right, 332W = Left/Right/Right (other hingings available)
• Automatically Activated Incandescent Lights
• Stainless Steel Breaker Caps
• Three Chrome Plated Adjustable Shelves Per Section,
Supported On Pilasters (installed at the factory)
• Special Heat Resistant Magnetic Snap-In Door Gaskets
• Gasket Protecting Metal Door Liners
• Stainless Steel One-Piece Louver Assembly - Front & Rear
• 9' Cord & Plug Attached (one section models only)
• Set of Four (4) 6" High Adjustable Stainless Steel Legs
• One Year Parts And Labor Warranty
• Two Year Control Warranty (parts and labor)
Listed by Underwriters Laboratories Inc., to
U.S. and Canadian safety standards and
Listed by NSF International.
TRAULSEN
4401 BLUE MOUND RD.
PHONE 1 (800) 825-8220
Website: www.traulsen.com
Quantity
One, Two & Three Section Models, 32" Deep
1-Section Full Length Door Model
R
2-Section Full Length Door Model
3-Section Full Length Door Model
SERIES
1-Section Half Length Door Model
Stainless Exterior
2-Section Half Length Door Model
& Interior
3-Section Half Length Door Model
1-Section Full Length Door Model
A
2-Section Full Length Door Model
3-Section Full Length Door Model
SERIES
1-Section Half Length Door Model
Stainless Exterior,
2-Section Half Length Door Model
Anodized
3-Section Half Length Door Model
Aluminum Interior
In addition to the already outstanding cabinet construction you have come
to expect from Traulsen, these dependable pass-thru hot food holding
cabinets are built using our high performance ducted fan air distribution
system. Unlike designs which simply radiate heat, this minimizes
temperature stratification inside the cabinet, while providing for quicker daily
start-up, lower energy usage, and reduced lifetime service costs. Each is
supplied standard with easy to operate microprocessor controls, stainless
steel exteriors, and are communications capable.
Options & Accessories
• Re-Hinging Feature For Door(s)
• No. 1 Type Tray Slides To Accommodate either (1) 18" x 26"
or (2) 14" x 18" Sheet Pans, Adjustable To 2" O.C.
• No. 2 Type Tray Slides To Accommodate (1) 18" x 26" Sheet
Pans, Adjustable To 2" O.C.
• No. 3 Type Tray Slides To Accommodate (2) 12" x 20" Steam
Table Pans, Adjustable To 2" O.C.
• No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Sheet
Pans (chrome rod type, equips 1/2 section)
• Universal Type Tray Slides To Accommodate Either (1)
18" x 26" or (2) 14" x 18" Sheet Pans, or (2) 12" x 20" Steam
Table Pans, Adjustable To 4" O.C.
• Additional Chrome Plated Shelves
• Locking Hasps (padlocks supplied by others)
• 115/60/1 Voltage (single section models only)
• Export 220/50/1 Voltage
• Stainless Steel Shelves In Lieu of Standard Chrome Plated
• Kool Klad Exterior Laminate Decor
• Set of Four (4) 6" High Casters In Lieu of Legs
• Set of Four (4) 4-5/8" High Casters In Lieu of Legs
• 4-1/2" High Stainless Steel Base In Lieu of Legs
• 6" High Stainless Steel Kickplate (for use with standard legs)
• Prison/Correctional Facilities Options
• Clear Glass Door(s) In Place Of One Or More Solid Door(s)
• Two Year Service/Labor Warranty Available
Approval: ___________________________________
FT. WORTH, TX 76106
FAX-MKTG. 1 (817) 624-4302
Item #
CSI Section 11400
RHF132WP-FHS
RHF232WP-FHS
RHF332WP-FHS
RHF132WP-HHS
RHF232WP-HHS
RHF332WP-HHS
AHF132WP-FHS
AHF232WP-FHS
AHF332WP-FHS
AHF132WP-HHS
AHF232WP-HHS
AHF332WP-HHS
SECTION
5-3
