Service manual

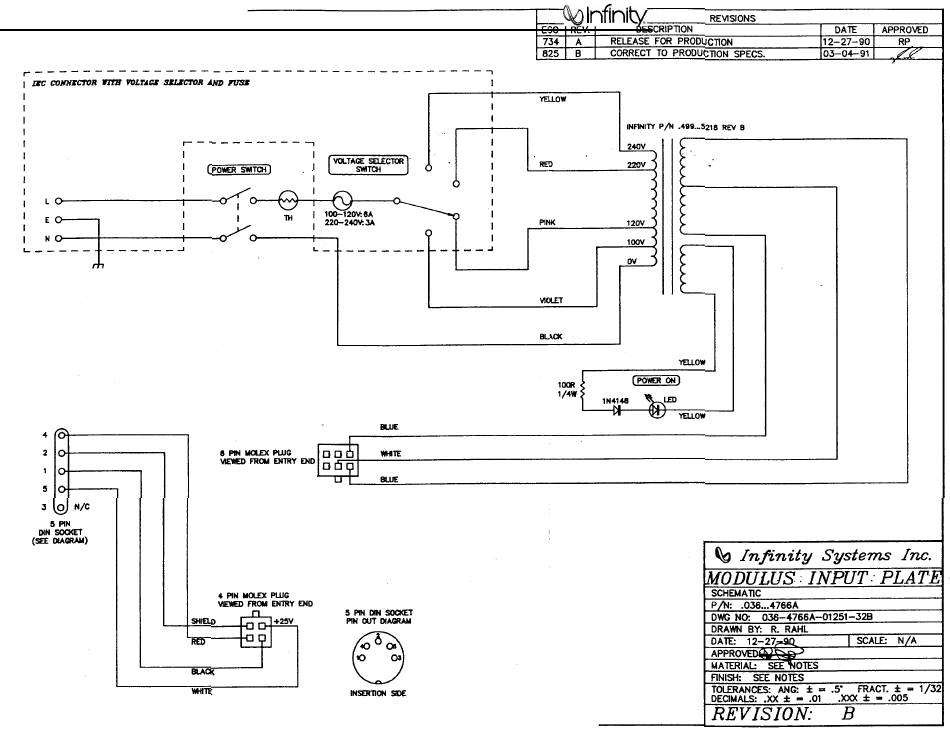

Input Plate Schematic - Infinity MODULUS Service Manual
Servo controlled subwoofer electronic control unit
