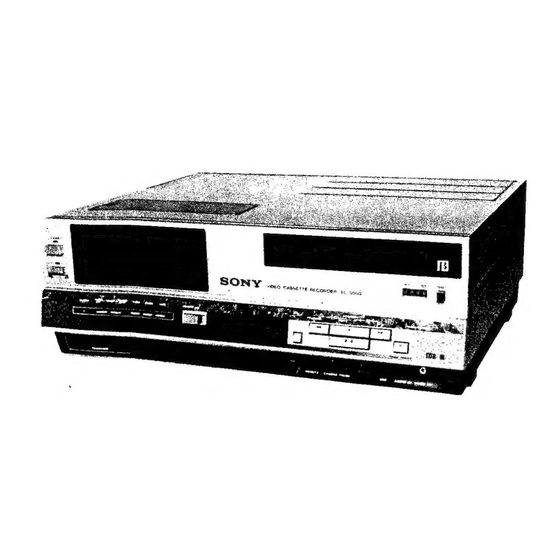

Sony SL-5000 Service Manual

Type 1 Model
Type 2 Model
Type 3 Model
November, 1981
Refer to "NOTE ON OPERATING
POWER VOLTAGE AND FREQUENCY"
on page 1-1.
BETA IIl/Il RECORD
BETA I/W/1I PLAYBACK
710system
The adjustment procedures and the circuit descriptions are not contained in this manual.
Refer to the separate-volume ''ADJUSTMENT MANUAL" and 'OPERATION MANUAL".
SPECIFICATIONS
System
Video recording system
Rotary two-head helical! scanning
EIA standards, NTSC color
VHF channels 2 - 13
UHF channels 14 - 83
Channel 3 or 4 (selectable)
75 ohms, unbalanced
Video signal
Channel coverage
VHF output signal
1.0 V (p-p), 75 ohms, unbalanced,
sync negative
Signal-to-noise ratio
Better than 45 dB
Audio
Input AUDIO IN: mini jack
100 k ohms, ~10 dBs (0 dBs = 0.775 V rms)
MIC: mini jack
—60 dBs, suitable for microphone with
600-ohm impedance
Output
AUDIO OUT:
mini jack
Less than 10 k ohms, —5 dBs (100 k ohms
load), unbalanced
Frequency response
[BJ[T:
50 - 10,000 Hz
THM: 50 - 7,000 Hz
Signal-to-noise ratio
Better than 40 dB
Tape transport
Tape speed FBL: 4.0 cmisec. (playback only)
fell: 2.0cmisec.
[AM : 1.33 cmisec.
Maximum recording time
[BH: 3 hours 20 min.
fBO: 5 hours
(with Sony L-830 cassette)
Under 4 min. (L-500)
Under 4 min. (L-500)
Fast forward time
Rewind time
nm
MICROFILM
Consumer
'tal
General
Power requirements 120 V ac +10%, 60 Hz +0.5%
Power consumption 48 W
Timer Used only for recording
Electronic digital timer
24-hour cycle, synchronized with
the power line frequency
Operating temperature
5°C to 40°C (41°F to 104°F)
Storage temperature -20°C to + 65°C (-4°F to + 149°F)
Dimensions Approx. 460 x 168 x 380 mm (w/h/d)
(18's x 65%/s x 15 inches)
incl. projecting parts and controls
Weight Approx. 13.8 kg (30 Ib 7 02)
Accessories supplied
Betamax video cassette tape (1)
EAC-24 external antenna connector (75-ohm to 300-ohm matching
transformer) (1)
EAC-25 external antenna connector (300-ohm to 75-ohm matching
transformer) (1)
75-ohm coaxial cable with F-type connectors 2 m long (6 feet) (1)
300-ohm twin lead 2 m long (6 feet) (1)
Remote control unit (1)
Channel indicating segments (1 set)
Optional accessories
Betamax video cassette tape L-250, L-500, L-750, L-830, etc.
Video head cleaning cassette L-25CL
Color video camera HVC-2000, HVC-2200 (available in the U.S.A.
and Canada)
HVC-2000E (available in other countries)
AC adaptor for the camera HVA-200 (available in the U.S.A. and
Canada)
HVA-200E (available in other countries)
Design and specifications subject to change without notice.
