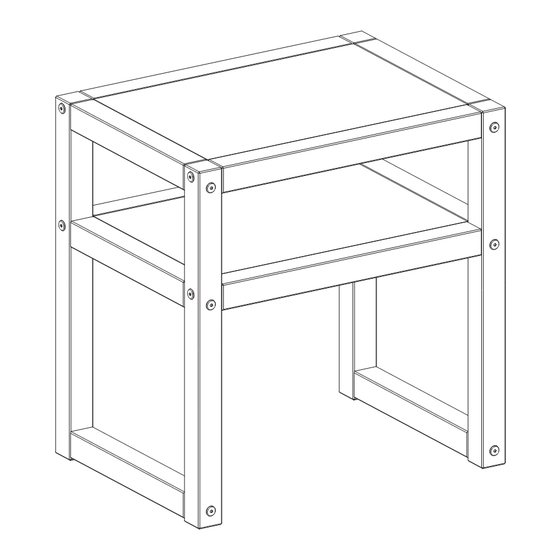

- Page 1 Multiplo Side Table READ ALL INSTRUCTIONS BEFORE ASSEMBLING SIDE TABLE. 2023 Made in Brazil. June / 2023...
- Page 2 packaging are to Side Table is intended for home use, not to be used in public institutions. (hospitals, daycares, etc.) 2023 Made in Brazil. June / 2023...
- Page 3 Multiplo Side Table - Table Parts: MANUFACTURER LABEL DO NOT REMOVE ! Tools required Phillips screwdriver You will need a Phillips head screwdriver 2023 Made in Brazil. June / 2023...
- Page 4 Identify the size and type of hardware using the illustration below: 20 - Bolts 3 1/8" (7 x 80mm) 16 - Screws 9/16" (3,5 x 14mm) 08 - Corner plate 01 - Allen wrench FOR MISSING PARTS OR HARDWARE: DO NOT CONTACT THE STORE WHERE YOU MADE YOUR PURCHASE. DO NOT CONTACT THE STORE WHERE YOU MADE YOUR PURCHASE.
- Page 5 Step 1 Sides Attach 2 parts and 1 part on to part 1 with 6 bolts , using 1 Allen wrench . Repeat this step 2 times. ATTENTION: ALIGNMENT ATTENTION 3 1/8" Bolt Allen wrench Step 2 Sides Attach part on to parts with 6 bolts , using 1 Allen wrench...
- Page 6 Step 3 Attach 2 parts 4 on to side with 2 bolts (A), using 1 Allen wrench (D). ATTENTION: ATTENTION: ALIGNMENT 3 1/8" Bolt Allen wrench Step 4 Attach 2 parts 4 on side with 2 bolts (A), using 1 Allen wrench (D). ATTENTION: 3 1/8"...
- Page 7 Step 5 Attach 8 corner plate to part with 8 screws , using a Phillips screwdriver. Repeat this step 2 times. ATTENTION! PRE-DRILLED HOLES Phillips screwdriver 9/16" Screw MANUFACTURER LABEL Corner PLEASE ASSEMBLE plate DO NOT REMOVE ! ON THE GROUND Step 6 Insert parts between parts .
- Page 8 Step 7 Attach the other side on the parts with 4 bolts A , using 1 Allen wrench 3 1/8" Bolt Allen wrench Step 8 Attach 8 screws on to corner plate and parts , using a Phillips screwdriver. Phillips screwdriver 9/16"...
