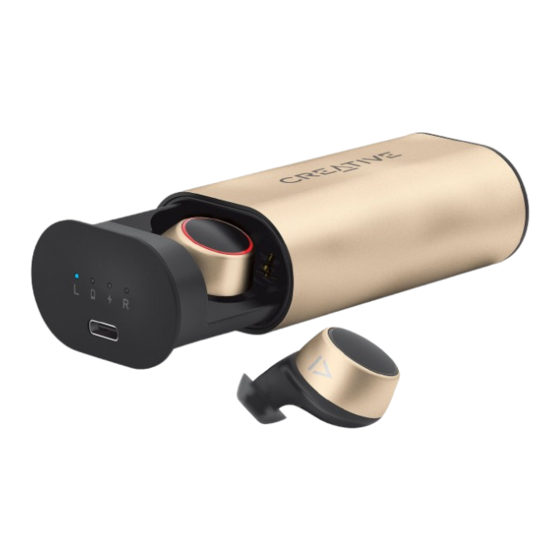

Creative OUTLIER GOLD V2 Quick Start Manual

TRUE WIRELESS SWEATPROOF IN-EARS
真无线防水入耳耳机
真無線防水入耳耳機
QUICK START QUIDE
快速入门指南
快速入門指南
使用产品前请阅读使用说明
Model No. / 型號 / 型号: EF0910
PN: 03EF091000000 Rev A
2. Controls
i) Playback Mode ii) Pause Mode
x2 x2 x2
Ambient Mode
x3 x3
x3
2s
5s
iv) Earbuds On (Bluetooth Disconnected)
v) Earbuds Off
2s 2s
5s 5s
3s
Note: When a long press is initiated, earbud will first
enter Bluetooth Pairing Mode before turning off. Each
earbud will need to be turned off manually.
LANGUAGE
1. Overview 3. Earbuds Fit Guide
a) Charging Case Battery Indicator Gently push and wiggle the earbuds into
i) Charging Indicator the respective ear canals until a good
Charging – Glowing Red seal is made to ensure proper fitting
Fully charge – Solid Green
ii) Battery Level
Low – Red
Medium –Yellow 4. Master Reset
High – Green
Earbuds will flash once in blue in
b) Left Earbud Charging Indicator
charging case when Master Reset is
c) Right Earbud Charging Indicator
complete. Master Reset is reserved for
iii) Earbuds Charging Indicator
cases where users encounter issues
Charging – Glowing Red
while earbuds are in use or during
Optimally Charged – Solid Green
situations such as: Bluetooth Pairing
Fully Charge – LED Off
failure, random LED flashing, failure to
d) USB-C Charging Port
pair secondary earbud with the main
e) Earbud LED Indicator
earbud, or to reset all data
iv) Slow Blinking Blue – Disconnected
v) Flashing Red / Blue – Bluetooth Pairing
vi) Glowing Red (In Charging Case) –
Charging
Technical Specifications
2. Controls
Headphones drivers
i) Playback Mode
• 5.6 mm Graphene-enhanced Driver
ii) Pause Mode
• Frequency Response: 20–20,000 Hz
iii) Call Mode
Microphones
iv) Earbuds On (Bluetooth Disconnected)
• Type: Omni-directional x4
Note: When a long press is initiated, earbud
• Frequency Response: 100–10,000 Hz
will first enter Bluetooth Pairing Mode
• Sensitivity (1 kHz): -42 dBV / Pa
before turning off. Each earbud will need to
be turned off manually. Interface
• USB Type-C (charging), Bluetooth 5.0
v) Earbuds Off
1. Overview
a
Charging Case Battery Indicator
i) Charging Indicator
Charging Glowing Red
Fully charged Solid Green
ii) Battery Level
Low Red
Medium Yellow
High Green
b
Left Earbud Charging Indicator
d
c
Right Earbud Charging Indicator
iii) Earbuds Charging Indicator
Charging Glowing Red
Optimally Charged Solid Green
Fully Charged LED Off
e
Earbud LED Indicator
Bluetooth
iv) Slow Blinking Disconnected v) Flashing
Blue Red / Blue Pairing
iii) Call Mode
x2 x2
Ambient Mode Ambient Mode
x3 2s
Siri Google Assistant
2s
5s
3s
Bluetooth profiles Creative True Wireless Stereo Earbuds:
• A2DP (Wireless stereo Bluetooth) Common connectivity issues
• AVRCP (Bluetooth remote control)
SUMMARY:
• HFP (Hands-free profile)
This article highlights a phenomena and
Wireless operating range recommendation for music cuting out and ear
buds that do not stay connected.
• Up to 100m
• RF Output Power: < 20 dBm When pairing a smart mobile device with TWS
(True Wireless Stereo) ear buds, the signal is
• Operating Frequency:
strongest when there is a line-of-sight between
2402–2480 MHz
the pairing devices.
Battery
If the signal passes through the body, which
• Earpiece (Left and Right)
is mostly made up of water fluid, it may get
Lithium-ion polymer battery:
absorbed, which may result in pairing difficulty.
3.7V 60 mAh 0.222 Wh
If the mobile device is already connected to the
• Battery charging case
TWS ear buds, it may result in signal lost or the
Lithium-ion polymer battery:
ear buds may get disconnected.
3.7V 450 mAh 1.665 Wh
Therefore, it is recommended to place the
Input: 5V 1A
smart mobile device on the same side as the
Total play time main connected ear bud; thereby bypassing
the body barrier. For example, left ear bud
• Up to xx hours
is paired as the main connected ear bud, the
Charging time
smart mobile device should be placed in the
• 1–2 hours
left pocket of your pants and vice versa.
Audio codec
• SBC, aptX , AAC
™
Operating temperature
Please visit creative.com/compliance/
• 0–45°C
outliergoldv2 for the user guide, safety and
regulatory information, ErP information where
applicable and battery removal instruction
which is meant strictly for independently
qualified professional.
Please visit creative.com/support/
outliergoldv2 for all other support related to
Note: Compliance markings are located at the
your product.
bottom of the product
Technical Specifications
Headphones drivers
• 5.6 mm Graphene-enhanced Driver
• Frequency Response: 20–20,000 Hz
Microphones
• Type: Omni-directional x4
• Frequency Response: 100–10,000 Hz
• Sensitivity (1 kHz): -42 dBV / Pa
Interface
• USB Type-C (charging), Bluetooth 5.0
Bluetooth profiles
• A2DP (Wireless stereo Bluetooth)
• AVRCP (Bluetooth remote control)
USB-C Charging
• HFP (Hands-free profile)
Port
Wireless operating range
• Up to 100m
• RF Output Power: < 20 dBm
• Operating Frequency: 2402–2480 MHz
Note: Compliance markings are located at the bottom of the product
vi) Glowing Red Charging
(In Charging Case)
3. Earbuds Fit Guide
x2
1. 2.
2s
Gently push and wiggle the earbuds into the respective ear canals until a good
seal is made to ensure proper fitting
4. Master Reset
5s
Earbuds will flash once in blue in charging case when Master Reset is complete.
Master Reset is reserved for cases where users encounter issues while earbuds are
in use or during situations such as: Bluetooth Pairing failure, random LED flashing,
failure to pair secondary earbud with the main earbud, or to reset all data
Serial Number / Numéro de série / Seriennummer / Número de Série / Sériové číslo / Numer
seryjny / Серийный номер / número de série / Numero di serie / Serienummer / Número de série
/ Serienummer / Sarjanumero / Serienummer / Serienummer / Sériové číslo / σειριακός αριθμός
/ 시리얼 번호 / シリアル番号 / 序列号 / 序列號:
Battery
• Earpiece (Left and Right)
Lithium-ion polymer battery:
3.7V 80 mAh 0.296 Wh
• Battery charging case
Lithium-ion polymer battery:
3.7V 900 mAh 3.33 Wh
Input: 5V 1A
Total play time
• Up to xx hours
Charging time
• 1–2 hours
Audio codec
• SBC, aptX , AAC
™
Operating temperature
• 0–45°C
© 2020 Creative Technology Ltd. All rights reserved. Creative, the Creative logo, X-FI, the X-Fi logo,
SXFI, the Super X-Fi logo, Super X-Fi ULTRADSP, 声晰飞, the 声晰飞 logo and Headphone Holography
are trademarks or registered trademarks of Creative Technology Ltd in the United States and/or
other countries. The Bluetooth® word mark and logo are owned by the Bluetooth SIG, Inc. and
any use of such marks by Creative Technology Ltd is under license. Qualcomm is a trademark of
Qualcomm Incorporated, registered in the United States and other countries. aptX is a trademark of
Qualcomm Technologies International, Ltd., registered in the United States and other countries. All
other trademarks are the property of their respective owners and are hereby recognized as such. All
specifications are subject to change without notice. Actual product may differ slightly from images
shown. Use of this product is subject to a limited warranty.
