American Standard
Non-Programmable Thermostat
ACONT102
Installation and User Guide
ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES
IMPORTANT — This Document is customer property and is to remain with this unit.
These instructions do not cover all variations in systems or provide for every possible contingency to be met in connection
with the installation. Should further information be desired or should particular problems arise which are not covered
sufficiently for the purchaser's purposes, the matter should be referred to your installing dealer or local distributor.
Pub No. 11-HD23D1-1B-EN
Part No. 37-7771002
September 2020
Advertisement
Table of Contents
Related Manuals for American Standard ACONT102
Summary of Contents for American Standard ACONT102

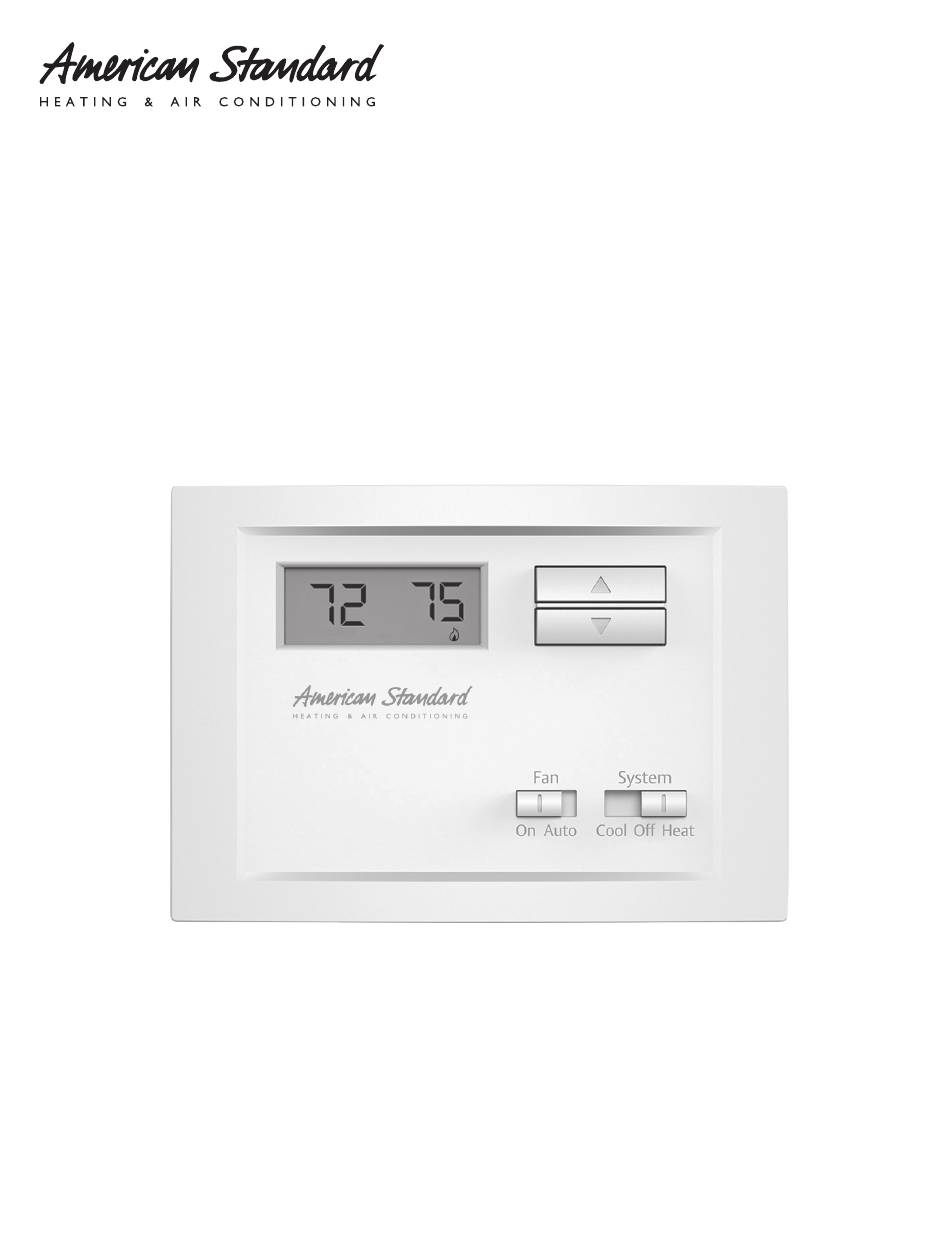

- Page 1 American Standard Non-Programmable Thermostat ACONT102 Installation and User Guide ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES IMPORTANT — This Document is customer property and is to remain with this unit. These instructions do not cover all variations in systems or provide for every possible contingency to be met in connection with the installation.
-
Page 2: Table Of Contents
Installation and User Guide Contents Safety................2 2. Product Specifications ........... 3 3. General Information ............3 Overview .............. 3 3.2 Contents ............... 3 4. Installation ............... 3 4.1 Location ............... 3 Figure 1: Placement 4.2 Mounting/Installation .......... 4 4.3 Battery Replacement........... 4 4.4 Wiring Diagrams ..........5 Cooling with TAM7/TAM9 (24V Mode) Cooling with GAF2-S Cooling with S9V2 Furnace... -
Page 3: Product Specifications

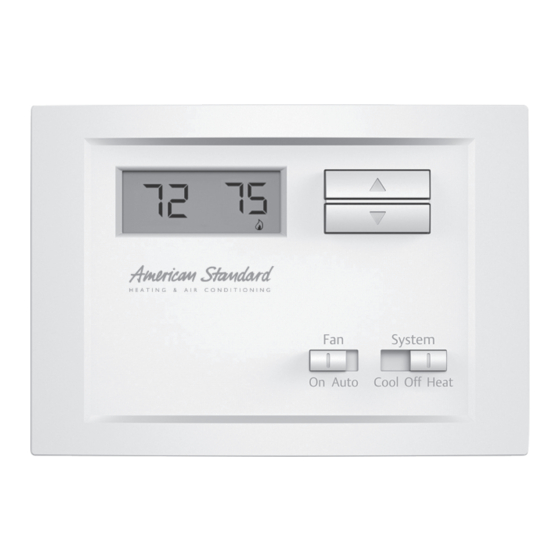

American Standard 102 Non-Programmable Thermostat Product Specifications SPECIFICATION DESCRIPTION Product Models ACONT102 Product Size 3-7/8” x 5-1/2” x 1-3/16” (HxWxD) Configurations Heat / Cool Maximum Number of Stages 1H, 1C Operating Temperature 32°I to 105°I (0 to .41°C) 2 90% UH Non Condensing Shipping Temperature Range 040°I to 150°I (040°... -
Page 4: Mounting/Installation
Installation and User Guide Record color and terminal marking of each wire. FIGURE 1. PLACEMENT OF THE 102 Disconnect the wires from the existing thermostat being careful not to allow them to fall back into the wall. Correct Incorrect Natural heat Ceiling Fan dissipation Remove the existing thermostat from the wall. -
Page 5: Wiring Diagrams
American Standard 102 Non-Programmable Thermostat 4.4 Wiring Diagrams Wiring Diagrams Cooling with TAM7/TAM9 (24V Mode) Thermostat Indoor Unit Outdoor Unit NOTES: 1) Wire third party condensate over ow switches between Y of the thermostat and Y1 of the air ow control board... -
Page 6: Cooling With S9V2 Furnace
Installation and User Guide Cooling with S9V2 Furnace Thermostat Indoor Unit Outdoor Unit NOTES: 1) Wire third party condensate over ow switches between Y of the thermostat and Y1 of the air ow control board 2) X2 is required to energize aux heat during defrost Heat Cool Package with Variable Speed Blower Thermostat... -
Page 7: Heat/Cool Package
American Standard 102 Non-Programmable Thermostat Heat/Cool Package Thermostat NOTES: 1) Wire third party condensate over ow switches between Y of the thermostat and Y1 of the air ow control board 2) X2 is required to energize aux heat during defrost... -
Page 8: Cooling With Gat2, Gam2 & Tem3
Installation and User Guide Cooling with GAT2, GAM2 & TEM3, 4 Thermostat Indoor Unit Outdoor Unit Y/Y1 NOTES: 1) Wire third party condensate over ow switches between Y of the thermostat and Y1 of the air ow control board 2) X2 is required to energize aux heat during defrost Pub. -
Page 9: Thermostat Overview
American Standard 102 Non-Programmable Thermostat THERMOSTAT OVERVIEW Before you begin using your thermostat, you should be familiar with its features, display and the location/operation of the thermostat buttons and switches. THERMOSTAT OPERATION THE THERMOSTAT BUTTONS AND SWITCHES (Up arrow) Raises temperature setting. -
Page 10: Operating Features
Installation and User Guide OPERATING FEATURES Now that you are familiar with the thermostat buttons and display, read the following information to learn about the many features of the thermostat. • SIMULTANEOUS HEATING/COOLING SETPOINT STORAGE — You can enter both your heating and cooling setpoints at the same time. -
Page 11: Troubleshooting
American Standard 102 Non-Programmable Thermostat Troubleshooting TROUBLESHOOTING Reset Operation If a voltage spike or static discharge blanks out the display or causes erratic thermostat operation you can reset the thermostat by at the same tie while moving the SYSTEM switch from OFF to HEAT. This also resets the factory defaults. - Page 12 Installation and User Guide About American Standard Heating and Air Conditioning American Standard has been creating comfortable and affordable living environments for more than a century. For more information, please visit www.americanstandardair.com. The manufacturer has a policy of continuous data improvement and it reserves the right to change design and specifications without notice. We are committed to using environmentally conscious print practices.
