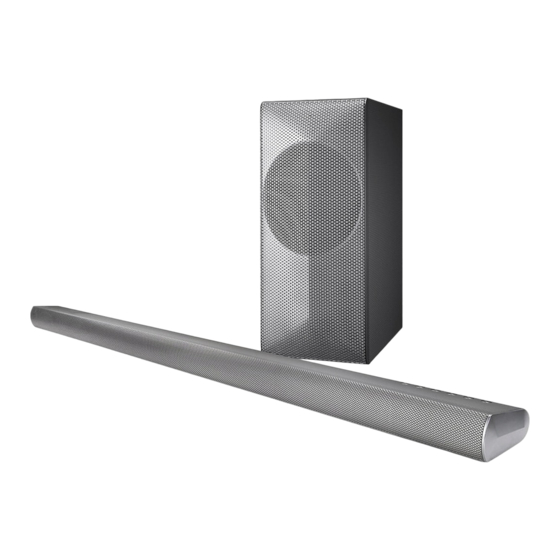

SMART Hi-Fi AUDIO
Wireless Multi-room Sound Bar
Model : MUSICFLOW HS7
LAC850M (HS7)
ENGLISH | SIMPLE MANUAL
To view the instructions of advanced features,
visit http://www.lg.com and then download
Owner's Manual.
Some of the content in this manual may differ
from your unit.
The actual product may differ from the image.
*MFL68864984*
LAC850M (HS7)
www.lg.com
Advertisement
Table of Contents
Related Manuals for LG LAC850M
Summary of Contents for LG LAC850M
- Page 1 Model : MUSICFLOW HS7 LAC850M (HS7) ENGLISH | SIMPLE MANUAL To view the instructions of advanced features, visit http://www.lg.com and then download Owner’s Manual. Some of the content in this manual may differ from your unit. The actual product may differ from the image.
- Page 2 Getting Started Getting Started Safety Information NOTICE: For safety marking information including product identification and supply ratings, please refer to the main label on the bottom or the other CAUTION surface of the product. For models using an adapter RISK OF ELECTRIC SHOCK DO NOT OPEN Only use the AC adapter supplied with this device.
- Page 3 Getting Started This device is equipped with a portable battery or Disposal of waste batteries/accumulators accumulator. Safety way to remove the battery from the equipment: Remove the old battery or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container...
- Page 4 Getting Started Declaration of Conformity Hereby, LG Electronics European Shared Service Center B.V., declares that this Wireless Multi-room Sound Bar is compliant with the essential requirements and other relevant provisions of Directive 1999/5/EC. The complete Declaration of Conformity may be requested through the following postal address: LG Electronics European Shared Service Center B.V.
-
Page 5: Table Of Contents
NOTICE Connecting to your TV Connecting to your TV – 1. Optical connection – 2. HDMI (ARC) connection – 3. Wireless LG Sound Sync connection Using Multi-Room Multi-Room Network Setup – Step 1. Home Network Requirement – Step 2. Installing “Music Flow Player”... -
Page 6: Getting Started
Getting Started Unpacking Unit Cable ties Remote Control and Batteries Adapter and Subwoofer power cord Simple Manual Optical cable Wall brackets and screws Wall bracket Foot LAN cable install guide y When mounting this unit on a wall, refer to page 22. Additional Information for some accessories Subwoofer Wireless subwoofer connection... -
Page 7: Front Panel
Getting Started Front panel A Display window D 1/! (Standby/On) B LED indicator: Shows connection status. E F (Function): Selects the function and input (Page 23) source. (OPTICAL / HDMI IN / WI-FI / Bluetooth / y White (blinking): waiting for network PORTABLE) connection F -/+ (Volume) -
Page 8: Remote Control
Getting Started Remote control SOUND EFFECT : Selects a sound effect mode. : Adjusts sound level of Treble, Bass and Sub- woofer. +/- (VOL): Adjusts speaker volume. • • • • • • • • • • b • • • • • • • • • REPEAT : Listen to your music repeatedly. -
Page 9: Connecting To Your Tv
You can control some functions of this unit by your TV’s remote control with LG Sound Sync. It is compatible with the LG TV that is supported LG Sound Sync. Make sure of the LG Sound Sync logo on your TV. -
Page 10: Using Multi-Room
Using Multi-Room Using Multi-Room Multi-Room Network Setup Step 1. Home Network Requirement a Make sure that wireless network environment using a router is installed at your home. The home router should be connected to the internet. b Connect your smart device to your home network. c Connect the speaker to the power supply. -
Page 11: Step 2. Installing "Music Flow Player" App And Media Server
Media server software allows you to access audio files stored in media server (PC, Mac or Network storage) and enjoy them on your speaker via home networking. On www.lg.com website, type model name in the search bar and find media server software on support tab. -
Page 12: Step 3. Initial Multi-Room Setup
Using Multi-Room Step 3. Initial Multi-Room Setup When installing the MUSICflow product for the first time, you can choose two types of connection as below. Option 1. Wired connection (MUSICflow Mesh Network Connection) Connect the one of MUSICflow products (sound bar, speaker or bridge) to the home router using LAN cable. Then you can connect the additional MUSICflow products (Optional) to your home network wirelessly (MUSICflow Mesh Network). - Page 13 Using Multi-Room Option 2. Wireless connection (Standard Wireless Connection) When the wired connection is unavailable between MUSICflow products and home router, MUSICflow product offers music streaming service within home router’s Wi-Fi coverage. Connect the one of MUSICflow products(sound bar or speaker) to the home router wirelessly. (Option) Then you can connect the additional MUSICflow products to your home Wi-Fi network wirelessly.
-
Page 14: Step 4. Add Speakers (Optional)
Using Multi-Room m Tip Offers music streaming service in MUSICflow system within home router’s Wi-Fi coverage. In the below case, Standard wireless connection is recommended. 1. When all speakers are within the home router’s Wi-Fi coverage. (If case that your home router supports 802.11n 2.4/5 GHz ) 2. -
Page 15: Using The Bridge
Using Multi-Room , Note for Multi-Room Setup y You can make all wireless/wired connection according to the location of the router. But we recommend that you connect the first speaker or bridge to the router using LAN cable and connect additional speakers for network stability. -
Page 16: Enjoying Multiple Musicflow Product
Enjoying Multiple MUSICflow Product 1. Home Cinema Mode (Surround Sound Mode) Simply add a LG MUSICflow sound bar to your network and synchronize it with your LG MUSICflow speakers to enjoy a home cinema system experience. If you have a bridge Bridge (Wired Connection) à... -
Page 17: Using External Device
1. Select the input source of this unit to Bluetooth function using FUNC button. “BT READY” appears on the display window. 2. Select “LG HS7 (XX:XX) or LG LAC850M (XX:XX)” on your Bluetooth device for pairing. 3. When this unit is successfully connected with your Bluetooth device, “PAIRED” will appear on the display window and change to Bluetooth device name soon. -
Page 18: Troubleshooting
Troubleshooting Troubleshooting Troubleshooting 4. Disconnect the power cord of the main unit and the wireless subwoofer. 5. Connect them again after the LED of the main unit and the wireless subwoofer is fully turned No woofer sound off. The main unit and the wireless subwoofer You can set up wireless connection manually, when will be paired automatically when you turn on your connection is not completed. - Page 19 Troubleshooting Software Update There are times that speaker disappears from the application When the MUSICflow product is connected to your home network, first of all, check whether the 1. If the speaker blinking lamp is not blinking, and firmware version is the latest on all speakers and stays as white: Even after the speaker power off the Music Flow Player application.
- Page 20 3. Even if you connected speakers with MUSICflow server program setting or firewall setting. mesh network, music sound breaks by ambient y If you are using LG Musicflow PC software, signal interference causing Wi-Fi network when you designate shared folder, the defect.
- Page 21 How can I use Spotify? y You must use the HDMI cable (Type A, High Speed HDMI™ cable with Ethernet). LG MUSICflow product supports Spotify connect method provided by Spotify. Through this, you y You must connect the HDMI OUT (TV ARC) on...
-
Page 22: Appendix
Appendix Appendix Mounting the main 2. When you mount it on a wall (concrete), use the wall plugs. You should drill some holes. A guide unit on a wall sheet (Wall bracket install guide) is supplied to drill. Use the sheet to check the point to drill. Preparation materials Unit Wall bracket install guide... -
Page 23: About Status Led's Condition
Networked standby : 5.8 W are available for download. (If all network ports are activated.) LG Electronics will also provide open source code Amplifier Total output: 360 W to you on CD-ROM for a charge covering the cost Bluetooth: Codec SBC... - Page 24 LG Customer Information Center Country Telephone 0810-144131 Austria / Österreich Slovenia / Slovenija 080-543543 0900 543 5454 (NL) Benelux 015 200 255 (BE) Schweiz / Suisse / Svizzera / 0848-543543 Switzerland České republiky nebo Slovenské CZ: 810 555 810 republiky / Českej republiky alebo...
