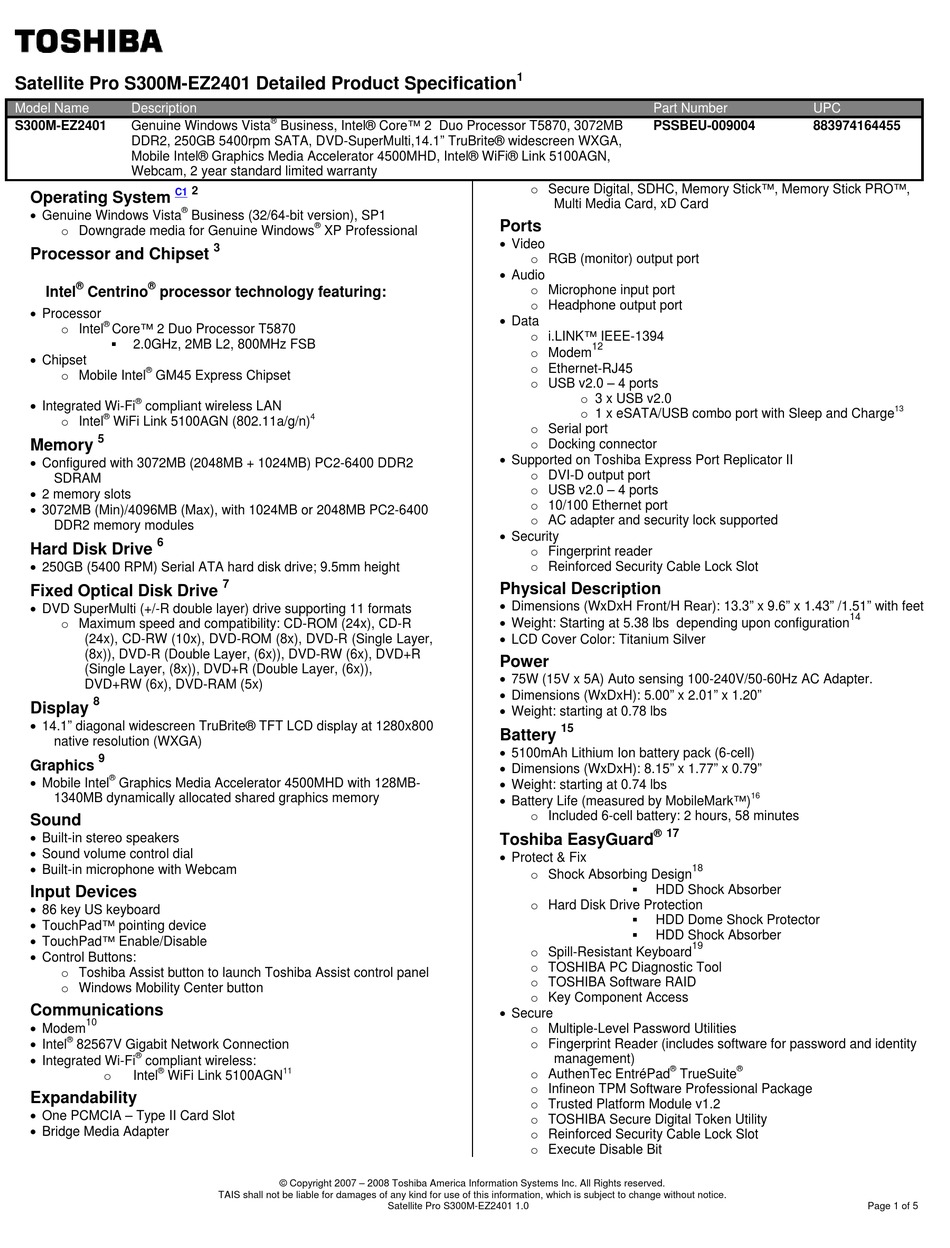

Toshiba Satellite Pro S300M-EZ2401 Specifications

Satellite Pro S300M-EZ2401 Detailed Product Specification
Model Name Description
S300M-EZ2401 Genuine Windows Vista
DDR2, 250GB 5400rpm SATA, DVD-SuperMulti,14.1" TruBrite® widescreen WXGA,
Mobile Intel® Graphics Media Accelerator 4500MHD, Intel® WiFi® Link 5100AGN,
Webcam, 2 year standard limited warranty
2
C1
Operating System
 Genuine Windows Vista ®
Business (32/64-bit version), SP1
o Downgrade media for Genuine Windows
Processor and Chipset
® ®
Intel Centrino processor technology featuring:
 Processor
®
o Intel Core™ 2 Duo Processor T5870

2.0GHz, 2MB L2, 800MHz FSB
 Chipset
®
o Mobile Intel GM45 Express Chipset
 Integrated Wi-Fi
®
compliant wireless LAN
®
o Intel WiFi Link 5100AGN (802.11a/g/n)
5
Memory
 Configured with 3072MB (2048MB + 1024MB) PC2-6400 DDR2
SDRAM
 2 memory slots
 3072MB (Min)/4096MB (Max), with 1024MB or 2048MB PC2-6400
DDR2 memory modules
6
Hard Disk Drive
 250GB (5400 RPM) Serial ATA hard disk drive; 9.5mm height
Fixed Optical Disk Drive
 DVD SuperMulti (+/-R double layer) drive supporting 11 formats
o Maximum speed and compatibility: CD-ROM (24x), CD-R
(24x), CD-RW (10x), DVD-ROM (8x), DVD-R (Single Layer,
(8x)), DVD-R (Double Layer, (6x)), DVD-RW (6x), DVD+R
(Single Layer, (8x)), DVD+R (Double Layer, (6x)),
DVD+RW (6x), DVD-RAM (5x)
8
Display
 14.1" diagonal widescreen TruBrite® TFT LCD display at 1280x800
native resolution (WXGA)
9
Graphics
 Mobile Intel
®
Graphics Media Accelerator 4500MHD with 128MB-
1340MB dynamically allocated shared graphics memory
Sound
 Built-in stereo speakers
 Sound volume control dial
 Built-in microphone with Webcam
Input Devices
 86 key US keyboard
 TouchPad™ pointing device
 TouchPad™ Enable/Disable
 Control Buttons:
o Toshiba Assist button to launch Toshiba Assist control panel
o Windows Mobility Center button
Communications
10
 Modem
 Intel
®
82567V Gigabit Network Connection
 Integrated Wi-Fi
®
compliant wireless:
®
Intel WiFi Link 5100AGN
o
Expandability
 One PCMCIA – Type II Card Slot
 Bridge Media Adapter
®
Business, Intel® Core™ 2 Duo Processor T5870, 3072MB
®
XP Professional
3
4
7
11
© Copyright 2007 – 2008 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
Satellite Pro S300M-EZ2401 1.0
1
Part Number
PSSBEU-009004
o Secure Digital, SDHC, Memory Stick™, Memory Stick PRO™,
Multi Media Card, xD Card
Ports
 Video
o RGB (monitor) output port
 Audio
o Microphone input port
o Headphone output port
 Data
o i.LINK™ IEEE-1394
12
o Modem
o Ethernet-RJ45
o USB v2.0 – 4 ports
o 3 x USB v2.0
o 1 x eSATA/USB combo port with Sleep and Charge
o Serial port
o Docking connector
 Supported on Toshiba Express Port Replicator II
o DVI-D output port
o USB v2.0 – 4 ports
o 10/100 Ethernet port
o AC adapter and security lock supported
 Security
o Fingerprint reader
o Reinforced Security Cable Lock Slot
Physical Description
 Dimensions (WxDxH Front/H Rear): 13.3" x 9.6" x 1.43" /1.51" with feet
 Weight: Starting at 5.38 lbs depending upon configuration
 LCD Cover Color: Titanium Silver
Power
 75W (15V x 5A) Auto sensing 100-240V/50-60Hz AC Adapter.
 Dimensions (WxDxH): 5.00" x 2.01" x 1.20"
 Weight: starting at 0.78 lbs
15
Battery
 5100mAh Lithium Ion battery pack (6-cell)
 Dimensions (WxDxH): 8.15" x 1.77" x 0.79"
 Weight: starting at 0.74 lbs
 Battery Life (measured by MobileMark™)
o Included 6-cell battery: 2 hours, 58 minutes
17
®
Toshiba EasyGuard
 Protect & Fix
o Shock Absorbing Design

HDD Shock Absorber
o Hard Disk Drive Protection

HDD Dome Shock Protector

HDD Shock Absorber
o Spill-Resistant Keyboard
o TOSHIBA PC Diagnostic Tool
o TOSHIBA Software RAID
o Key Component Access
 Secure
o Multiple-Level Password Utilities
o Fingerprint Reader (includes software for password and identity
management)
®
o AuthenTec EntréPad
o Infineon TPM Software Professional Package
o Trusted Platform Module v1.2
o TOSHIBA Secure Digital Token Utility
o Reinforced Security Cable Lock Slot
o Execute Disable Bit
UPC
883974164455
14
16
18
19
®
TrueSuite
13
Page 1 of 5
