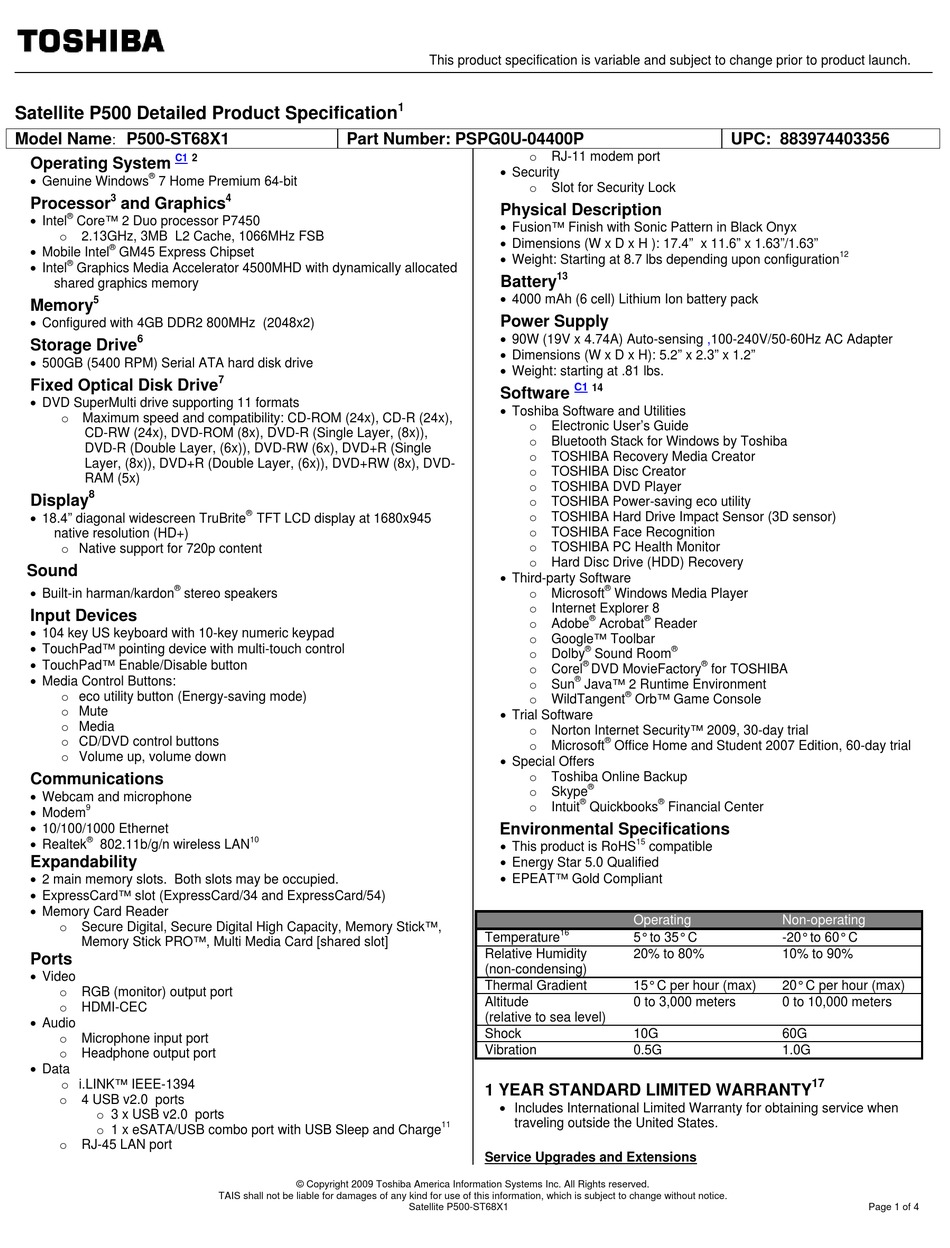

Toshiba Satellite P500-ST68X1 Specifications

Satellite P500 Detailed Product Specification
Model Name P500-ST68X1
:
C1 2
Operating System
 Genuine Windows
®
7 Home Premium 64-bit
3
Processor and Graphics
 Intel
®
Core™ 2 Duo processor P7450
2.13GHz, 3MB L2 Cache, 1066MHz FSB
o
 Mobile Intel
®
GM45 Express Chipset
 Intel
®
Graphics Media Accelerator 4500MHD with dynamically allocated
shared graphics memory
5
Memory
 Configured with 4GB DDR2 800MHz (2048x2)
6
Storage Drive
 500GB (5400 RPM) Serial ATA hard disk drive
Fixed Optical Disk Drive
 DVD SuperMulti drive supporting 11 formats
o Maximum speed and compatibility: CD-ROM (24x), CD-R (24x),
CD-RW (24x), DVD-ROM (8x), DVD-R (Single Layer, (8x)),
DVD-R (Double Layer, (6x)), DVD-RW (6x), DVD+R (Single
Layer, (8x)), DVD+R (Double Layer, (6x)), DVD+RW (8x), DVD-
RAM (5x)
8
Display
 18.4" diagonal widescreen TruBrite
native resolution (HD+)
o Native support for 720p content
Sound
 Built-in harman/kardon
®
stereo speakers
Input Devices
 104 key US keyboard with 10-key numeric keypad
 TouchPad™ pointing device with multi-touch control
 TouchPad™ Enable/Disable button
 Media Control Buttons:
o eco utility button (Energy-saving mode)
o Mute
o Media
o CD/DVD control buttons
o Volume up, volume down
Communications
 Webcam and microphone
 Modem
9
 10/100/1000 Ethernet
 Realtek
®
802.11b/g/n wireless LAN
Expandability
 2 main memory slots. Both slots may be occupied.
 ExpressCard™ slot (ExpressCard/34 and ExpressCard/54)
 Memory Card Reader
Secure Digital, Secure Digital High Capacity, Memory Stick™,
o
Memory Stick PRO™, Multi Media Card [shared slot]
Ports
 Video
RGB (monitor) output port
o
HDMI-CEC
o
 Audio
Microphone input port
o
Headphone output port
o
 Data
o i.LINK™ IEEE-1394
4 USB v2.0 ports
o
o 3 x USB v2.0 ports
o 1 x eSATA/USB combo port with USB Sleep and Charge
RJ-45 LAN port
o
Part Number: PSPG0U-04400P
4
7
®
TFT LCD display at 1680x945
10
© Copyright 2009 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
This product specification is variable and subject to change prior to product launch.
1
RJ-11 modem port
o
 Security
Slot for Security Lock
o
Physical Description
 Fusion™ Finish with Sonic Pattern in Black Onyx
 Dimensions (W x D x H ): 17.4" x 11.6" x 1.63"/1.63"
 Weight: Starting at 8.7 lbs depending upon configuration
13
Battery
 4000 mAh (6 cell) Lithium Ion battery pack
Power Supply
 90W (19V x 4.74A) Auto-sensing ,100-240V/50-60Hz AC Adapter
 Dimensions (W x D x H): 5.2" x 2.3" x 1.2"
 Weight: starting at .81 lbs.
C1
Software
 Toshiba Software and Utilities
Electronic User's Guide
o
Bluetooth Stack for Windows by Toshiba
o
TOSHIBA Recovery Media Creator
o
TOSHIBA Disc Creator
o
TOSHIBA DVD Player
o
TOSHIBA Power-saving eco utility
o
TOSHIBA Hard Drive Impact Sensor (3D sensor)
o
TOSHIBA Face Recognition
o
TOSHIBA PC Health Monitor
o
Hard Disc Drive (HDD) Recovery
o
 Third-party Software
Microsoft
o
Internet Explorer 8
o
Adobe
o
Google™ Toolbar
o
Dolby
o
Corel
o
®
Sun
o
WildTangent
o
 Trial Software
Norton Internet Security™ 2009, 30-day trial
o
Microsoft
o
 Special Offers
Toshiba Online Backup
o
Skype
o
Intuit
o
Environmental Specifications
 This product is RoHS
 Energy Star 5.0 Qualified
 EPEAT™ Gold Compliant
16
Temperature
Relative Humidity
(non-condensing)
Thermal Gradient
Altitude
(relative to sea level)
Shock
Vibration
1 YEAR STANDARD LIMITED WARRANTY
 Includes International Limited Warranty for obtaining service when
traveling outside the United States.
11
Service Upgrades and Extensions
Satellite P500-ST68X1
UPC: 883974403356
14
®
Windows Media Player
® ®
Acrobat Reader
® ®
Sound Room
® ®
DVD MovieFactory for TOSHIBA
Java™ 2 Runtime Environment
®
Orb™ Game Console
®
Office Home and Student 2007 Edition, 60-day trial
®
® ®
Quickbooks Financial Center
15
compatible
Operating
5° to 35° C
20% to 80%
15° C per hour (max)
0 to 3,000 meters
10G
0.5G
12
Non-operating
-20° to 60° C
10% to 90%
20° C per hour (max)
0 to 10,000 meters
60G
1.0G
17
