- Page 1 Deco X10-4G Cat 6 Up to 300 Mbps Superior Mesh Wi-Fi, Everywhere User Guide 4G+ AX1500 Whole Home Mesh Wi-Fi 6 Gateway 1910013501 REV1.0.0 © 2023 TP-Link...
-
Page 2: Table Of Contents
Contents About This Guide ····································································································································································1 Appearance ···············································································································································································2 Before You Start ·····································································································································································3 Set Up Your Deco for 3G/4G Router Mode ··············································································································4 Set Up Your Deco for Wi-Fi Router Mode ··················································································································8 Troubleshooting ···································································································································································12 Authentication ·······································································································································································15... -
Page 3: About This Guide
• A Technical Community is provided for you to discuss our products Use of WPA3 encryption requires clients to also support the at https://community.tp-link.com. corresponding feature. • Our Technical Support contact information can be found at the Help center of the Deco app and the Contact Technical Support page at https://www.tp-link.com/support. -
Page 4: Appearance

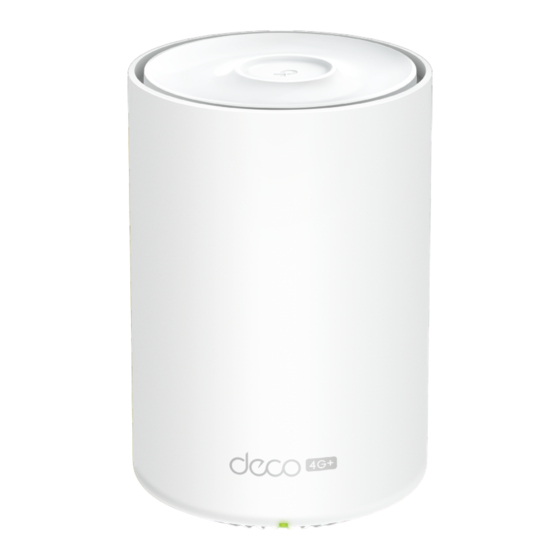

Appearance Each Deco has an LED that changes color according to its status, three RJ-45 Ethernet ports, two external antennas port, a SIM card slot, a power slot, and a Reset button. Tip: The product label can be found at the bottom of the product. Reset Button: Pulse Yellow: Press for 1 second and release to reset Deco to factory... -
Page 5: Before You Start
Before You Start You can set your Deco as a 3G/4G router or a Wi-Fi router to meet the needs of different network scenarios. 3G/4G Router Mode When working in 3G/4G Router mode, Deco connects to the internet via a SIM card inserted. Follow Set Up Your Deco for 3G/4G Router Mode to set up your Deco. -
Page 6: Set Up Your Deco For 3G/4G Router Mode
3. Select your Deco model Scan the QR code below or go to Google Open the app and log in with your TP-Link ID. If Search for and select your Deco model. If Play or the App Store to download the Deco you don’t have a TP-Link ID, create one first. - Page 7 4. Scan QR code or set up manually 5. Choose an operation mode 6. Insert the SIM card Scan the QR code for a quicker setup. You can Select Use as a 3G/4G Router. Push the SIM card into the slot of Deco. also set it up manually.
- Page 8 7. Specify your Deco's location 8. Set up your SIM card 9. Create your Wi-Fi network Select or custom a location for your Deco. Confirm or customize the SIM card Set a network name and a password. These The location will be used as the name of your information.
- Page 9 10. Connect to your Wi-Fi network 11. Setup complete Connect your smartphone/tablet to the Your Deco network is now up. Connect all Deco's Wi-Fi. devices to the network.
-
Page 10: Set Up Your Deco For Wi-Fi Router Mode
3. Select your Deco model Scan the QR code below or go to Google Open the app and log in with your TP-Link ID. If Search for and select your Deco model. If Play or the App Store to download the Deco you don’t have a TP-Link ID, create one first. - Page 11 4. Scan QR code or set up manually 5. Choose an operation mode 6. Plug in and power on Deco Scan the QR code for a quicker setup. You can Select Use as a Wi-Fi Router. Power off your modem. Connect your Deco to also set it up manually.
- Page 12 8. Connect your Deco to the internet 9. Create your Wi-Fi network 7. Specify your Deco's location Select the internet connection type and enter Set a network name and a password. These Select or custom a location for your Deco. the information.
- Page 13 10. Connect to your Wi-Fi network 11. Setup complete Connect your phone/tablet to the Deco's Wi- Your Deco network is now up. You can connect your devices to the Deco network.
-
Page 14: Troubleshooting
Deco. If problems still exist, contact us: https://www.tp-link.com/support Q1. What should I do if I fail to connect to the internet over the mobile connection? • Verify that your SIM card is an NR or LTE card. - Page 15 DHCP Server function from the Deco’s Ethernet port and try again. If it doesn't work, try the following guide. • Visit 192.168.68.1 on a web browser and log in with your TP-Link ID. Tap Internet and check the Internet IP Address.
- Page 16 Contact your ISP for the necessary information. Q6. How can I find a suitable spot for my Deco? Refer to https://www.tp-link.com//support/faq/1446/ Q7. What can I do if the Deco app isn't working properly? Refer to...
-
Page 17: Authentication
LTE Band 1,3,7,8,20,28,38, 40 / Power Class 3 EU Declaration of Conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011 /65/EU and (EU) 2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/ RF Exposure Information This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way... - Page 18 SI SK UK(NI) UKCA Mark UK Declaration of Conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca/...
- Page 19 NCC Notice & BSMI Notice: 注意！ 取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。 前述合法通信，指依電信管理法規定作業之無線電通信。 低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 應避免影響附近雷達系統之操作。 減少電磁波影響，請妥適使用。 安全諮詢及注意事項 • 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。 • 清潔本產品之前請先切斷電源。請勿使用液體、噴霧清潔劑或濕布進行清潔。 • 注意防潮，請勿將水或其他液體潑灑到本產品上。 • 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。 • 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。 • 不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。 限用物質含有情況標示聲明書 設備名稱： 型號（型式）： Equipment name: Type designation (Type) 4G+ AX1500 Whole Home Mesh Wi-Fi 6 Deco X10-4G Gateway...
- Page 20 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 Unit Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (PBB) (PBDE) ○ ○ ○ ○ ○ ○ 外殼 ○ ○ ○ ○...
- Page 21 • Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us. • Do not use damaged charger or USB cable to charge the device. • Do not use any other chargers than those recommended. •...
- Page 22 Symbol Explanation Polarity of output terminals Indoor use only Dangerous voltage Caution, risk of electric shock Energy efficiency Marking Protective earth Earth Frame or chassis Functional earthing Caution, hot surface Caution Operator’s manual Stand-by...
- Page 23 Symbol Explanation “ON”/”OFF” (push-push) Fuse Fuse is used in neutral N RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
