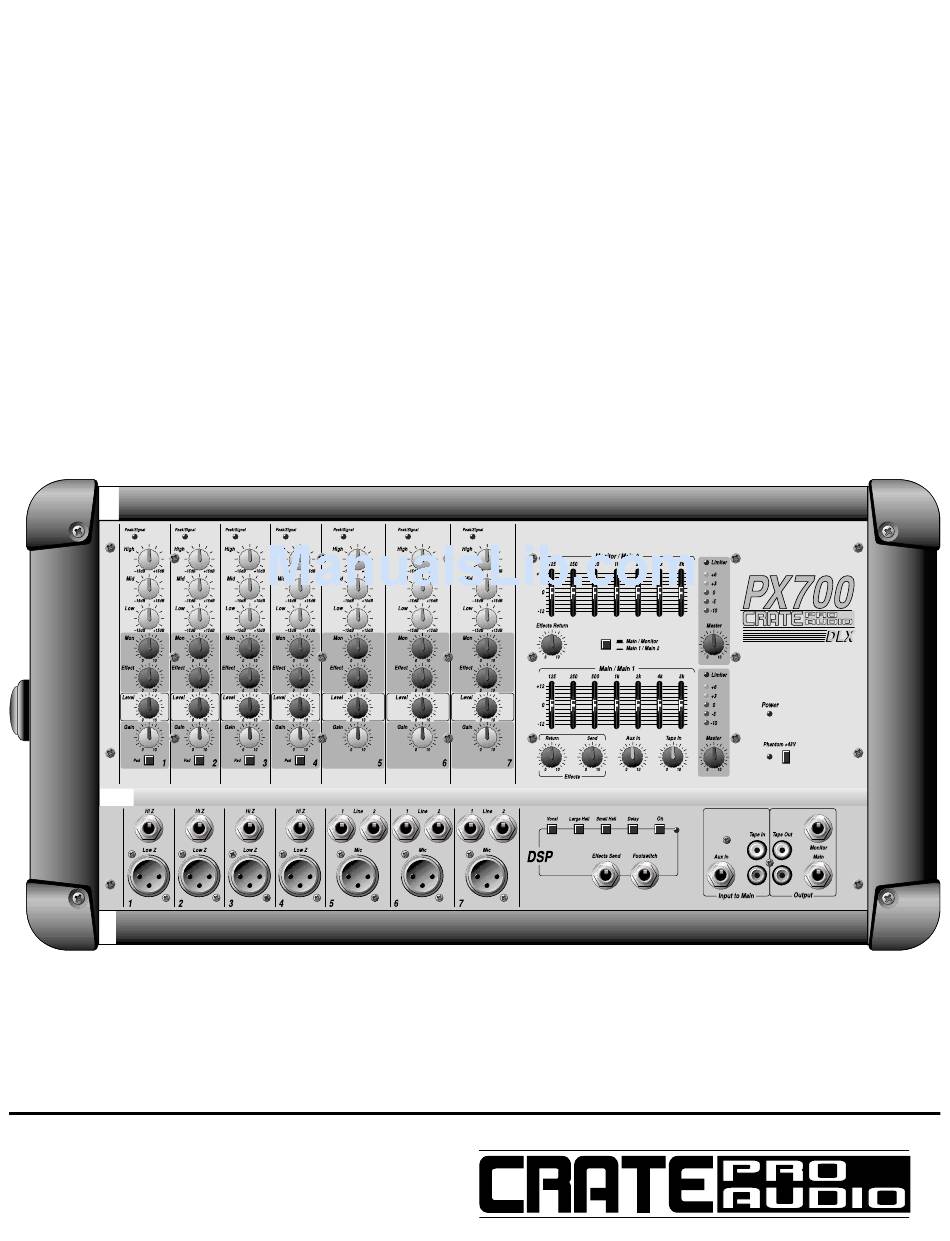

- Page 1 User’s Guide for the CRATE PRO AUDIO PX700DLX/ PX900DLX Powered Mixer with Digital Signal Processing In order to achieve maximum performance from your new Crate Pro Audio Mixer we recommend that you read this user’s guide prior to its use.
-
Page 2: Table Of Contents
You are now the proud owner of one of the most compact, user-friendly, and efficient powered mixers available, the Crate Pro Audio PX700DLX/PX900DLX with Digital Signal Processing. In order to derive the most benefit from the mixer, and to fully understand and appreciate its flexibility and versatility, please familiarize yourself with the mixer by reading through this User’s Guide prior to its use. -
Page 3: Features
PX700DLX/PX900DLX Powered Mixer Features: The Input Channels: • Peak/Signal LEDs for optimum level settings • Three bands of equalization • Monitor, effects, and main level controls • Gain control • Pad switch (channels 1-4 only) to accommodate “hot” signals • 1/4” balanced low impedance and XLR balanced high impedance input jacks •... -
Page 4: The "Mono" Input Channels (1-4)
The “Mono” Input Channels (1-4): PX700DLX/PX900DLX Powered Mixer 1. PEAK/SIGNAL LED: This LED will illuminate green when a signal is present at the High or Low Z inputs. When the sig- nal nears clipping, the LED will illuminate red. (See Gain control, #8.) -
Page 5: The "Stereo" Input Channels (5-7/5-9)
PX700DLX/PX900DLX Powered Mixer The “Stereo” Input Channels (5-7/5-9): 12. PEAK/SIGNAL LED: This LED will illuminate green when a signal is present at the High or Low Z inputs. When the signal nears clipping, the LED will illumi- nate red. (See Gain control, #19.) 13. -
Page 6: The Master Section
When this switch is in the out position, the Main/Main 1 graphic EQ (#27) controls the signal to power amp #1, the output of which PX700DLX/PX900DLX Powered Mixer 30. EFFECTS SEND: Use this control to set the overall signal level 31. -
Page 7: The Rear Panel
44. MAIN OUT: Use this jack to send a line level, main mix signal to an external power amplifier (if used), a recording console, or to the aux in jack of another PX700DLX/PX900DLX. SLEEVE FOOTSWITCH SPEAKERS... -
Page 8: Technical Specifications
POWER CONSUMPTION 200W SIZE AND WEIGHT PX700DLX: 18.9” (480mm) W x 10.8” (275mm) H x 10.8” (275mm) D; 37.5 lbs (17kg) PX900DLX: Due to ongoing product development and improvement, the specifications contained herein are subject to change without notice. 21.6” (546mm) W x 10.8” (275mm) H x 10.8” (275mm) D; 39 lbs (17.7kg) www.crateproaudio.com...
