Summary of Contents for JBL LSR6325P
- Page 1 LSR6325P ed Studio Monitor System Owner’s Manual...
-
Page 2: Important Safety Instructions
The IEC fuse symbol pictured at the left represents an approved, user replaceable fuse. When replacing a fuse, make sure to replace with only the correct type and fuse rating. 1. Read lnstructions - Before operating your new JBL product, please read all safety and operating instructions. - Page 3 OU D’ELECTROCUTION, N’EXPOSEZ PAS CET ARTICLEA A LA PLUIE OU A L’HUMIDITE. dential and the copyright of JBL Professional. To convey its contents, in part of it whole, to any party without prior written authorization is a violation of the copyright.
-
Page 4: Table Of Contents
Frequency Response Adjustment ................8-9 80 Hz High Pass Filter ....................9 Boundary Compensation .................... 9 LED Indication ......................9 Mounting ........................9-10 LSR6325P Systems with the LSR6312SP Subwoofer ............... 10 Specifications System Specifications ....................11 Transducer Specifications ..................12 Performance Graphs ....................13 Appendix: Wiring Recommendations .................. -
Page 5: Introduction
Linear Dynamics Aperture – Contoured ports virtually eliminate high-end turbulence found in traditional port designs. This provides more accurate low frequency performance at higher output levels. THX® pm3™ approved – The LSR6325P is THX approved for use in the most demanding production ap- plications and environments Balanced XLR and unbalanced RCA inputs –... -
Page 6: Set-Up
Magnetic Shielding – The LSR6325P is magnetically shielded to allow use in close proximity to CRT video and computer displays. Mounting Options – The LSR6325P enclosure includes mounting points to provide flexibility and allow you to optimize placement, particularly in small environments. -

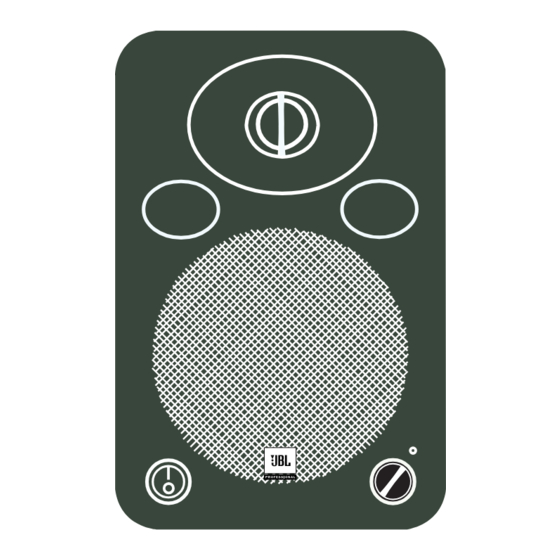

Page 7: Front Panel Drawing
CBCBCBBB... -
Page 8: Audio Connections
The nominal input level of the LSR6325P XLR input is +4 dBu and -10 dBV for the RCA input. A nominal level to these inputs will produce an output of 96 dB SPL at a distance of 1 meter in an anechoic environment. This allow the user to get a good match when using either professional or semi professional equipment. -
Page 9: 80 Hz High Pass Filter
LED Indication – A single bi-color LED indicator is located on the front of the LSR6325P. In normal operation, the LED will be illuminated GREEN. At the onset of amplifi er clipping in either the low or high frequency ampli- fi... -
Page 10: Lsr6325P Systems With The Lsr6312Sp Subwoofer
The addition of the LSR6312SP Subwoofer provides an exceptionally accurate system with bass extension to 26 Hz, even greater SPL capability, and the extra bene t of JBL RMC™ Room Mode Correction. RMC is an electronic system designed by JBL Professional and built into the subwoofer, which corrects low frequency inaccuracies caused by room modes or standing waves in the listening environment. -
Page 11: Specifications
Specifications System: Frequency Response (+1, -2 dB): 70 Hz – 20 kHz Enclosure Resonance Frequency: 55 Hz Low Frequency Extension: User controls set to default -3 dB: 65 Hz -6 dB: 56 Hz -10 dB: 48 Hz Low – High Frequency Crossover: 2.3 kHz 4th –... -
Page 12: Transducer Specifications
JBL continually engages in research related to product improvement. New materials, production methods and design refinement are introduced into existing products without notice as a routine expression of that philosophy. For this reason, any current JBL product may differ in some respect from its published description, but will always equal or exceed the original design speci cations... -
Page 13: Performance Graphs
-100 -200 -300 -400 -500 -600 -700 -800 -900 -1000 1000 10000 Frequency... -
Page 14: Appendix: Wiring Recommendations
SHIELD at the source end but not at the LSR input. The LSR6325P was designed to output a level of 96 dB SPL at 1 meter with a +4 dBu signal applied to the XLR input. If additional gain is required from a balanced output, Diagram B can be used with the RCA input. - Page 15 Diagram C Diagram D and E are similar. In Diagram E, a link is added between Pin 3 and Pin 2 of the XLR connector. In some cases, this could be required if hum is encountered. Diagram D Diagram E...
-
Page 16: Warranty Statement
Department), 8500 Balboa Boulevard, PO. Box 2200, Northridge, California 91329 (800/852-5776). We may direct you to an authorized JBL Service Agency or ask you to send your unit to the factory for repair. Either way, you’ll need to present the original bill of sale to establish the date of purchase. Please do not ship your JBL product to the factory without prior authorization. -
Page 17: Jbl Professional Contact Information
JBL Professional Contact Information Mailing Address: Outside the U.S.A. JBL Professional Contact the JBL Professional Distributor in your area. A 8500 Balboa Blvd. complete list of JBL Professional International Distributors Northridge, CA 91329 is provided at our U.S.A. Shipping Address:... - Page 18 JBL Professional 8500 Balboa Boulevard P . O.Box 2200 Northridge, California 91329 U.S.A. LSR6325P Manual 98100056-00 CRP 1M 6/04...
