Sansui D-X219WR Service Manual

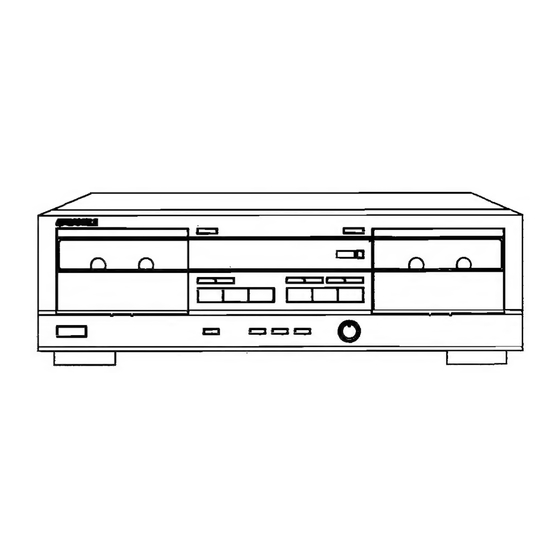

D—X219WR
_ STEREO CASSETTE DECK
CAUTION
4
2.
=
. Parts identified by the /\ symbol on the schematic diagram and the parts list are critical for safety. Use only replacement parts that
have critical characteristics recommended by the manufacturer.
Make leakage-current or resistance measurements to determine that exposed parts are acceptably insulated from the supply circuit
before returning the appliance to the customer.
NOTICE
. The symbols UL, CSA, EU, SS and XX (EXPORT) on the parts list and the schematic diagram mean followings respectively.
ULICSA essstecsceeaciacieenntstxises Manufactured for U.S.A. and Canadian market.
(UL: Underwriters Laboratories approval model.)
EUs sevatecscetes cavcchensiaatease aeaveae Manufactured for European market.
SS5 sc tesbetn tie es Manufactured for Saudi Arabian market.
KX atasecudtesiieseeyescoecsvesnechasertere Standard Version.
(EXPORT)
NON MARK... eeceeeeeeeseeeee Common Parts.
. Some printed circuit boards are not supplied assembled. To separate these in this service manual, the part numbers are not indicated
for these boards. However, part numbers for individual parts are indicated.
. Since some capacitors and resistors are omitted from parts lists in this service manual, refer to the Common Parts List for capacitors
and resistors, which was issued on June 1987.
4. Abbreviations in this service manual are as follows:
Abbreviations List
C.R.: Carbon Resistor C.K.: Ceramic Capacitor M.C.: Mylar Capacitor
S.R.: Semiconductor Capacitor E.C.: Electrolytic Capacitor V.R.: Variable Resistor
M.R.: Metal Film Resistor E.L.: Low Leak Electrolytic Capacitor S.V.R.:Semi-Variable Resistor
F.R.: Fusing Resistor E.B.: Bi-Polar Electrolytic Capacitor SW.: Switch
C.C.: Ceramic Capacitor, E.B.L.: Low Leak Bi-Polar S.C.: Styrol Capacitor
Temperature Compensation Electrolytic Capacitor
Specifications
Track format .........cccecee 4-track/2-channel system Power consumption ............. 22 Watts
Tape Speed ........ eee eeeeceeeeee 4.8cm/sec. Dimensions ...........2.::0cseeee 430 mm (16-15/16") W
Wow?/lflutter occ ceeeecsseeees 0.09% max. (WRMS) 132 mm (5-3/16") H
st forwarding 255 mm (10-1/32") D
inding) time ........... ee Approx. 110 sec. WEIGH .......... eee eects eeeeeeeeees 4.4kgs (9.7!bs) net
(for C-60 tape)
quency response
Normal tape (LH) .............. 125 to 12.500Hz +4dB
Signal-to-noise ratio
DOLBY NR OFF ......... eee Better than 50dB
DOLBY-B NRON ...... ee. Better than 60dB
Input sensitivity/impedance
Power requirements ............. 120/230V (50/60Hz)
e Design and specifications subject to change without notice for
improvements.
e Due to local laws and regulations, this unit sold in some areas are
not equipped with variable voltage selectors.
© Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation. "DOLBY", the double—D
symbol ( pi ¢] ) are trade marks of Dolby Laboratories Licensing
Corporation.
LINE IN (REC)... 100 mV/40k ohms
For U.S.A. and Canada.....120V (60Hz)
EUrOpean ...........::seceeeeeeeee 230V (50Hz)
ASIA. tssccsieeee ieee eA 115/230V (50/60Hz)
