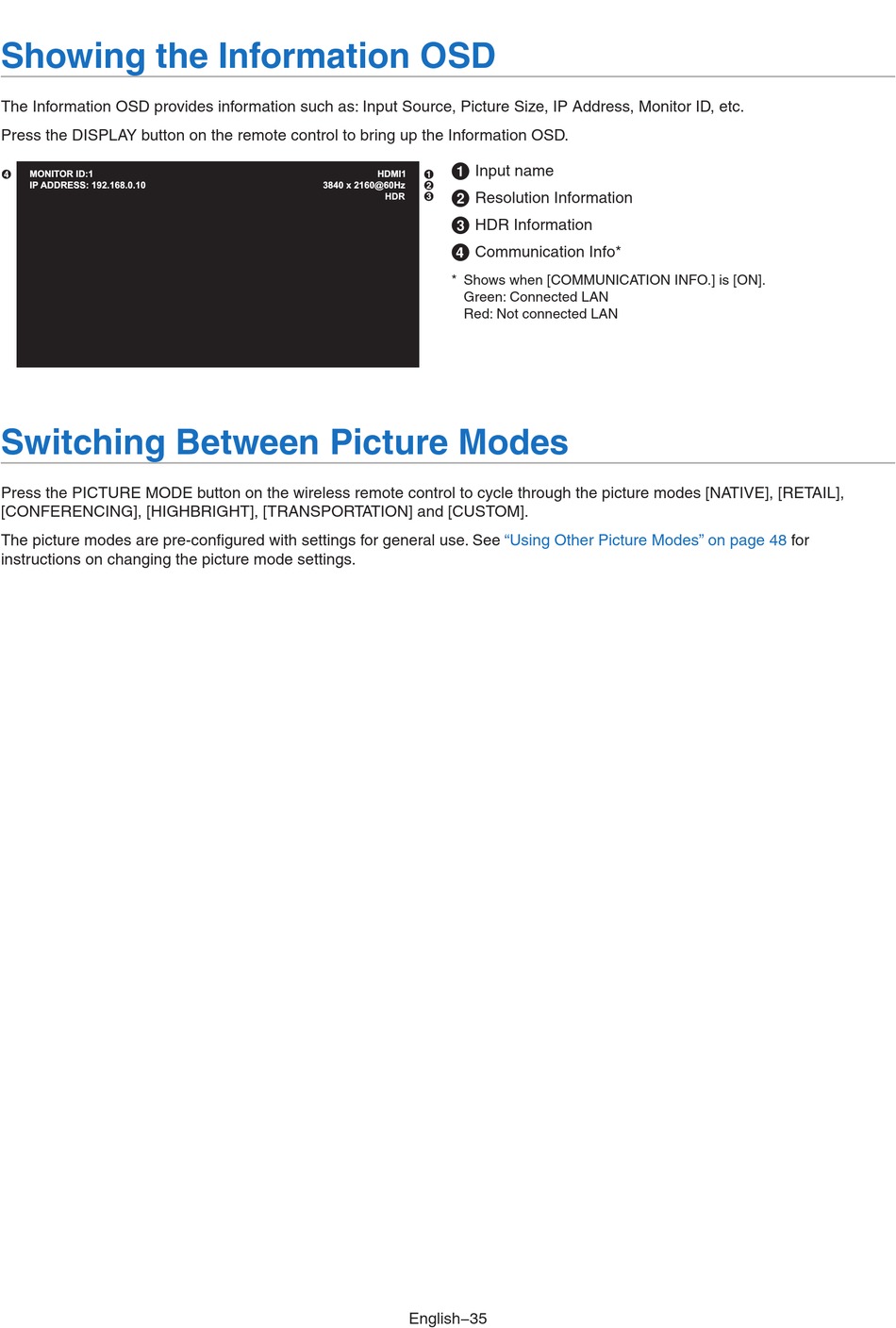

Showing the Information OSD
The Information OSD provides information such as: Input Source, Picture Size, IP Address, Monitor ID, etc.
Press the DISPLAY button on the remote control to bring up the Information OSD.
MONITOR ID:1
IP ADDRESS: 192.168.0.10
Switching Between Picture Modes
Press the PICTURE MODE button on the wireless remote control to cycle through the picture modes [NATIVE], [RETAIL],
[CONFERENCING], [HIGHBRIGHT], [TRANSPORTATION] and [CUSTOM].
The picture modes are pre-configured with settings for general use. See
instructions on changing the picture mode settings.
Input name
1
HDMI1
3840 x 2160@60Hz
Resolution Information
2
HDR Information
3
Communication Info*
4
* Shows when [COMMUNICATION INFO.] is [ON].
Green: Connected LAN
H
Red: Not connected LAN
English−35
"Using Other Picture Modes" on page 48
