- Page 1 AOC-S200G-B1C USER'S MANUAL Revision 1.0...
- Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
- Page 3 About This Manual This user's guide is written for system integrators, IT technicians, and knowledgeable end users. It provides information for the installation and use of the AOC-S200G-B1C add-on card. About This Add-On Card The Supermicro AOC-S200G-B1C is the most advanced Network-Controller Sideband Interface (NC-SI) Ethernet LAN card on the market today.
- Page 4 • Product safety info: http://www.supermicro.com/about/policies/safety_information.cfm • If you have any questions, please contact our support team at: support@supermicro.com This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level.
- Page 5 Preface Naming Convention...
- Page 6 Super AOC-S200G-B1C User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) Sales-USA@supermicro.com (Sales Inquiries) Government_Sales-USA@supermicro.com (Gov. Sales Inquiries) support@supermicro.com (Technical Support) RMA@supermicro.com (RMA Support)
- Page 7 Preface Asia-Pacific Email: Sales-Asia@supermicro.com.tw (Sales Inquiries) Support@supermicro.com.tw (Technical Support) RMA@supermicro.com.tw (RMA Support) Website: www.supermicro.com.tw...
-
Page 8: Table Of Contents
Super AOC-S200G-B1C User's Manual Table of Contents Chapter 1 Introduction 1.1 Overview ..........................9 1.2 Key Features ........................9 1.3 Specifications ........................10 1.4 Supported Platforms ......................14 Chapter 2 Hardware Components 2.1 Add-On Card Image and Layout ..................15 2.2 Major Components ......................17 2.3 QSFP56 Ethernet Connections ...................18 2.4 NC-SI Header and PCI-E 4.0 x16 Connector ..............19... -
Page 9: Chapter 1 Introduction
Congratulations on purchasing your add-on card from an acknowledged leader in the industry. Supermicro products are designed with the utmost attention to detail to provide you with the highest standards of quality and performance. For product support and updates, please refer to our website at http://www.supermicro.com/products/nfo/networking.cfm#adapter. -
Page 10: Specifications
Super S200G-B1C User's Manual • Cable support: copper cables, fiber cables, optic cables with optional transceivers • Dimensions 6.6in (L) x 2.713in (W) 1.3 Specifications Host Interface • PCI Express x16, x8, x4, x2, x1 lane configuration • Interface up to four PCIe hosts •... - Page 11 Chapter 1: Introduction • Large Send Offload (LSO) • Receive Segment Coalescing (RSCO) • TCP Segmentation Offload (TSO) • Generic Receive Offload (GRO) • Receive Side Scaling (RSS) • Transmit Side Scaling (TSS) • Accelerated Receive Flow Steering (aRFS) • Header-Payload Split NIC Partitioning •...
- Page 12 Super S200G-B1C User's Manual • IP-in-IP-aware stateless offloads • GRE-aware stateless offloads • Per Virtual Function (VF) statistics • VF Receive-Side Scaling (RSS)/Transmit-Side Scaling (TSS) • VF isolation, source pruning, and anti-spoofing RDMA over Converged Ethernet (RoCE) • RoCEv2 and RoCEv1 •...
- Page 13 Chapter 1: Introduction • VLAN insertion/deletion • NAT/NAPT • Tunnel encapsulation/decapsulation • Custom tunnel processing • Flow tracking and aging • Mirroring • Metering • Flow counters/statistics Data Center Bridging • Priority-based flow control (PFC IEEE 802.1Qbb) • Enhanced transmission selection (ETS IEEE 802.1Qbb) •...
-
Page 14: Supported Platforms
PCI-E 4.0 x 16 expansion slot ® • NC-SI feature is only supported by Supermicro motherboards with corresponding NC-SI connectors. Note: Please note that this product is sold only as part of an integrated solution... -
Page 15: Chapter 2 Hardware Components

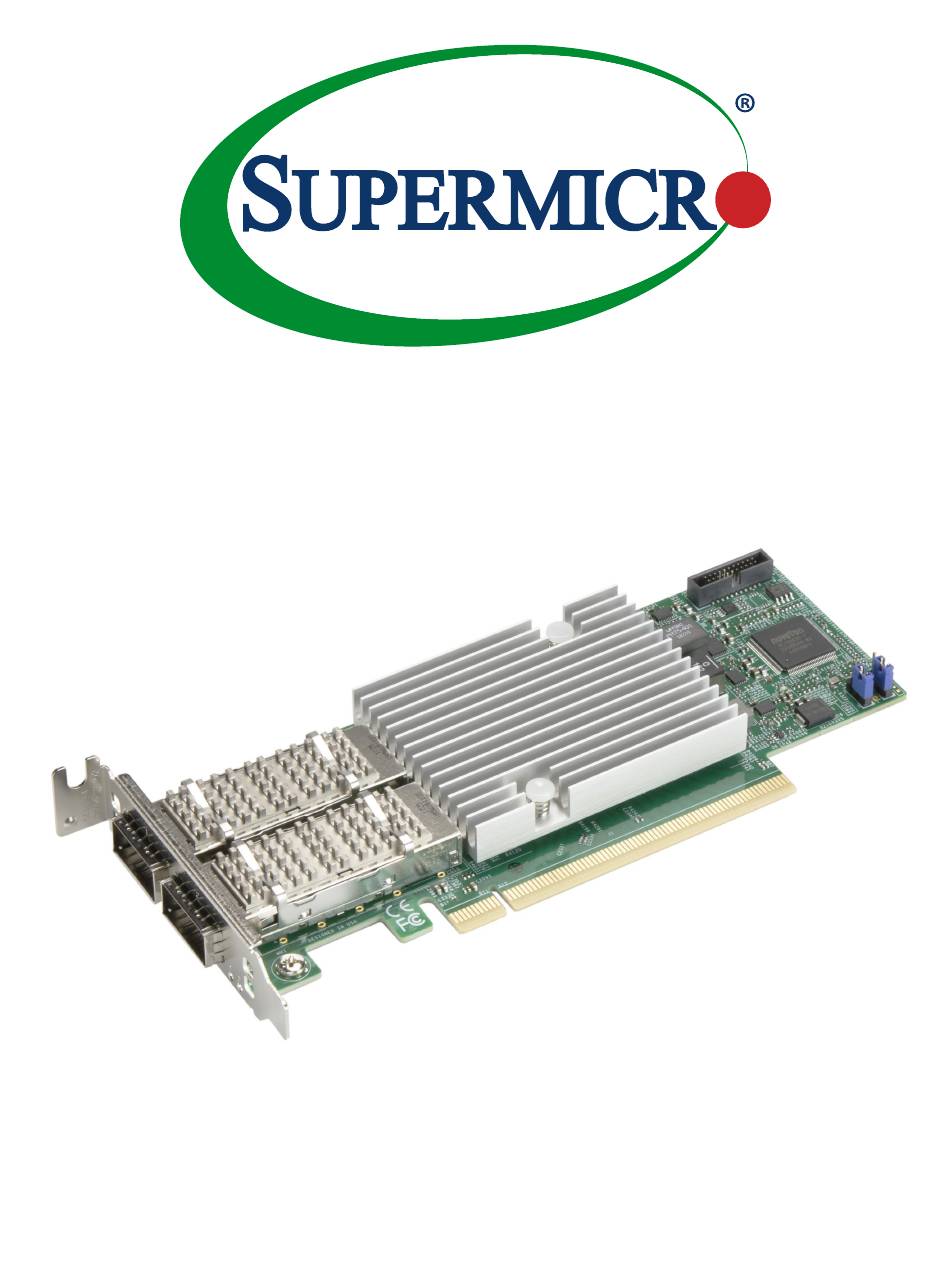

Chapter 2: Hardware Components Chapter 2 Hardware Components 2.1 Add-On Card Image and Layout AOC-A200G-B1C Image... - Page 16 Super AOC-S200G-B1C User's Manual AOC-S200G-B1C JNCSI1 JNCSI2 DESIGNED IN USA REV:1.01 QSFP56 BCM57508 QSFP56 LED3 LED4 JGF1 LED5 AOC-S200G-B1C Layout...
-
Page 17: Major Components
Chapter 2: Hardware Components 2.2 Major Components The following major components are installed on the AOC-S200G-B1C: AOC-S200G-B1C Major Components Component Name Definition BCM57508 Broadcom Ethernet controller ® JGF1 PCI-E 4.0 x16 JNCSI1 NCSI header 1-2: SMBUS ARP mode (default) 2-3: Static SMBUS address mode... -
Page 18: Qsfp56 Ethernet Connections
Super AOC-S200G-B1C User's Manual 2.3 QSFP56 Ethernet Connections QSFP56 Port A Quad Small Form-Factor Pluggable 56 (QSFP56) connector is located at J2/J3 on the add- on card. The QSFP56 ports operate at up to 200Gb/s. Plug the Direct Attached Copper (DAC) cable into the QSFP56 ports for network connections. -
Page 19: Nc-Si Header And Pci-E 4.0 X16 Connector
NC-SI and also need to have a special cable. Please contact Supermicro at www.supermicro.com to purchase the cable for this header. See the layout below for the location of the JNCSI1 header. -
Page 20: Jumper Settings
Super AOC-S200G-B1C User's Manual 2.5 Jumper Settings Explanation of Jumpers Connector Pins To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change Jumper the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board. -
Page 21: Pci-E 4.0 X16 Connector
A PCI-E 4.0 x16 connector is located at JGF1 on the add-on card. Insert this connector into a PCI-E 4.0 x16 slot on a motherboard to use this add-on card. See the layout below for the location.. 1. PCI-E 4.0 x16 connector AOC-S200G-B1C JNCSI1 JNCSI2 DESIGNED IN USA REV:1.01... -
Page 22: Chapter 3 Installation
Chapter 3 Installation Your system came with the AOC-S200G-B1C add-on card which is designed as a part of an integrated solution. We do not recommend that any part of your system components be removed and re-installed. However, if you do need to remove or re-install a system component, including this add-on card, please follow the instructions below to ensure proper system setup. -
Page 23: Before Installation
Chapter 3: Installation 3.2 Before Installation To install the add-on card properly, be sure to follow the instructions below. 1. Power down the system. 2. Remove the power cord from the wall socket. 3. Use industry-standard anti-static equipment (such as gloves or wrist strap) and follow the instructions listed on page 22 to avoid damage caused by ESD. -
Page 24: Installing Drivers (For Broadcom ® Bcm57508)
3.4 Installing Drivers (for Broadcom BCM57508) ® To install drivers for the AOC-S200G-B1C add-on card for either Linux or Windows, please follow the instructions below. Before Installing the Drivers for the Linux Operating System Infiniband-diags is a set of utilities designed to help configure, debug, and maintain infiniband fabrics. - Page 25 Follow the steps below to install the drivers on the Linux operating system: 1. Download the Linux driver package file: netxtreme-bnxt_en-<ver>.tar.gz. Note: This driver can be found on either the Supermicro website, or by going to the Linux_Driver directory from the FTP site (https://www.supermicro.com/wdl/driver/) or CDR-NIC LAN driver CD by going to the following directory: Broadcom >...
- Page 26 1. From the FTP site or CDR-NIC LAN driver CD, go to the following directory: Broadcom > 200G > Windows. Note: The 200Gbps networking card AOC-S200G-B1C shares the same controller and driver as 100Gbps networking card AOC-S100G-B2C. 2. Choose the desired Windows driver package folder.
- Page 27 (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical sys- tems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
