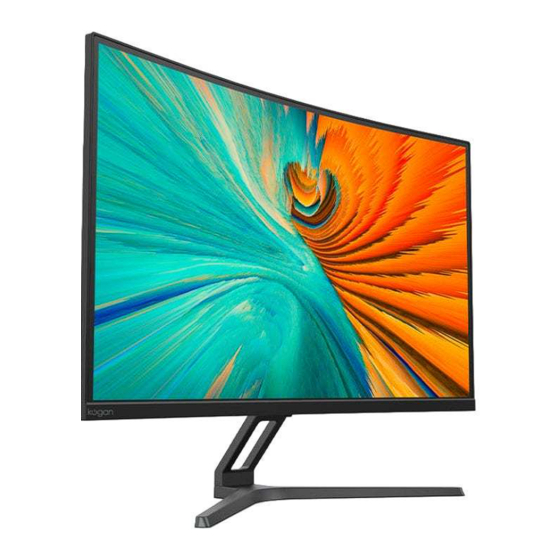

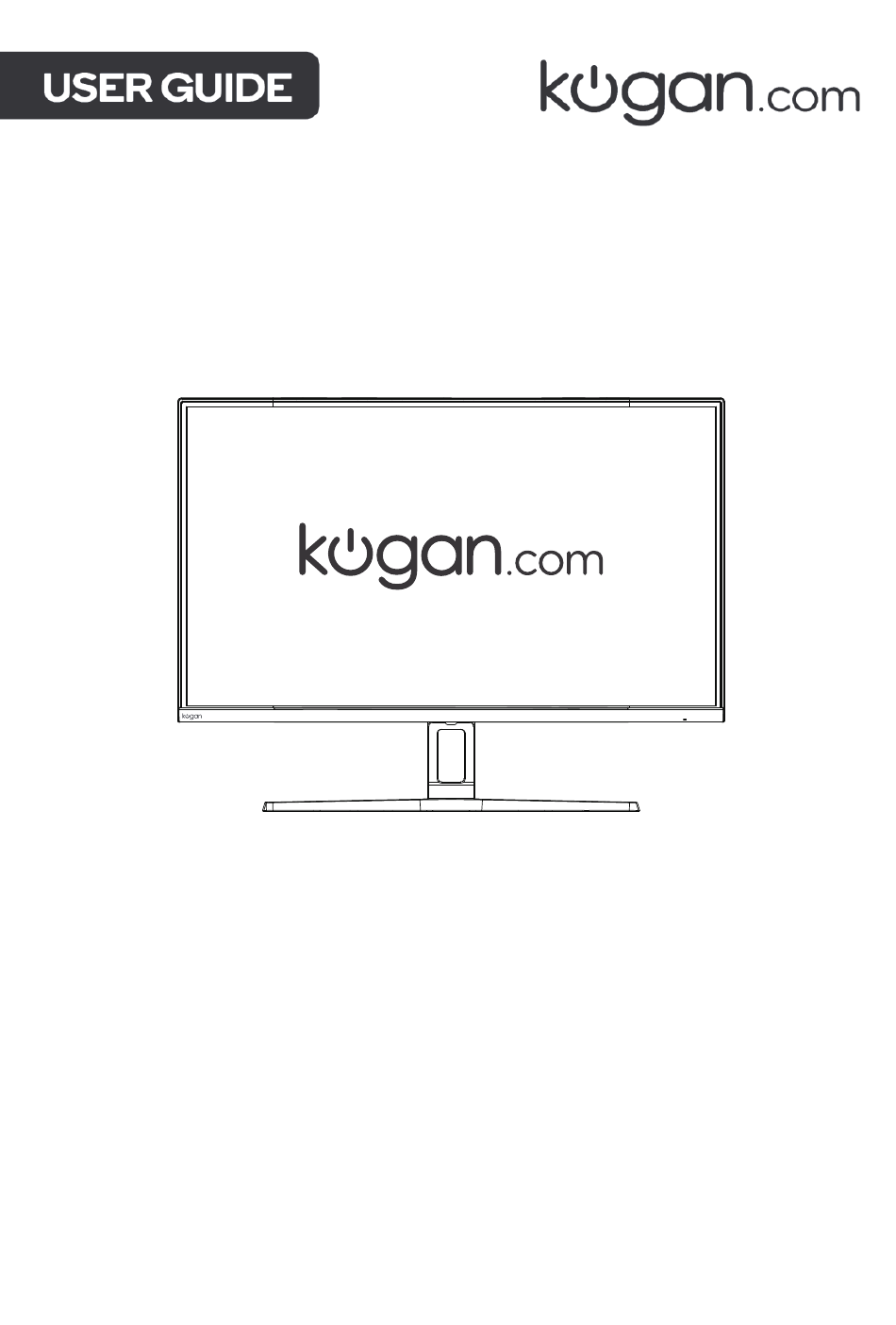

- Page 1 27" Curved Full HD 75Hz FreeSync Monitor (1920 x 1080) KAMN27F7CSA...
- Page 2 The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
- Page 3 COMPONENTS Monitor Stand connector Stand base screw Stand base VESA screws (x4) (M4 x 10mm, x2) HDMI cable Power cable User guide...
- Page 4 OVERVIEW Monitor Controls a. press and hold the "Power " button for 6 seconds to turn on and o . b. When the display is turned on, click "Power " button to wake up the main menu for one second. Power button c.
-
Page 5: Audio Out
Monitor Ports ▲ HDMI connector VGA connector AUDIO OUT Power connector... -
Page 6: Stand Assembly
STAND ASSEMBLY VESA WARNING: The panel of the monitor is fragile.Keep the foam underneath the monitor screen while assembling the stand. M4 x 10mm, x2 Attach the stand base to the stand Carefully remove the monitor, stand connector using the M4 screw connector and stand base from the provided. - Page 7 VESA MOUNT MOUNT VESA mounting pattern 75 x 75mm, screw size M4. Note: VESA mount or mounting accessories are included. Open the box, take out the monitor with protection form attached and gently place it on a desktop or table. Remove the extra parts and the foam covering the back of the monitor.
- Page 8 CONNECTIVITY Power cable Connect the included power cable to the monitor power port and then connect the other end to a power outlet. Earphones (Audio Out) Earphones, headphones or other audio devices can be connected to the 3.5mm output on the monitor.
- Page 9 HDMI In order for the monitor to receive HDMI signals from the computer, use the HDMI cable to connect the monitor to the computer. Connect a device VGA output such as a computer, DVD/Blu-ray player or console to the monitor via a VGA cable.
-
Page 10: Operation
OPERATION Connect the monitor to the input device via HDMI/ VGA . Connect the power cable to the monitor, then connect the other end directly to a power socket. Use the power button to turn the monitor on. FreeSync Press “ Power ” to enter the OSD menu. Press “... - Page 13 1. Press “Power ” touch le to switch ECO modes. These modes include STANDARD, TEXT,GAME,MOVIE, FPS and RTS and can be used to optimise settings according to your activity. Standard mode is suitable for most activities.
-
Page 14: Specifications
SPECIFICATIONS Screen size Aspect ratio 16:9 Brightness Panel Resolution 1920x1080 Refresh rate 75Hz Response time Viewing angle 4000:1 Contrast ratio VESA mounting 75 x 75mm Colours 16.7M Signal input HDMI 1.4 x 1, VGA x 1 Power 100 -240V~ 50/60Hz 1.1A Audio Speakers Audio out...
