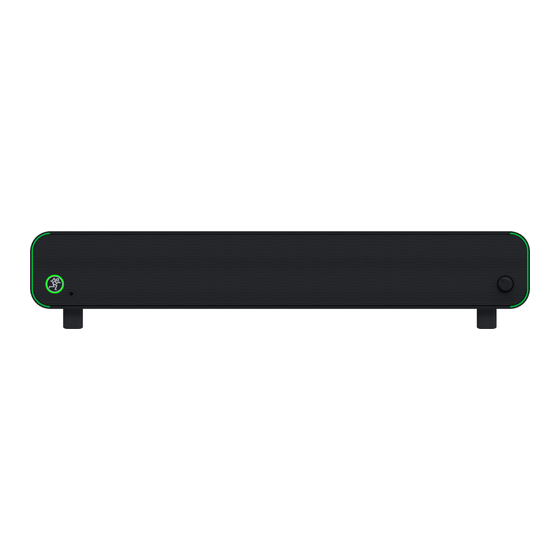

- Page 1 User Manual of Product 1: Mackie CR-X Series, CR StealthBar Desktop PC Soundbar with Bluetooth...
- Page 2 O W N E R ’ S M A N U A L...
-
Page 3: Important Safety Instructions
EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the effective usage of natural resources. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, waste authority, or your household waste disposal service. CR StealthBar Desktop PC Soundbar w/ Bluetooth®... -
Page 4: Table Of Contents
Getting Started ..........4 • Music Hookup Diagrams ........5 • Voice • Game CR StealthBar: Front Panel Features ..7 1. Power / Volume / Mute ......7 Mute control 2. Phones Output .........7 3. Running Man Bluetooth Button / LED ..7 USB connectivity for Mac/PC CR StealthBar: Rear Panel Features ..8... -
Page 5: Introduction
3. Connect the line-level monitor signal from your computer or other line-level signal CR StealthBar also makes it easy to tuck it under source to the input jacks (USB-C or 1/8"). your monitor and route cables with adjustable-height feet. -
Page 6: Hookup Diagrams
Hookup Diagrams This is a typical use for CR StealthBar. This would be a prime example of utilizing it for gaming. Make sure the CR StealthBar is positioned for your setup, including the angle; see ‘Adjustable Feet’ on page 9 for more information. - Page 7 ‘Adjustable Feet’ on page 9 for more information. Here a phone is connected to CR StealthBar via Bluetooth, although it can also be “hardwired” into the 1/8" stereo input jack using the included 1/8" to 1/8" cable. Both options are on display here.
-
Page 8: Cr Stealthbar: Front Panel Features
(1) the CR StealthBar is plugged into a live AC outlet, For starters, this is the power switch. Simply turn it (2) the front panel power / volume control is turned clockwise until the CR StealthBar “clicks”... -
Page 9: Cr Stealthbar: Rear Panel Features
(the big To drop the device from being paired with the piece with the cable that plugs into the CR StealthBar). CR StealthBar, press and hold the Bluetooth Here’s how: line up the tabs of the AC connector button down for at least three seconds. -
Page 10: 8" Stereo Input Jack
Rear Panel features continued... 8. EQ Preset Switch Connect the USB-C side of a USB cable to the CR StealthBar and the USB-A side to the This is a momentary switch that cycles between computer’s USB port. unique EQ modes: Music, Voice and Game. -
Page 11: Input Selector Switch And Leds
This includes a device connected via Bluetooth. Switching the source selection away from a connected device (Bluetooth) to USB or 1/8" / Aux and back again will not disrupt the Bluetooth connection, for example. CR StealthBar Desktop PC Soundbar w/ Bluetooth®... -
Page 12: Appendix A: Service Information
Appendix A: Service Information Poor sound If you think your CR StealthBar has a problem, please check out the following troubleshooting tips and do your • Is it loud and distorted? Make sure that you’re not best to confirm the problem. Visit the Support section overdriving a stage in the signal chain. - Page 13 If you do not have access to our website, please call our Tech Support department at 1-800-898-3211 (normal business hours, Pacific Time), to explain the problem. They will tell you where the nearest factory-authorized service center is located in your area. CR StealthBar Desktop PC Soundbar w/ Bluetooth®...
-
Page 14: Appendix B: Technical Information
Appendix B: Technical Information CR StealthBar Specifications Acoustic Performance Power Requirements Frequency Response (-10 dB) 67 Hz – 20 kHz CR StealthBar 100–240V @ 0.8A, 50–60 Hz, 12V @ 3.0A Horizontal Coverage Angle 45º Vertical Coverage Angle 90º Maximum SPL Peak... -
Page 15: Cr Stealthbar Dimensions
This is the setting that gamers will want to select when saving the world from the zombie apocalypse. CR StealthBar Magnitude Response Graph MUSIC VOICE GAME – 0 –20 Frequency (Hz) CR StealthBar Desktop PC Soundbar w/ Bluetooth®... -
Page 16: Limited Warranty
For full terms and conditions, as well as the specific duration of the Warranty for this product, please visit www.mackie.com. The Product Warranty, together with your invoice or receipt, and the terms and conditions located at www.mackie.com constitutes the entire agreement, and supersedes any and all prior agreements between LOUD and Customer related to the subject matter hereof. - Page 17 19820 North Creek Parkway #201 Bothell, WA 98011 • USA Phone: 425.487.4333 Toll-free: 800.898.3211 Fax: 425.487.4337 www.mackie.com...
