INSTALLATION GUIDE
INSTALLATION GUIDE
6392 Analog Phone
A

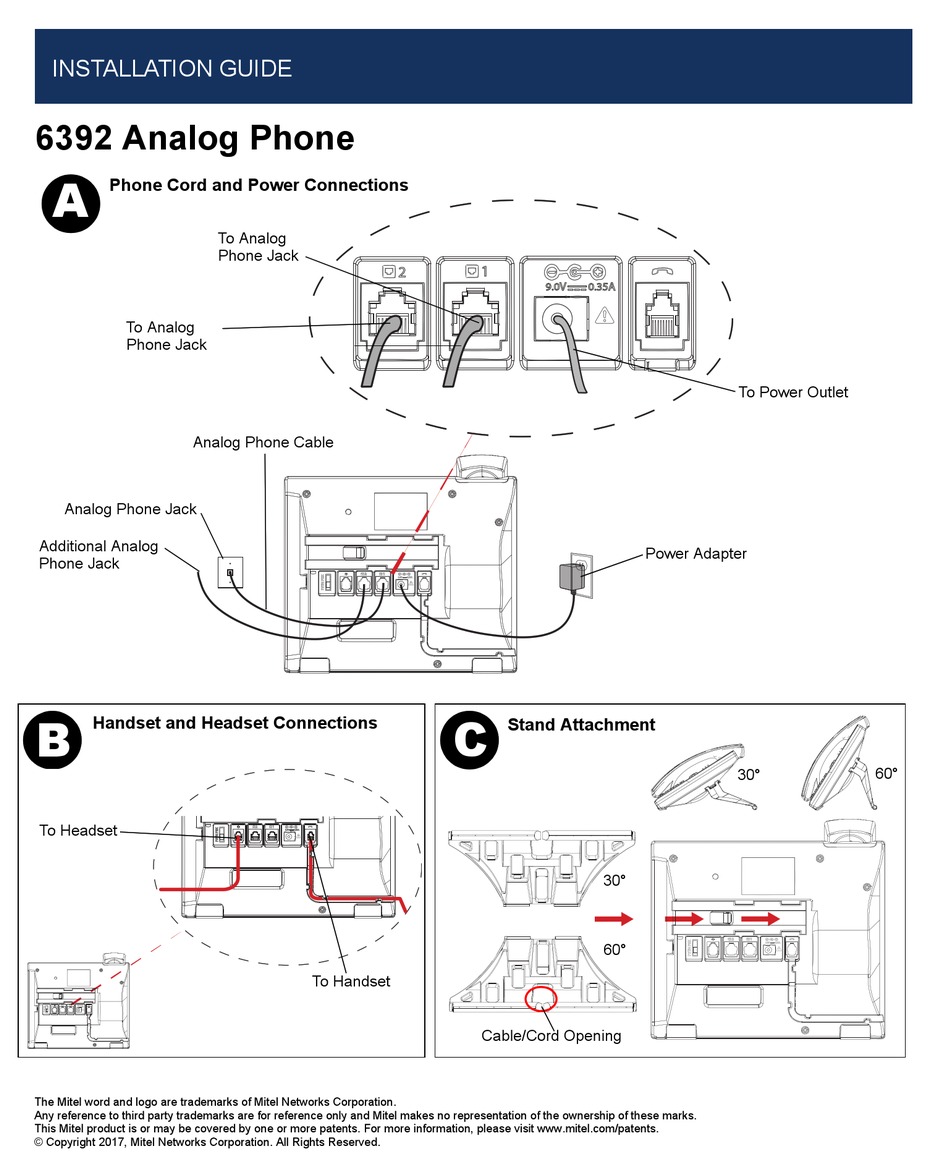

Phone Cord and Power Connections
To Analog
Phone Jack
Analog Phone Cable
Analog Phone Jack
Additional Analog
Phone Jack
B
Handset and Headset Connections
To Headset
2
1
---
9.0V
0.35A
k
The Mitel word and logo are trademarks of Mitel Networks Corporation.
Any reference to third party trademarks are for reference only and Mitel makes no representation of the ownership of these marks.
This Mitel product is or may be covered by one or more patents. For more information, please visit www.mitel.com/patents.
© Copyright 2017, Mitel Networks Corporation. All Rights Reserved.
To Analog
Phone Jack
2
1
1
2
---
9.0V
0.35A
k
To Handset
1
2
---
9.0V
9.0V
---
0.35A
k
C
Stand Attachment
Cable/Cord Opening
0.35A
k
To Power Outlet
Power Adapter
30°
30°
2
1
60°
9.0V
60°
---
0.35A
k
