APPLICATIONS
NEXT ASSY.
USED ON

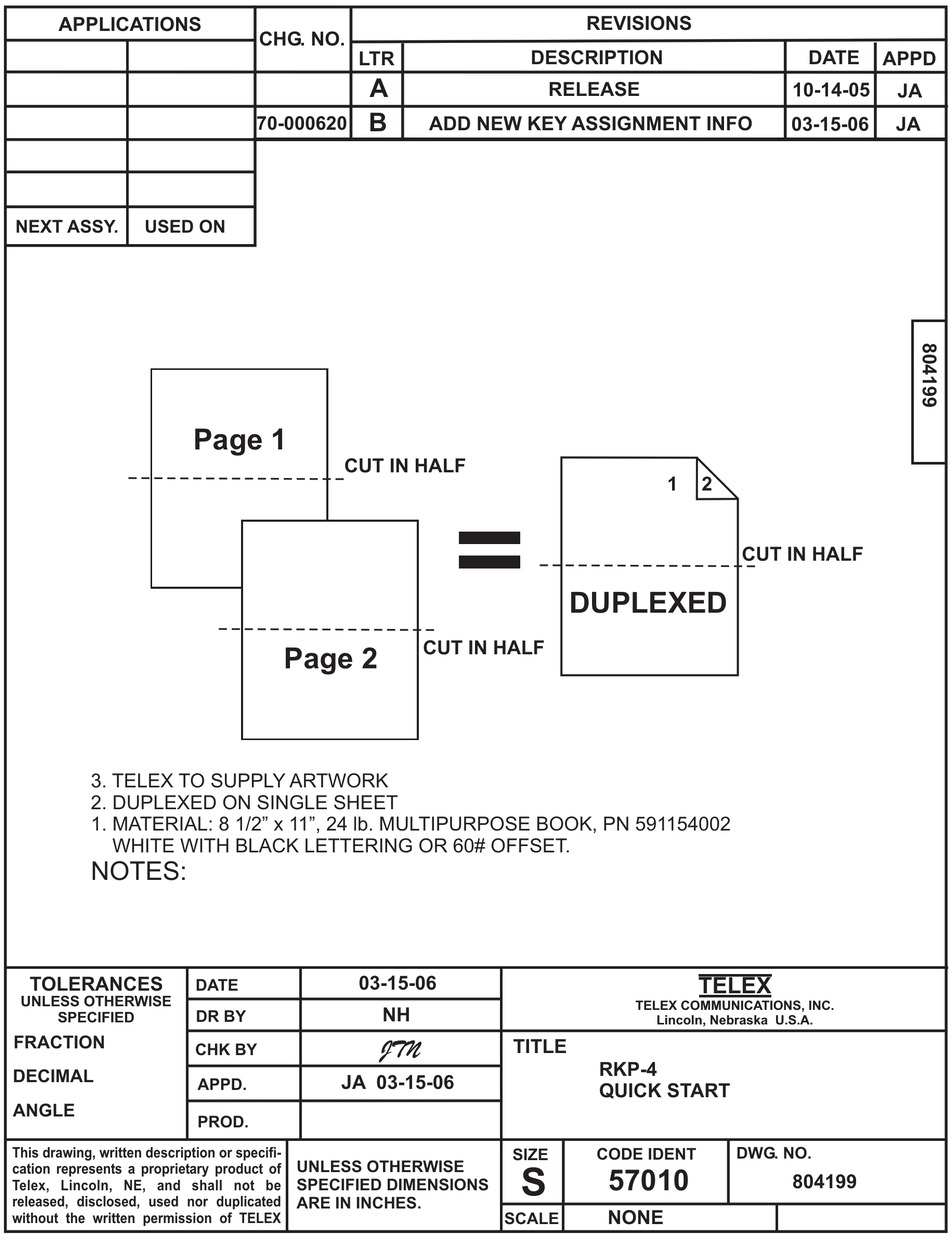

3. TELEX TO SUPPLY ARTWORK
2. DUPLEXED ON SINGLE SHEET
1. MATERIAL: 8 1/2" x 11", 24 lb. MULTIPURPOSE BOOK, PN 591154002
WHITE WITH BLACK LETTERING OR 60# OFFSET.
NOTES:
TOLERANCES
UNLESS OTHERWISE
SPECIFIED
FRACTION
DECIMAL
ANGLE
This drawing, written description or specifi-
cation represents a proprietary product of
Telex, Lincoln, NE, and shall not be
released, disclosed, used nor duplicated
without the written permission of TELEX
CHG. NO.
LTR
A
B
70-000620
Page 1
CUT IN HALF
Page 2
03-15-06
DATE
DR BY
CHK BY
JA 03-15-06
APPD.
PROD.
UNLESS OTHERWISE
SPECIFIED DIMENSIONS
ARE IN INCHES.
DESCRIPTION
RELEASE
ADD NEW KEY ASSIGNMENT INFO
CUT IN HALF
NH
JTN
TITLE
SIZE
S
SCALE
REVISIONS
1
2
CUT IN HALF
DUPLEXED
TELEX
TELEX COMMUNICATIONS, INC.
Lincoln, Nebraska U.S.A.
RKP-4
QUICK START
DWG. NO.
CODE IDENT
57010
NONE
DATE
APPD
10-14-05
JA
03-15-06
JA
804199
