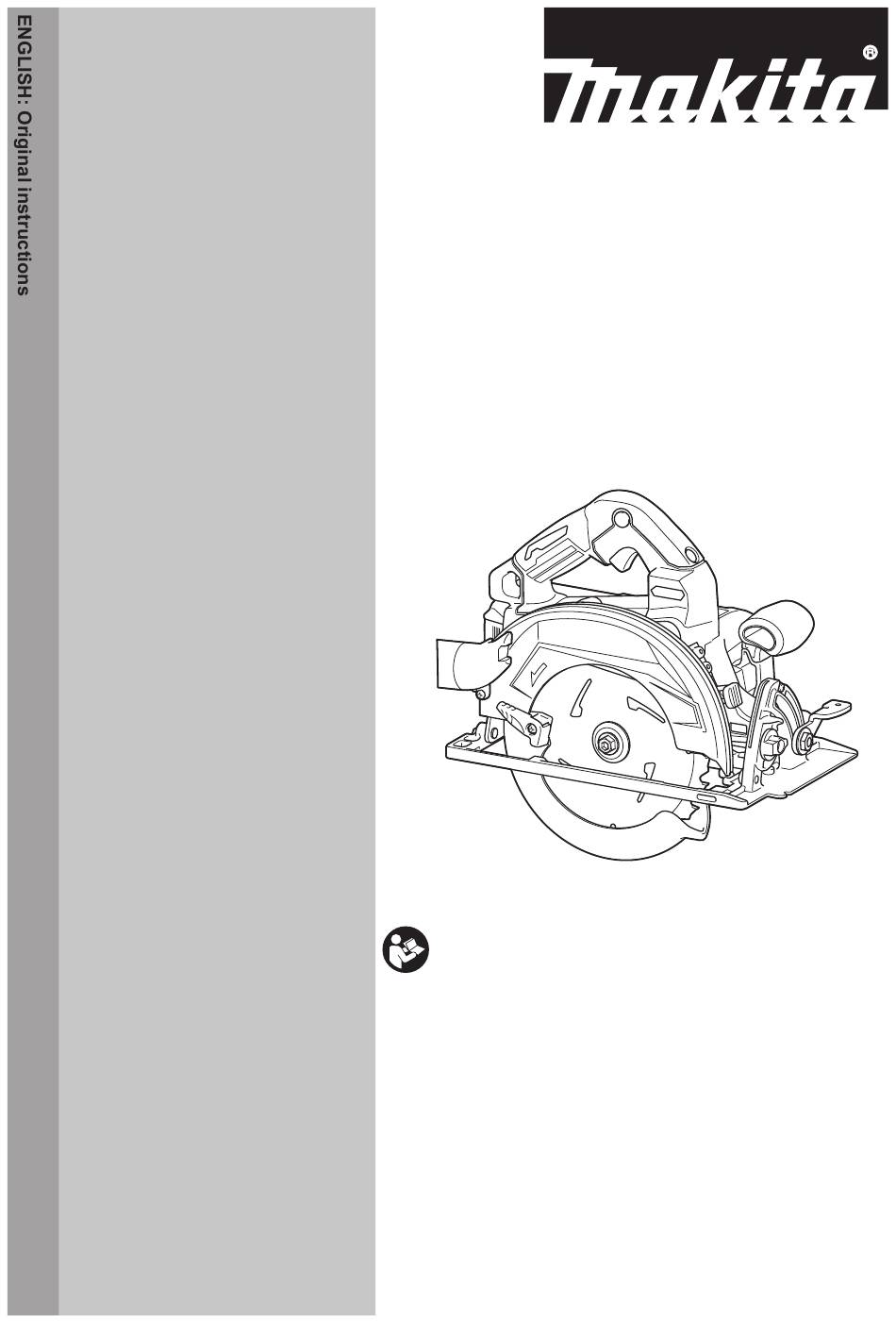

- Page 1 INSTRUCTION MANUAL Cordless Circular Saw HS003G Read before use.
-
Page 2: Specifications
EN62841-2-5: wood while in firm contact with the workpiece. With Work mode: cutting wood appropriate Makita genuine saw blades, other materials Vibration emission (a ) : 2.5 m/s or less can also be sawed. -
Page 3: Ec Declaration Of Conformity
Work mode: cutting metal Do not expose power tools to rain or wet con- Vibration emission (a ) : 2.5 m/s or less ditions. Water entering a power tool will increase Uncertainty (K) : 1.5 m/s the risk of electric shock. Do not abuse the cord. - Page 4 Battery tool use and care Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Use power tools only with specifically desig- nated battery packs.
- Page 5 Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel. Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting tool may contact hidden wiring.
- Page 6 Never force the saw. Push the saw forward at a speed so that the blade cuts without slowing. Forcing the saw can cause uneven cuts, loss of accuracy, and possible kickback. Lower guard function Check the lower guard for proper closing before each use.
- Page 7 It will If electrolyte gets into your eyes, rinse them out also void the Makita warranty for the Makita tool and with clear water and seek medical attention right charger.
-
Page 8: Functional Description
The tool is equipped with a tool/battery protection sys- tem. This system automatically cuts off power to the 26. Do not insert any devices other than Makita motor to extend tool and battery life. The tool will auto- wireless unit into the slot on the tool. -
Page 9: Overheat Protection
Press the check button on the battery cartridge to indi- personal injury. Return tool to a Makita service center cate the remaining battery capacity. The indicator lamps for proper repairs BEFORE further usage. -
Page 10: Bevel Cutting
Automatic speed change function This tool has "high speed mode" and "high torque mode". The tool automatically changes the operation mode depending on the work load. When the work load is low, the tool will run in the "high speed mode" for quicker cutting operation. - Page 11 Sighting Hook For straight cuts, align the 0° position on the front of the Optional accessory base with your cutting line. For 45° bevel cuts, align the CAUTION: Always remove the battery when 45° position with it. hanging the tool with the hook. CAUTION: Never hook the tool at high loca- tions or potentially unstable locations such as...
-
Page 12: Electric Brake
This tool is equipped with an electric blade brake. If the tool con- sistently fails to quickly stop the circular saw blade after switch lever release, have tool serviced at a Makita service center. CAUTION: The blade brake system is not a substitute for blade guard. - Page 13 For tool with the ring WARNING: BE SURE TO TIGHTEN THE HEX BOLT CLOCKWISE SECURELY. Also be careful not to tighten the bolt forcibly. Slipping your hand from the hex wrench can cause a personal injury. WARNING: Make sure that the protrusion "a" on the inner flange that is positioned outside fits into the saw blade hole "a"...
-
Page 14: Cutting Operation
Aluminum products correct ring for the blade's arbor hole you intend Refer to our website or contact your local Makita dealer to use is installed between the inner and the outer for the correct circular saw blades to be used for the flanges. - Page 15 16. In the event the tool is dropped, it must be tagged and removed from service, and should be inspected by a Makita Factory or Authorized Service Center. ► 1. Rip fence (Guide rule) 2. Clamping screw The handy rip fence allows you to do extra-accurate straight cuts.
- Page 16 Installing the wireless unit Optional accessory CAUTION: Place the tool on a flat and stable surface when installing the wireless unit. NOTICE: Clean the dust and dirt on the tool before installing the wireless unit. Dust or dirt may cause malfunction if it comes into the slot of the wireless unit.
- Page 17 Tool registration for the vacuum cleaner NOTE: A Makita vacuum cleaner supporting the wireless activation function is required for the tool registration. NOTE: Finish installing the wireless unit to the tool before starting the tool registration.
- Page 18 Push the wireless activation button on the tool NOTE: The wireless activation lamps finish blinking briefly. The wireless activation lamp will blink in blue. in green after 20 seconds elapsed. Press the wireless activation button on the tool while the wireless acti- vation lamp on the cleaner is blinking.
- Page 19 Description of the wireless activation lamp status ► 1. Wireless activation lamp The wireless activation lamp shows the status of the wireless activation function. Refer to the table below for the meaning of the lamp status. Status Wireless activation lamp Description Color Duration...
- Page 20 If the cancellation is performed successfully, the wire- Cancelling tool registration for the less activation lamps will light up in red for 2 seconds vacuum cleaner and start blinking in blue. NOTE: The wireless activation lamps finish blinking in Perform the following procedure when cancelling the red after 20 seconds elapsed.
- Page 21 Before asking for repairs, conduct your own inspection first. If you find a problem that is not explained in the manual, do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replace- ment parts for repairs.
-
Page 22: Maintenance
CAUTION: before attempting to perform inspection or These accessories or attachments maintenance. are recommended for use with your Makita tool specified in this manual. The use of any other CAUTION: Clean out the upper and lower accessories or attachments might present a risk of guards to ensure there is no accumulated saw- injury to persons. - Page 24 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885788-227 www.makita.com 20191217...
