ASROCK X570 PRO4 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
AsRock X570 Pro4
o
cerca il tuo prodotto tra le
migliori offerte di Schede Madri

Advertisement

Table of Contents
loading

Related Manuals for ASROCK X570 PRO4

Summary of Contents for ASROCK X570 PRO4

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per AsRock X570 Pro4 cerca il tuo prodotto tra le migliori offerte di Schede Madri...
  • Page 2 (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 3 If you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard International call charges apply) The terms HDMI®...

  • Page 4: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Specifications Motherboard Layout I/O Panel Chapter 2 Installation Installing the CPU Installing the CPU Fan and Heatsink Installing Memory Modules (DIMM) Expansion Slots (PCI Express Slots) Jumpers Setup Onboard Headers and Connectors Post Status Checker CrossFireX and Quad CrossFireX Operation Guide...
  • Page 5 ASRock Live Update & APP Shop 3.3.1 UI Overview 3.3.2 Apps 3.3.3 BIOS & Drivers 3.3.4 Setting ASRock Polychrome SYNC Chapter 4 UEFI SETUP UTILITY Introduction 4.1.1 UEFI Menu Bar 4.1.2 Navigation Keys Main Screen OC Tweaker Screen Advanced Screen 4.4.1...
  • Page 6 Security Screen Boot Screen Exit Screen...

  • Page 7: Chapter 1 Introduction

    ASRock’s website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.

  • Page 8: Specifications

    * For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs. * Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/) * Please refer to page 22 for DDR4 UDIMM maximum frequency support.
  • Page 9 X570 Pro4 AMD Ryzen series CPUs (Pinnacle Ridge) • 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))* AMD Ryzen series CPUs (Picasso) • 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x8 (PCIE1);...
  • Page 10 • 1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)* * Supports NVMe SSD as boot disks * Supports ASRock U.2 Kit...
  • Page 11 • 1 x Front Panel Audio Connector • 1 x AMD LED Fan USB Header • 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt AIC Card only) • 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  • Page 12 • ErP/EuP ready (ErP/EuP ready power supply is required) * For detailed product information, please visit our website: http://www.asrock.com Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools.

  • Page 13: Motherboard Layout

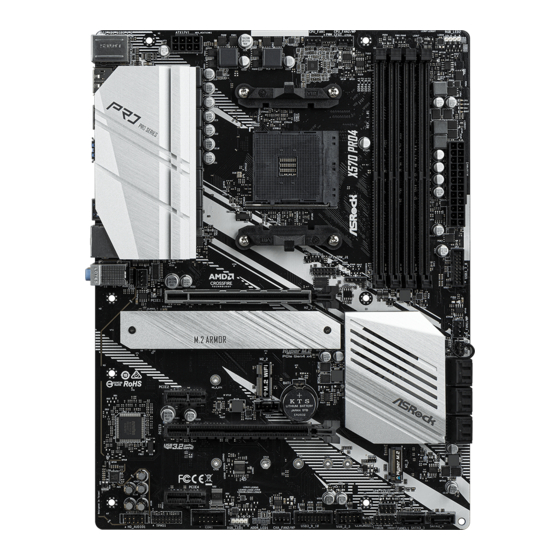

    X570 Pro4 1.3 Motherboard Layout RGB_LED2 CPU_FAN1 CPU_FAN2/WP ATX12V1 USB 3.2 Gen1 T: USB3 B: USB4 USB 3.2 Gen2 T: USB31_TA_1 B: USB31_TC_1 USB 3.2 Gen1 Top: T: USB5 RJ-45 B: USB6 SPI_TPM_J1 CHA_FAN3/WP USB_1 PCIE1 CHA_FAN1/WP RoHS Premium PCIE2...
  • Page 14 No. Description ATX 12V Power Connector (ATX12V1) CPU Fan Connector (CPU_FAN1) CPU Fan / Waterpump Fan Connector (CPU_FAN2/WP) 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1) 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2) RGB LED Header (RGB_LED2) ATX Power Connector (ATXPWR1) USB 3.2 Gen1 Header (USB3_7_8) AMD LED Fan USB Header (USB_1) SPI TPM Header (SPI_TPM_J1)

  • Page 15: I/O Panel

    X570 Pro4 1.4 I/O Panel No. Description No. Description PS/2 Mouse/Keyboard Port USB 3.2 Gen1 Ports (USB3_5_6) USB 3.2 Gen2 Type-A Port (USB31_TA_1) USB 3.2 Gen2 Type-C Port (USB31_TC_1) LAN RJ-45 Port* USB 3.2 Gen1 Ports (USB3_3_4) Line In (Light Blue)
  • Page 16 * There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED SPEED LED LAN Port Activity / Link LED Speed LED Status Description Status Description No Link 10Mbps connection Blinking Data Activity Orange...

  • Page 17: Chapter 2 Installation

    X570 Pro4 Chapter 2 Installation This is an ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.

  • Page 18: Installing The Cpu

    2.1 Installing the CPU Unplug all power cables before installing the CPU.
  • Page 19 X570 Pro4...

  • Page 20: Installing The Cpu Fan And Heatsink

    2.2 Installing the CPU Fan and Heatsink After you install the CPU into this motherboard, it is necessary to install a larger heatsink and cooling fan to dissipate heat. You also need to spray thermal grease between the CPU and the heatsink to improve heat dissipation. Make sure that the CPU and the heatsink are securely fastened and in good contact with each other.
  • Page 21 X570 Pro4...
  • Page 22 Installing the AM4 Box Cooler SR2...
  • Page 23 X570 Pro4...
  • Page 25 X570 Pro4 Installing the AM4 Box Cooler SR3...
  • Page 27 X570 Pro4 4-pin FAN cable Please note that this connector is the interface to the LED control board on the SR3, it requires the AMD utility "SR3 Settings Software" to control the LED. *The diagrams shown here are for reference only. The headers might be in a different position on your...

  • Page 28: Installing Memory Modules (Dimm)

    2.3 Installing Memory Modules (DIMM) This motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology. 1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs. 2.
  • Page 29 X570 Pro4 Ryzen Series CPUs (Picasso): UDIMM/SO-DIMMs Memory Slot # of DIMMs on # of Ranks 1.20V the Channel per DIMM SR: 2933 1 of 1 DR: 2677 SR: 2667 1 of 2 xR-0 DR: 2400 2 of 2 1R-1R...
  • Page 30 The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

  • Page 31: Expansion Slots (Pci Express Slots)

    X570 Pro4 2.4 Expansion Slots (PCI Express Slots) There are 4 PCI Express slots on the motherboard. Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

  • Page 32: Jumpers Setup

    2.5 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. Clear CMOS Jumper Short: Clear CMOS (CLRCMOS1) Open: Default 2-pin Jumper...

  • Page 33: Onboard Headers And Connectors

    X570 Pro4 2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. System Panel Header...
  • Page 34 Serial ATA3 Connectors These eight SATA3 (SATA3_5_6: connectors support SATA see p.7, No. 12) data cables for internal (SATA3_7_8: storage devices with up to see p.7, No. 13) 6.0 Gb/s data transfer rate. (SATA3_1_2: see p.7, No. 14) (SATA3_3: see p.7, No. 17) (SATA3_4: see p.7, No.
  • Page 35 X570 Pro4 Front Panel Audio Header This header is for PRESENCE# (9-pin HD_AUDIO1) connecting audio devices MIC_RET OUT_RET (see p.7, No. 27) to the front audio panel. OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L 1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly.
  • Page 36 CPU Water Pump Fan This motherboard FAN_SPEED_CONTROL CPU_FAN_SPEED Connector provides a 4-Pin water FAN_VOLTAGE (4-pin CPU_FAN2/WP) cooling CPU fan (see p.7, No. 3) connector. If you plan to connect a 3-Pin CPU water cooler fan, please connect it to Pin 1-3. ATX Power Connector This motherboard pro- (24-pin ATXPWR1)
  • Page 37 X570 Pro4 SPI TPM Header This connector supports SPI_DQ3 +3.3V (13-pin SPI_TPM_J1) SPI Trusted Platform Dummy SPI_MOSI (see p.7, No. 10) Module (TPM) system, RST# TPM_PIRQ which can securely store keys, digital certificates, passwords, and data. A SPI_TPM_CS# RSMRST# TPM system also helps...
  • Page 38 Addressable LED Header This header is used to connect (3-pin ADDR_LED1) Addressable LED extension cable (see p.7, No. 23) DO_ADDR which allows users to choose VOUT from various LED lighting effects. Caution: Never install the Addressable LED cable in the wrong orientation;...

  • Page 39: Post Status Checker

    X570 Pro4 2.7 Post Status Checker Post Status Checker (PSC) diagnoses the computer when users power on the machine. It emits a red light to indicate whether the CPU, memory, VGA or storage is dysfunctional. The lights go off if the four mentioned above are functioning...

  • Page 40: Tm Operation Guide

    2.8 CrossFireX and Quad CrossFireX Operation Guide This motherboard supports CrossFireX and Quad CrossFireX that allows you to install up to three identical PCI Express x16 graphics cards. 1. You should only use identical CrossFireX -ready graphics cards that are AMD certified.
  • Page 41 X570 Pro4 Step 3 Connect a VGA cable or a DVI cable to the monitor connector or the DVI connec- tor of the graphics card that is inserted to PCIE1 slot.

  • Page 42: Driver Installation And Setup

    2.8.2 Driver Installation and Setup Step 1 Power on your computer and boot into OS. Step 2 Remove the AMD drivers if you have any VGA drivers installed in your system. The Catalyst Uninstaller is an optional download. We recommend using this utility to uninstall any previously installed Catalyst drivers prior to installation.

  • Page 43: M.2_Ssd (Ngff) Module Installation Guide (M2_1)

    X570 Pro4 2.9 M.2_SSD (NGFF) Module Installation Guide (M2_1) The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (M2_1) supports M Key type 2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso).
  • Page 44 Step 3 Before installing a M.2 (NGFF) SSD module, please loosen the screws to remove the M.2 heatsink. *Please remove the protective films on the bottom side of the M.2 heatsink before you install a M.2 SSD module. Step 4 Prepare the M.2 standoff that comes with the package.
  • Page 45 X570 Pro4 M.2_SSD (NGFF) Module Support List Vendor Interface SanDisk PCIe SanDisk-SD6PP4M-128G( Gen2 x2) Intel PCIe INTEL 6000P-SSDPEKKF256G7 (nvme) Intel PCIe INTEL 6000P-SSDPEKKF512G7 (nvme) Kingston PCIe Kingston SHPM2280P2 / 240G (Gen2 x4) Samsung PCIe Samsung XP941-MZHPU512HCGL(Gen2x4) For the latest updates of M.2_SSD (NFGG) module support list, please visit our website...

  • Page 46: Wifi/Bt Module Installation Guide (M2_2)

    2.10 M.2 WiFi/BT Module Installation Guide (M2_2) The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (Key E) supports type 2230 WiFi/BT module. * The M.2 socket does not support SATA M.2 SSDs.
  • Page 47 X570 Pro4 Step 3 Gently insert the WiFi/BT module into the M.2 slot. Please be aware that the module only fits in one orientation. Step 4 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as...

  • Page 48: M.2_Ssd (Ngff) Module Installation Guide (M2_3)

    2.11 M.2_SSD (NGFF) Module Installation Guide (M2_3) The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (M2_3) supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso).
  • Page 49 X570 Pro4 Step 3 Move the standoff based on the module type and length. The standoff is placed at the nut location D by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut.
  • Page 50 SanDisk SATA Sandisk Z400s-SD8SNAT-128G-1122 SanDisk SATA SanDisk-SD6SN1M-128G Transcend SATA Transcend TS256GMTS800-256GB V-Color SATA V-Color 120G V-Color SATA V-Color 240G SATA WD GREEN WDS240G1G0B-00RC30 For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com...

  • Page 51: Chapter 3 Software And Utilities Operation

    X570 Pro4 Chapter 3 Software and Utilities Operation 3.1 Installing Drivers The Support CD that comes with the motherboard contains necessary drivers and useful utilities that enhance the motherboard’s features. Running The Support CD To begin using the support CD, insert the CD into your CD-ROM drive. The CD automatically displays the Main Menu if “AUTORUN”...

  • Page 52: A-Tuning

    3.2 A-Tuning A-Tuning is ASRock’s multi purpose software suite with a new interface, more new features and improved utilities. 3.2.1 Installing A-Tuning A-Tuning can be downloaded from ASRock Live Update & APP Shop. After the installation, you will find the icon “A-Tuning“ on your desktop. Double-click the “A- Tuning“...
  • Page 53 X570 Pro4 OC Tweaker Configurations for overclocking the system. System Info View information about the system. *The System Browser tab may not appear for certain models.
  • Page 54 Configure up to five different fan speeds using the graph. The fans will automatically shift to the next speed level when the assigned temperature is met. Settings Configure ASRock A-Tuning. Click to select "Auto run at Windows Startup" if you want A-Tuning to be launched when you start up the Windows operating system.

  • Page 55: Asrock Live Update & App Shop

    Double-click on your desktop to access ASRock Live Update & APP Shop utility. *You need to be connected to the Internet to download apps from the ASRock Live Update & APP Shop. 3.3.1 UI Overview Category Panel Hot News...

  • Page 56: Apps

    3.3.2 Apps When the "Apps" tab is selected, you will see all the available apps on screen for you to download. Installing an App Step 1 Find the app you want to install. The most recommended app appears on the left side of the screen. The other various apps are shown on the right.
  • Page 57 X570 Pro4 Step 3 If you want to install the app, click on the red icon to start downloading. Step 4 When installation completes, you can find the green "Installed" icon appears on the upper right corner. To uninstall it, simply click on the trash can icon...
  • Page 58 Upgrading an App You can only upgrade the apps you have already installed. When there is an available new version for your app, you will find the mark of "New Version" appears below the installed app icon. Step 1 Click on the app icon to see more details. Step 2 Click on the yellow icon to start upgrading.

  • Page 59: Bios & Drivers

    X570 Pro4 3.3.3 BIOS & Drivers Installing BIOS or Drivers When the "BIOS & Drivers" tab is selected, you will see a list of recommended or critical updates for the BIOS or drivers. Please update them all soon. Step 1 Please check the item information before update.

  • Page 60: Setting

    3.3.4 Setting In the "Setting" page, you can change the language, select the server location, and determine if you want to automatically run the ASRock Live Update & APP Shop on Windows startup.

  • Page 61: Asrock Polychrome Sync

    X570 Pro4 3.4 ASRock Polychrome SYNC ASRock Polychrome SYNC is a lighting control utility specifically designed for unique indi- viduals with sophisticated tastes to build their own stylish colorful lighting system. Simply by connecting the LED strip, you can customize various lighting schemes and patterns, including Static, Breathing, Strobe, Cycling, Music, Wave and more.
  • Page 62 Connecting the Addressable RGB LED Strip Connect your Addressable RGB LED strip to the Addressable LED Header (ADDR_LED1) on the motherboard. ADDR_LED1 DO_ADDR VOUT 1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged. 2.
  • Page 63 ASRock Polychrome SYNC Utility Now you can adjust the RGB LED color through the ASRock RGB LED utility. Download this utility from the ASRock Live Update & APP Shop and start coloring your PC style your way! Drag the tab to customize your preference.

  • Page 64: Chapter 4 Uefi Setup Utility

    Chapter 4 UEFI SETUP UTILITY 4.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. You may run the UEFI SETUP UTILITY by pressing <F2> or <Del> right after you power on the computer, otherwise, the Power-On-Self-Test (POST) will continue with its test routines.

  • Page 65: Navigation Keys

    X570 Pro4 4.1.2 Navigation Keys Use < > key or < > key to choose among the selections on the menu bar, and use < > key or < > key to move the cursor up or down to select items, then press <Enter>...

  • Page 66: Main Screen

    4.2 Main Screen When you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview.

  • Page 67: Oc Tweaker Screen

    X570 Pro4 4.3 OC Tweaker Screen In the OC Tweaker screen, you can set up overclocking features. Because the UEFI software is constantly being updated, the following UEFI setup screens and descriptions are for reference purpose only, and they may not exactly match what you see on your screen.
  • Page 68 SoC/Uncore OC Voltage Specify the SoC/Uncore voltage (VDD_SOC) in mV to support memory and Infinity Fabric overclocking. VDD_SOC also determines the GPU voltage on processors with integrated graphics. “SoC/Uncore OC Mode” need to be enabled to force this voltage. SMT Mode This item can be used to disable symmetric multithreading.
  • Page 69 X570 Pro4 Voltage Configuration Voltage Mode [OC] If this option is selected, there is larger range voltage for overclocking. [Stable] If this option is selected, there is smaller range voltage for stable system. CPU Vcore Voltage Configure the voltage for the CPU Vcore.
  • Page 70 VDDP Configure the voltage for the VDDP. PREM VDDCR_SOC Voltage this to select PREM VDDCR_SOC Voltage. The default value is [Auto]. Save User Default Type a profile name and press enter to save your settings as user default. Load User Default Load previously saved user defaults.

  • Page 71: Advanced Screen

    X570 Pro4 4.4 Advanced Screen In this section, you may set the configurations for the following items: CPU Configuration, Onboard Devices Configuration, Storage Configuration, ACPI Configuration, Super IO Configuration, Trusted Computing , AMD CBS, AMD PBS and AMD Overclocking. Setting wrong values in this section may cause the system to malfunction.

  • Page 72: Cpu Configuration

    4.4.1 CPU Configuration PSS Support Use this to enable or disable the generation of ACPI_PPC, _PSS, and _PCT objects. NX Mode Use this to enable or disable NX mode. SVM Mode When this is set to [Enabled], a VMM (Virtual Machine Architecture)can utilize the additional hardware capabilities provided by AMD-V.

  • Page 73: Onboard Devices Configuration

    X570 Pro4 4.4.2 Onboard Devices Configuration SR-IOV Support Enable/disable the SR-IOV (Single Root IO Virtualization Support) if the system has SR-IOV capable PCIe devices. UMA Frame buffer Size (Only for processor with integrated graphics) This item allows you to set the size of the UMA frame buffer.
  • Page 74 WAN Radio Configure the WiFi module's connectivity. BT On/Off Enable/disable the bluetooth.

  • Page 75: Storage Configuration

    X570 Pro4 4.4.3 Storage Configuration...

  • Page 76: Acpi Configuration

    4.4.4 ACPI Configuration Suspend to RAM It is recommended to select auto for ACPI S3 power saving. PS/2 Keyboard S4/S5 Wakeup Support Allow the system to be waked up by a PS/2 Keyboard in S4/S5. PCIE Devices Power On Allow the system to be waked up by a PCIE device and enable wake on LAN. RTC Alarm Power On Allow the system to be waked up by the real time clock alarm.

  • Page 77: Super Io Configuration

    X570 Pro4 4.4.5 Super IO Configuration Serial Port Enable or disable the Serial port. Serial Port Address Select the address of the Serial port. PS2 Y-Cable Enable the PS2 Y-Cable or set this option to Auto.

  • Page 78: Trusted Computing

    4.4.6 Trusted Computing Security Device Support Enable or disable BIOS support for security device.

  • Page 79: Amd Cbs

    X570 Pro4 4.4.7 AMD CBS The AMD CBS menu accesses AMD specific features.

  • Page 80: Amd Pbs

    4.4.8 AMD PBS The AMD PBS menu accesses AMD specific features.

  • Page 81: Amd Overclocking

    X570 Pro4 4.4.9 AMD Overclocking The AMD Overclocking menu accesses options for configuring CPU frequency and voltage.

  • Page 82: Tools

    4.5 Tools RGB LED ASRock Polychrome SYNC allows you to adjust the RGB LED color to your liking. Easy Driver Installer For users that don’t have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically.

  • Page 83: Hardware Health Event Monitoring Screen

    X570 Pro4 4.6 Hardware Health Event Monitoring Screen This section allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, fan speed and voltage. Fan Tuning Measure Fan Min Duty Cycle.
  • Page 84 CPU Fan 2 Control Mode Select PWM mode or DC mode for CPU Fan 2 . CPU Fan 2 Setting Select a fan mode for CPU Fan 2, or choose Customize to set 5 CPU temperatures and assign a respective fan speed for each temperature. CPU Fan 2 Temp Source Select a fan temperature source for CPU Fan 2.
  • Page 85 X570 Pro4 Chassis Fan 3 Control Mode Select PWM mode or DC mode for Chassis Fan 3 . Chassis Fan 3 Setting Select a fan mode for Chassis Fan 3, or choose Customize to set 5 CPU temperatures and assign a respective fan speed for each temperature.
  • Page 86 4.7 Security Screen In this section you may set or change the supervisor/user password for the system. You may also clear the user password. Supervisor Password Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility. Leave it blank and press enter to remove the password.
  • Page 87 X570 Pro4 4.8 Boot Screen This section displays the available devices on your system for you to configure the boot settings and the boot priority. Fast Boot Fast Boot minimizes your computer's boot time. In fast mode you may not boot from an USB storage device.
  • Page 88 AddOn ROM Display Enable AddOn ROM Display to see the AddOn ROM messages or configure the AddOn ROM if you've enabled Full Screen Logo. Disable for faster boot speed. CSM (Compatibility Support Module) Enable to launch the Compatibility Support Module. Please do not disable unless you’re running a WHCK test.
  • Page 89 X570 Pro4 4.9 Exit Screen Save Changes and Exit When you select this option the following message, “Save configuration changes and exit setup?” will pop out. Select [OK] to save changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option the following message, “Discard changes and exit...
  • Page 90 Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at https://event.asrock.com/tsd.asp...
  • Page 91 Address: Phone/Fax No: +1-909-590-8308/+1-909-590-1026 hereby declares that the product Product Name : Motherboard X570 Pro4 Model Number : Conforms to the following speci cations: FCC Part 15, Subpart B, Unintentional Radiators Supplementary Information: is device complies with part 15 of the FCC Rules. Operation is subject to the...
  • Page 92 EU Declaration of Conformity For the following equipment: Motherboard (Product Name) X570 Pro4 / ASRock (Model Designation / Trade Name) ASRock Incorporation (Manufacturer Name) 2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.) (Manufacturer Address) EMC —Directive 2014/30/EU (from April 20th, 2016)
