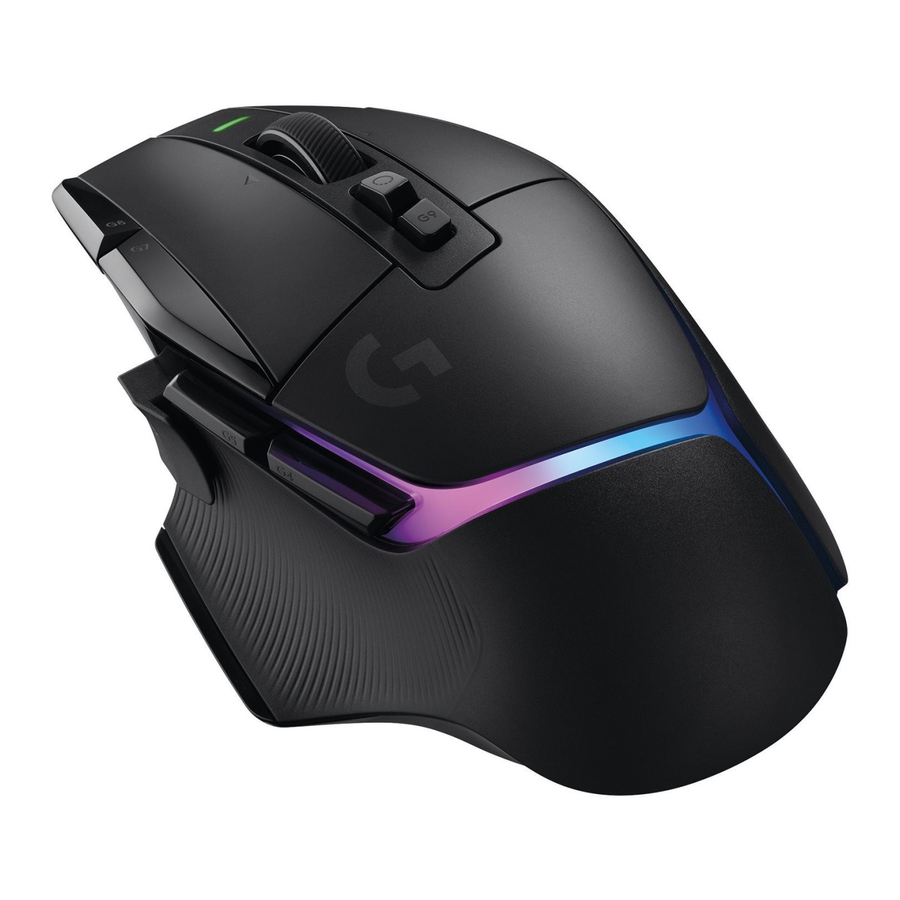

Logitech G502 X PLUS, G502 X LIGHTSPEED - Lightspeed Wireless Optical Mouses Manual

What's in the box

SETUP INSTRUCTIONS

Orientate the DPI Shift to fit your preference or replace it by the button cover to extend the grip surface.
The receiver can be stored in the mouse behind the door when on the go.

The LIGHTSPEED Wireless USB-A receiver is below the mouse in the product tray.
Plug the USB-A cable connector into your PC and the USB-C connector into the receiver extension adapter. Plug the USB-A receiver into the adapter.
- The LIGHTSPEED Wireless receiver can also be plugged directly into your PC, but using the cable and extension adapter will ensure a better connection and easy access to the cable when you need to charge your mouse.
Slide the power button up to turn on your mouse.
Download Logitech G HUB gaming software to personalize your G502 X mouse. Fine tune to suit your playstyle, personality and each of your games, assign commands to any of the 13 controls, and more.

logitechG.com/ghub

To charge your mouse, disconnect the cable from the adapter and plug it into the USB-C port located at the front of the mouse. Your mouse will operate in data-over-cable mode whenever it is plugged in directly to a PC. Charging from 0% to 100% takes around 2 hours when plugged into a USB port.
Compatible with Powerplay wireless charging system.

Tips:

Keep the mouse and receiver at least 2 meters away from wireless routers or other 2.4 GHz wireless devices to minimize environmental noise.
G502 X PLUS and G502 X LIGHTSPEED have a wireless range of up to 10 meters. To ensure optimal performance in noisy wireless environments, and to keep the charging cable easily accessible, it is recommended to keep the receiver within 20 cm of the mouse.

MOUSE FEATURES

Left click (Button G1)
Right click (Button G2)
DPI up (Button G8)
Scroll up
Scroll left (Wheel tilt left)
Scroll right (Wheel tilt right)
Middle click (Button G3)
Scroll down
DPI Shift (Button G6)
Wheel mode toggle button (not programmable)
DPI down (Button G7)
Profile cycling (Button G9)
Forward (Button G5)
Back (Button G4)
On / Off switch (bottom of mouse, not programmable)
POWERPLAY ™ Aperture door wireless receiver storage

ONBOARD PROFILES BY DEFAULT

Up to 5 Onboard memory profiles can be unlocked and customized in G HUB.

SETTINGS	MAIN PROFILE GAMING	SECONDARY PROFILE PRODUCTIVITY	SECONDARY PROFILE G-SHIFTED (G-SHIFT on DPI Shift button)
Report Rate	1 ms	2 ms	no changes
DPI	800, 1200, 1600, 2400, 3200	800, 1200, 1600, 2400, 3200	no changes
DPI steps colors	1: White 2: Orange 3: Teal 4: Yellow 5: Magenta	1: White 2: Orange 3: Teal 4: Yellow 5: Magenta
Default DPI	1600	1600	no changes
G6 button	DPI Shift to 800	G-Shift (see right column)	no changes
PROGRAMMABLE CONTROLS
Left Main Button	Left click - system/application	Left click - system/application	no changes
Right Main Button	Right click - system/application	Right click - system/application	no changes
Middle Wheel Button	Wheel click/press - system/application	Wheel click/press - system/application	Ctrl-T – opening a new tab in browser
G4 Button	Side button - system/application (commonly used backwords)	Side button - system/application (commonly used backwords)	no changes
G5 Button	Side button - system/application (commonly used backwords)	Side button - system/application (commonly used backwords)	no changes
G7 Button	DPI Down	DPI Down	Ctrl-X
G8 Button	DPI Up	DPI Up	Ctrl-Z
G9 Button	Profile cycle	Profile cycle	Ctrl-0
Scroll right (wheel tilt right)	Tilt Right- system/application	Tilt Right- system/application	Ctrl-Tab
Scroll left (wheel tilt left)	Tilt left- system/application	Tilt left- system/application	Ctrl-Xhift-Tab
Wheel Scroll Up	Scroll Up - system/application	Scroll Up - system/application	Volume Up
Wheel Scroll Down	Scroll Down - system/application	Scroll Down - system/application	Volume Down

PROFILE, DPI SELECTION AND DPI SHIFT

PROFILE, DPI SELECTION AND DPI SHIFT
When the DPI Shift button is pressed: the mouse displays the color associated with the DPI shift speed, when released the mouse displays the DPI setting color that was used prior to this action.
DPI and profile selection are communicated using lighting on the top and the rear of the mouse. DPI change is expressed by different steady colors, while profile change is displayed by different blinking colors.

FREQUENTLY ASKED QUESTIONS

www.logitechG.com/support/G502X-PLUS

BATTERY LIFE

G502 X PLUS and G502 X LIGHTSPEED have a rechargeable 500 mAh LiPol battery which provides up to 140 h of continous motion for G502 X and up to 120 h for G502 X PLUS.

Charging Status:
When the charging cable is plugged in the device:

Steady green = charge completed (100%) when device is ON or OFF
Breathing green = charging (0 - 99%)

Battery level:
When turning the device ON:

Steady green = good (31% - 100%)
Steady red = low (16 – 30%)
Slow blink red = critical (< 16%)

Tips:

Charge level, power draw, and estimated remaining battery life can be checked in Logitech G HUB.

*Battery life and capacity may vary with age and use. Rechargeable batteries have a limited number of charge cycles.
