Targus PA095U Quick Start Manual

Introduction
Congratulations on your purchase of the Targus Mobile Docking Station with Ethernet USB
2.0. This ultra portable expansion moduie directly connects to a desktop or notebook computer
via a Universal Serial Bus (USB) port.

Package Contents

In addition to this user's guide, the package contains:
• Targus Mobile Docking Station with Ethernet USB 2.0
• CD-ROM Driver
• AC power adapter
NOTE: THE SUPPLIED AC POWER ADAPTER IS A UNIVERSAL ADAPTER THAT YOU CAN USE IN A 100 TO 240 AC VOLT OUTLET.
WARNING: YOU MUST INSTALL THE MOBILE DOCKING STATION'S SOFTWARE BEFORE CONNECTING IT TO YOUR COMPUTER. OTHERWISE, THE MOBILE
DOCKING STATION WILL NOT WORK PROPERLY.
Side View
Back View
Installing the Mobile Docking Station Drivers
1. Turn on your computer.
2. Insert the driver software CD into your computer's CD-ROM drive.
3. If setup does not begin automatically, click Start, Run, Then enter D:\Setup.exe (where D: is the path of your CD-ROM drive) and then click OK. The
Welcome Screen appears.
4. Click Next.
5. If you are running the Windows
The Setup program begins installing the software driver.
The Setup Complete Screen appears.
6. Click Finish.
7. Restart your computer.
Connecting to the Mobile Docking Station

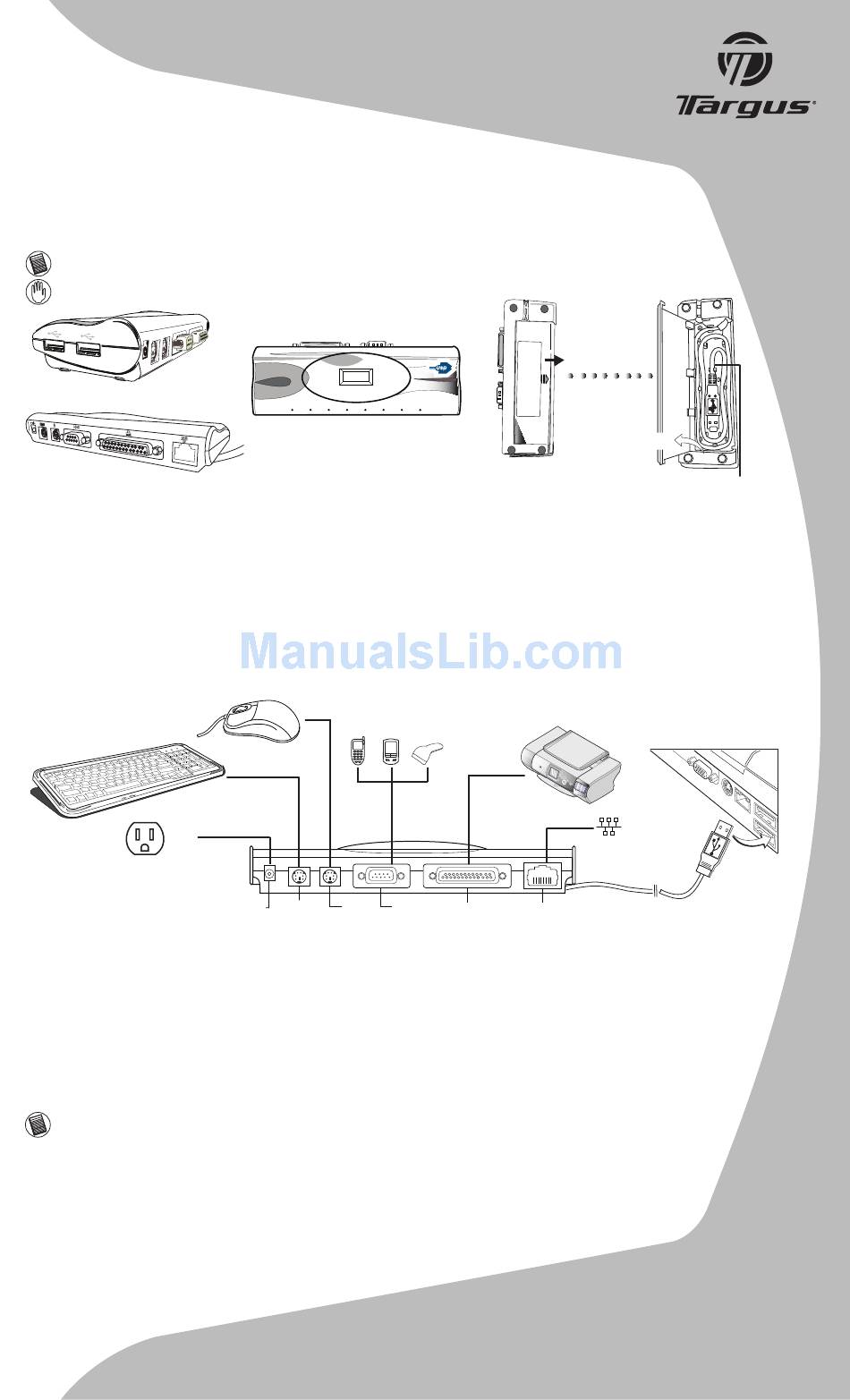

AC
wall
Connecting the Mobile Docking Station to Your Computer
After installing the mobile docking station drivers, you are ready to connect the mobile docking station to your computer. To do this:
1. Open the USB cable compartment, located on the bottom of the mobile docking station, and uncoil the cable.
2. Connect the supplied AC power adapter to the DC jack on the mobile docking station, and the AC power plug to the wall outlet.
3. Plug the USB connector end of the USB cable into the USB port of your computer.
The following will configure automatically:
• Ethernet 10/100 • Serial Interface Controller
• Parallel Interface Controller • PS/2 Adapter (twice)
This configuration process takes a few minutes. The operating system does not prompt when configuration is complete. Watch that all hardware
devices are configured before opening another application or connecting devices to the mobile docking station.
NOTE: SOME HARDWARE DEVICES MAY PROMPT YOU FOR THE LOCATION OF DEVICE DRIVERS.
To install the drivers:
1. Select "Install the software automatically (Recommended)" and click Next.
The Found New Hardware Wizard program begins installing the hardware drivers.
The Completing the Found New Hardware Wizard screen appears.
2. Click Finish and repeat as needed for each device.
3. Restart your computer.
When your computer restarts, the mobile docking station should be completely configured.
Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
All trademarks and registered trademarks are the property of their respective owners. Features and specifications are subject to change without notice.
All rights reserved. © 2007, Targus Group International, Inc. and Targus, Inc.

System Requirements

• USB 2.0 compliant port (When connected to a USB v1.1 upstream port,
the Mobile Docking Station with Ethernet USB 2.0 will be less than
optimal. For best results, connect it to a USB 2.0 port)
• Windows
Hub Link
Tx/Rx 100M Serial
Top Front View
® XP operating system, the Important Information screen appears. Click Next.
Mobile
phone PDA
DC PS/2 PS/2
jack keyboard mouse
mobile
docking station
with ethernet
USB 2.0
® 2000/XP/Vista™ operating system
USB(2)
PS/2(1) PS/2(2) USB(1)
Bottom View
Barcode
Reader
RS232
Parallel
Serial
• USB Device (twice)
Push Out
Open
USB connect to computer
Network
RJ-45
ethernet

Quick Start

PA095U / 410-0210-001B
