Kenwood KRK-11 Instruction Manual

HANDHELD CONTROL HEAD INTERFACE KIT
KRK-11
INSTRUCTION MANUAL
F
eatures

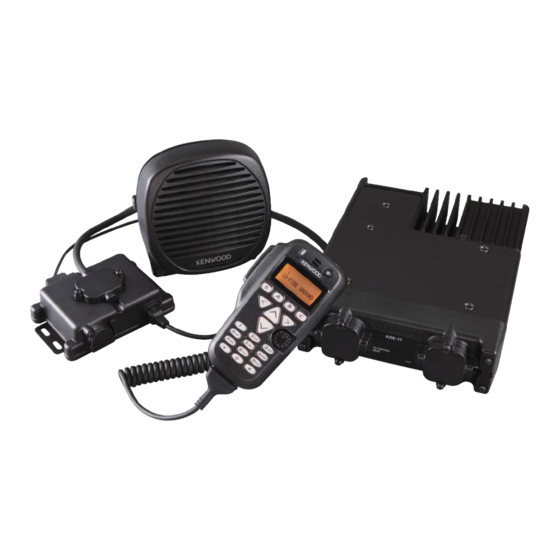

・ This is an optional accessory for the KCH-16.
・ You can connect an external speaker to the interface box.
s a
upplied ccessories
Item
Interface Box
Main body panel assembly
Ground cable
Retaining band
Retaining bracket
Connector
Screw set
Screw set
Instruction manual
Interface box
Main body panel assembly
Ground cable
Retaining band
Part Number Quantity
−
1
−
1
E30-3085-XX 1
J61-0307-XX 1
J21-4354-XX 2
E59-0426-XX 1
N99-2069-XX 1
N99-2070-XX 1
B62-2102-XX 1
Screw set : N99-2069-XX
(For Interface box)
Screw set N99-2070-XX
(For Main body panel assembly)
Connector
Retaining bracket
Note:
◆ The following instructions are for use by your Kenwood dealer, an
authorized Kenwood service facility, or the factory.
◆ Refer to the Service manual for detailed information regarding the
installation of the KCH-16.
i
nstallation
The following tools and parts are required for installing the handheld
control head interface kit.
・ Phillips No. 2 screw driver
・ KCT-22 Remote Control Cable
hanger
KCH-16
External speaker
(Option)
Note:
◆ When connecting the KCH-16 to the Interface box, do not connect
the MIC to the programming connector of the Interface box.
◆ The programming connector of the interface box is dedicated to
programming.
◆ The control connector of the interface box is dedicated to the
KCH-16; do not use this connector for other equipment.
◆ The optional jack is supplied for future expansion. It cannot be used
at this time.
◆ Do not remove the covers or caps of connectors that are not
currently being used.
◆ After connecting the KCH-16 and turning on the power, do not
remove the KCH-16.
© B62-2102-00 (M)
Transceiver
KCT-18 (Option)
Ignition Sense Cable
KCT-22 (Option)
Remote Control
Interface box
Cable
