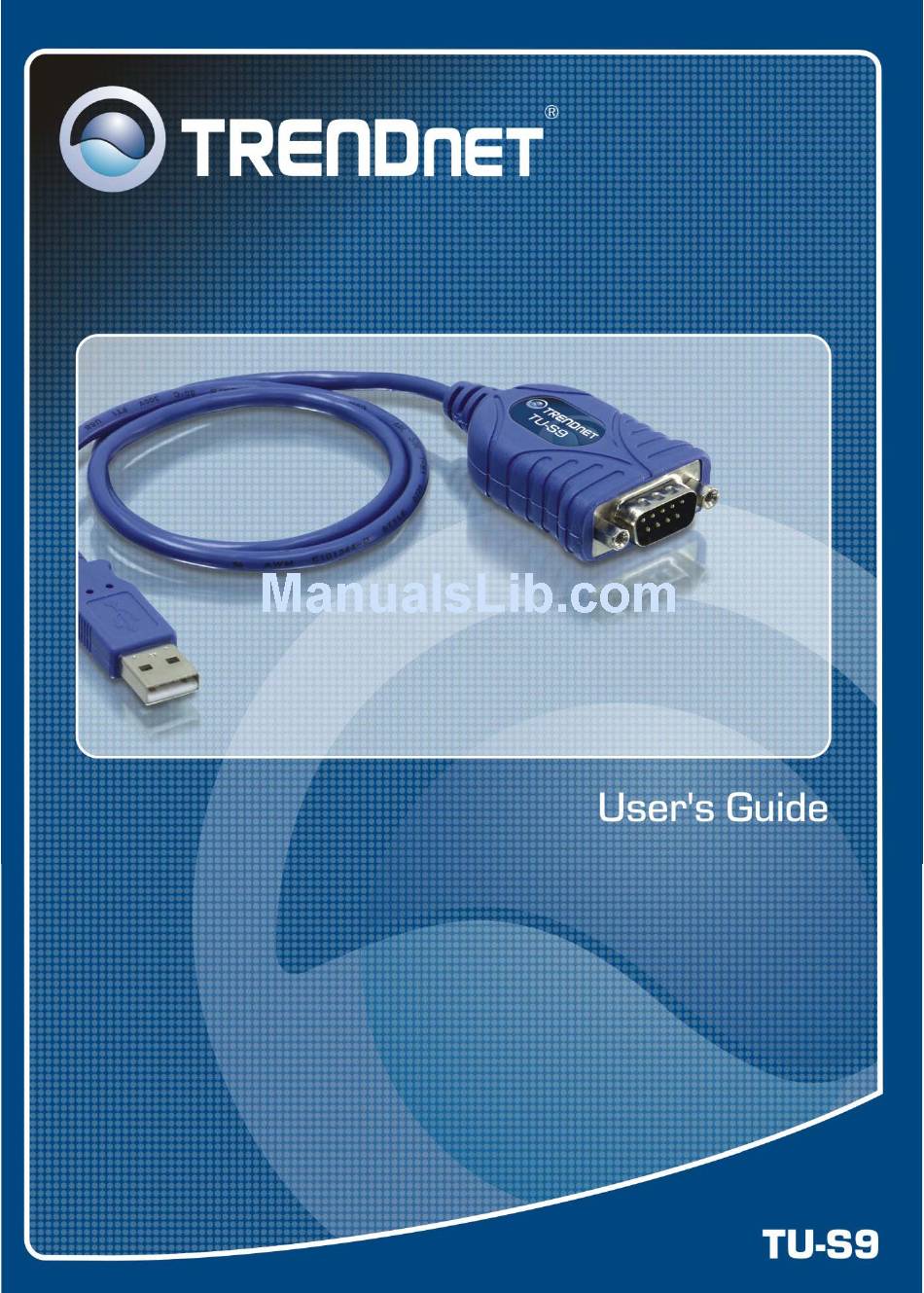

TRENDnet TU-S9 User Manual
  1. Manuals
  2. Brands
  3. TRENDnet Manuals
  4. Media Converter
  5. TU-S9
  6. User manual

TRENDnet TU-S9 User Manual

Usb serial converter
Hide thumbs Also See for TU-S9:
Table of Contents

Advertisement

Quick Links

See also: User Manual

Advertisement

Table of Contents
loading

Related Manuals for TRENDnet TU-S9

Summary of Contents for TRENDnet TU-S9

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction ...1 Features ... 1 Package Contents ... 1 System Requirements... 1 2. Installation ...2 On Windows Vista ... 2 On Windows 98SE/ME/2000/XP... 4 Verify the Driver Installation on Windows ... 5 On Mac OS X... 6 Connecting Serial Device...

  • Page 3: Introduction

    Draws its power from USB connection – no extra power adapter required Supports Windows 98SE, ME, 2000, XP, Vista 32/64-bit and Mac10.x Package Contents Before installation, please check the items of the package. TU-S9 Driver CD-ROM Quick Installation Guide System Requirements IBM compatible computer or Mac Windows ®...

  • Page 4: Installation

    2. Installation On Windows Vista 1. Connect the USB Serial Converter to the USB port on your computer. 2. When the Found New Hardware appears, select Locate and install driver software (recommended). 3. Insert the provided CD-ROM into your CD-ROM drive and click Next. (Sometimes the installer will automatically proceed to next step.)
  • Page 5 4. When the installation is done, click Close. 5. A pop-up message will appear in the notification area indicating the installation is complete. Restart your computer if prompted to do so.

  • Page 6: On Windows 98Se/Me/2000/Xp

    On Windows 98SE/ME/2000/XP Note: DO NOT connect the USB Serial Converter to your computer before completing the driver installation. 1. Insert the provided CD into your CD-ROM drive. Run the Setup file under x:\Driver\Win98_XP where x: is your CD-ROM drive letter. When the welcome screen appears, click Next.

  • Page 7: Verify The Driver Installation On Windows

    Verify the Driver Installation on Windows To verify your converter installation, please launch Device Manager by the steps below: On Windows 98SE/ME/2000/XP: Right-click the My Computer icon on the desktop and select Properties > System > (Hardware) > Device Manager. On Windows Vista: Right-click the Computer icon on the desktop and select Properties >...

  • Page 8: On Mac Os X

    On Mac OS X The provided Mac X driver supports: Mac OS 10.1 and above for PowerPC based Mac Mac OS 10.4 and above for Intel based Mac To install the drivers: 1. Insert the provided driver CD into your CD-ROM drive. Double-click the CD icon on the desktop and navigate to the directory of \Driver\MacX.
  • Page 9 4. Select a destination disk to install the driver and click Continue. 5. Click Install. 6. When the Authenticate screen appears, enter your password in the provided field and click OK.

  • Page 10: Connecting Serial Device

    7. Click Continue Installation. 8. Click Restart to finish installing the driver and reboot your Mac. 9. Connect the converter to a free USB port on your Mac. 10. To verify the installation: Go to Apple System Profiler > Extensions and you should find ProlificUsbSerial among the list.

  • Page 11: Specifications

    3. Specifications Data Transfer Rate Function Ports Power Operating System Support Accessories 500 kbps USB1.1 Serial Converter operates as a bridge between one USB port and standard RS-232 serial port USB 1.1, USB Type A male Bus-powered Windows 98SE, ME, 2000, XP, Vista Mac OS X 10.1 ~ 10.4 Driver CD, Quick Installation Guide * Specification is subject to change without further notice.

  • Page 12: Regulatory Compliance

    4. Regulatory Compliance FCC Conditions This equipment has been tested and found to comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received. Including interference that may cause undesired operation.
