5-9NM Stand-Alone Marine Lantern

INSTALLATION & SERVICE MANUAL

V1.1

Table of Contents

Troubleshooting

Summary of Contents for Iridium Sealite SL-510-SA

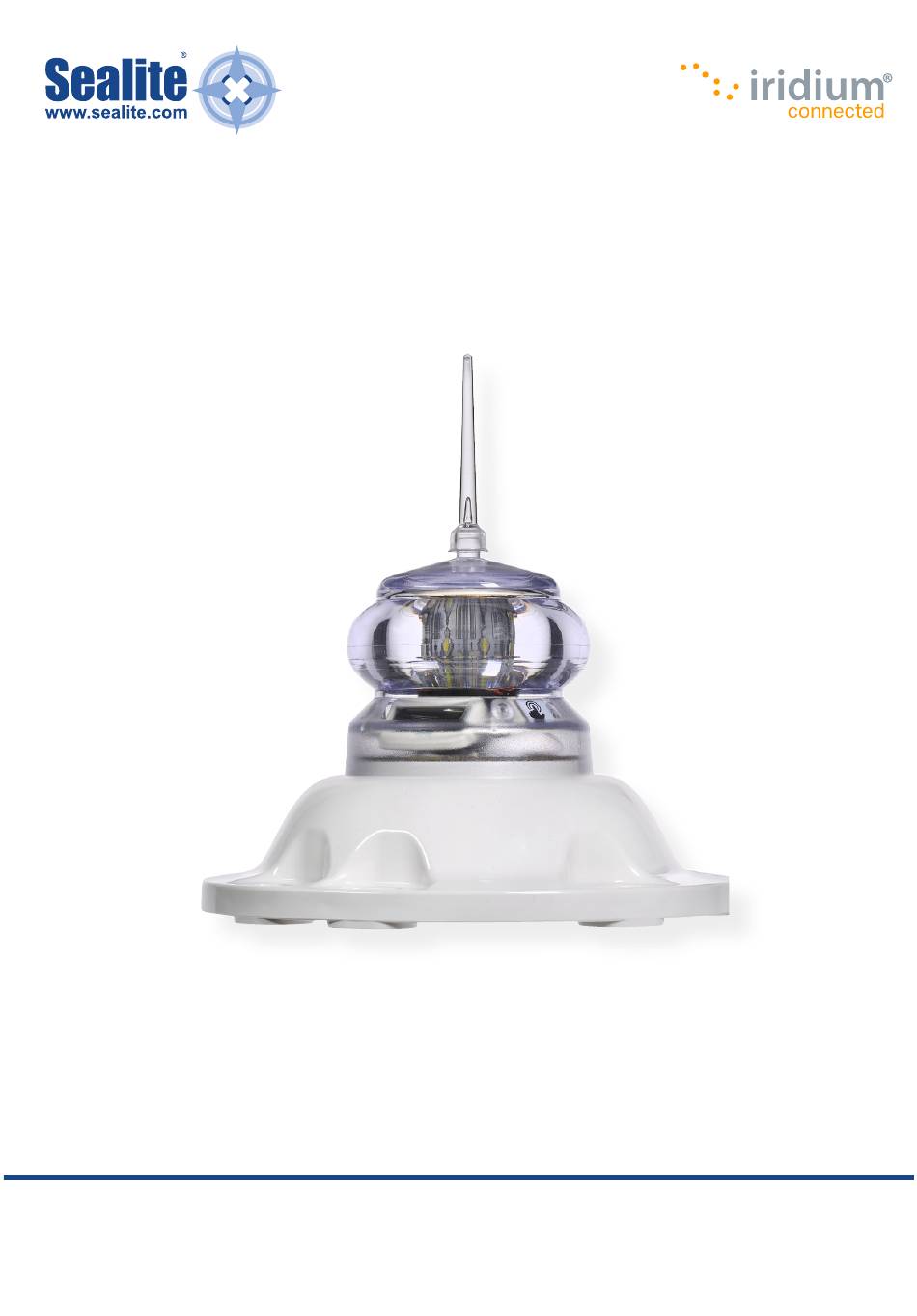

Page 1 SL-510-SA 5-9NM Stand-Alone Marine Lantern INSTALLATION & SERVICE MANUAL V1.1...
Page 2 Version No. Description Date Approved Manual Launch January 2020 M.Nicholson Lantern Data Update July 2020 M.Nicholson...
Page 3: Table Of Contents
® Optional IR Remote Control ........................Page 32 GPS Synchronisation ........................... Page 41 Optional Iridium Satellite Monitoring & Control ..............Page 42 Optional GSM Monitoring & Control System ................Page 43 Lantern Status ..............................Page 44 Lantern Thermal Management ......................Page 45 Lantern Data ...............................
Page 4: Introduction
Introduction Congratulations! By choosing to purchase a Sealite lantern you have become the owner of one of the most advanced LED marine lanterns in the world. Sealite Pty Ltd has been manufacturing lanterns for over 25 years, and particular care has been taken to ensure your lantern gives years of service.
Page 5: 510-Sa Model
SL-510-SA 5-9NM Stand-Alone Marine Lantern SL-510-SA 5-9NM Solar Marine Lantern The SL-510-SA is a robust, stand-alone 5-9 NM LED Lantern specifically designed to withstand the tough marine environment to provide years of reliable, low maintenance service. The 3 & 4 hole bolt pattern base fits directly onto existing 200mm bolt pattern industry standard mounts for ease of installation.
Page 6: Installation
Product Components The following components come as standard with each lantern: • SL-510-SA lantern • Quick Start Guide Optional • IR programmer remote These components are securely packaged within protective wrap, in a carton and shipped to you. Please check that ALL of these components are included with your order and contact your Sealite representative as soon as possible if anything is missing.
Page 7: Viewing Lantern Settings
SL-510-SA 5-9NM Stand-Alone Marine Lantern Viewing Lantern Settings The SL-510-SA models are equipped with a very low power consumption OLED display, providing a quick and easy lantern status and diagnostic checks by maintenance staff. To activate the OLED display simply touch the indicated location. Once activated, the OLED will display in sequence the following information: •...
Page 8: Summary Of Lantern Status & Info Tab
Info Tab The following summary indicates the data that can be visualized on the Lantern OLED Display. Display Description Sealite Displays the manufacture revision number. V1.08 Indicates the lantern current operation mode: Standby - The lantern is configured in a minimum current state; Operation Mode Always on –...
Page 9: Programming The Lantern
SL-510-SA 5-9NM Stand-Alone Marine Lantern Programming the Lantern SealitePro Bluetooth Guide ® ® The SealitePro application is used to communicate with Sealite lighting products that have Bluetooth ® ® technology fitted. To note, only one device may be connected at any one time. The Bluetooth control offers the following main functionality: ®...
Page 10: Sealitepro ® Bluetooth ® Controller Functions
Bluetooth Controller Functions ® The Sealite SL-510-SA Bluetooth Control System accessible via the SealitePro App is divided into seven ® ® simple sections as outlined below and displayed on the App home screen; • Lantern Identification • Lantern Type • Lantern Name •...
Page 11: Accessing The Sealitepro ® App For The First Time
SL-510-SA 5-9NM Stand-Alone Marine Lantern Accessing the SealitePro App for the first time ® Opening the SealitePro App on an Android or iOS Device ® ® Download the SealitePro App from Google Play (search for “Sealite” in the ® store) on an Android Tablet or Smartphone or via the App store on an iOS ®...
Page 12 Expand the “Lantern Information” section if collapsed. Identify Bluetooth Radio ID When “Identify” on the Tablet or phone is selected, the connected lantern will flash quickly (10 times). For iOS, identify is represented by a flash / burst icon. Set the Lantern Name Press “Name”...
Page 13 SL-510-SA 5-9NM Stand-Alone Marine Lantern Create Security Access PIN The factory default does not set the lantern with a Security PIN. 1. To set a PIN, select “Authentication Level” (“Bluetooth Authentication for iOS”) then enter a New PIN and press “OK”.
Page 14: Sealitepro ® Password Reset Procedure
SealitePro Password Reset Procedure ® In the event where the password set is unknown the procedure below should be followed: Step 1 – Disconnect the power supply from the light head: Disconnect the light head from the power and then reconnect. Step 2 –...
Page 15 SL-510-SA 5-9NM Stand-Alone Marine Lantern (c). Expand the “Lantern Information” drop down menu then press select “Authentication Level” (“Bluetooth Authentication for iOS”). NOTE – If “User Authenticated” under “Authentication Level” or Bluetooth Authentication appears the limited time that allows to modify the PIN has expired. Therefore, start the process again at Step 1;...
Page 16: Lantern Status
Lantern Status From the “Lantern Status” section the user can verify the current lantern status • Voltage The battery voltage. • Status Displays the battery health status, the current light sensor state and if the GPS is enabled, synchronised or off station.
Page 17: Programming Options
SL-510-SA 5-9NM Stand-Alone Marine Lantern Programming Options The SL-510-SA lantern settings can be configured via the programming options menu. Operating Mode: To change the Operating Mode, press the Operating Mode field and then select one of three available options: • Standby - The lantern is configured in a minimum current state in which the LEDs are always off and the internal GPS is disabled.
Page 18 Flash Code Sealite marine lanterns may be set to any of the 256 IALA recommended flash characters which are user-adjustable on site. SEALITE code reference is listed by the number of flashes. For the latest version of this document ® visit www.sealite.com or email...
Page 19 SL-510-SA 5-9NM Stand-Alone Marine Lantern Code – Select the Flash Code from the Sealite Flash Code table provided in the Appendix section. Once the Flash Code is established press “Set / Apply” to confirm the change. Please Note – The number of flashing combinations are limited. For more information please check the Sealite Flash Code table.
Page 21 SL-510-SA 5-9NM Stand-Alone Marine Lantern Intensity The lantern intensity level can be set by either defining the operating range of the lantern (in nautical miles) or by entering the available percentage intensity level. When Schmidt Clausen is applied, the lantern will automatically adjust the intensity level based on the entered range and Flash Code setting.
Page 22 NOTE – If an intensity level is selected that is beyond the specification of the lantern, the entered figure will be displayed in red, with the lantern automatically configuring to the maximum possible of 100%. In addition, once the intensity is selected the winter autonomy will be recalculated.
Page 23 SL-510-SA 5-9NM Stand-Alone Marine Lantern Sync Offset This panel is used to set a Flash Code delay. The built-in GPS receiver and advanced software of the Sealite synchronised lanterns allow for the adoption of Sync Offset channel marking – a unique system that cascades the flash synchronisation of channel lanterns in a uni or bi- directional flash pattern.
Page 24 GPS Mode The lanterns come fitted with a GPS module, and provide the user with the ability to install independently operating lanterns that all flash in Synchronisation. No additional power supplies, aerials or control systems are required and with its microprocessor-based system, the GPS is specifically designed to provide maximum reliability and performance over a wide range of environmental conditions.
Page 25 SL-510-SA 5-9NM Stand-Alone Marine Lantern Hibernation Hibernation Mode maximizes conservation of the battery power by disabling the light (will not activate at night) and shutting off the GPS receiver to rely on the internal clock for date checking. Hibernation Mode can be set by programming a start date and end date via the SealitePro ®...
Page 26: Manufacturing Data
Manufacturing Data When connected via Bluetooth, data about the lantern hardware will appear on the “Manufacturing Data” tab. From this drop-down tab the user will be able to verify the information that identifies the lantern’s internal electronic hardware and firmware versions. Moreover, the Lantern Printed Circuit Board Serial number is identified.
Page 27 SL-510-SA 5-9NM Stand-Alone Marine Lantern Let’s try a practical example If Bluetooth connection is established, data about the lantern battery charge and load current will appear on the “Power Monitoring” tab. From this drop-down tab the user will be able to verify the amount of battery charge that the lantern was able to capture in the previous 24 hours.
Page 28 • Set Default Email* Note Android only ® This option allows to search for an existing contact on the device to use as the default recipient of configuration and status emails.
Page 29 SL-510-SA 5-9NM Stand-Alone Marine Lantern • Factory Reset: This feature will reset automatically all previously lantern settings to a Factory Reset. If the option is selected, a confirmation message will display to confirm. Select “Perform Reset” to confirm the reset. Please Note –...
Page 30: Sealitepro ® Troubleshooting
SealitePro Troubleshooting ® Questions Answers I purchased a lantern fitted with a If the GPS is not functioning ensure the GPS is enabled. Select GPS for synchronisation. However, it “Programming Options” then check under GPS mode. If “off” appears not to work. appears, the GPS is disabled.
Page 31 SL-510-SA 5-9NM Stand-Alone Marine Lantern Questions Answers When I press ‘Connect via Bluetooth’, I Connecting to a lantern via Bluetooth requires that the mobile see the message ‘ A n App/ SealitePro device has Bluetooth turned on. If this message appears it is ®...
Page 32: Optional Ir Remote Control
Optional IR Remote Control The IR programmer is used to communicate with Sealite lighting products that have an IR sensor fitted. The remote control is used for the following functions: • Flash Code: Read the current flash code, configure a new flash code. Test / Con gure •...
Page 33 SL-510-SA 5-9NM Stand-Alone Marine Lantern IR Controller Functions Test Mode / Configure Pressing the T/C button up to 5 seconds places the light in Test Mode. The light will flash once in response to the T/C button being pressed and then turn off. Normal Operation The light will return to normal operation once it has not detected a valid key press for 30 seconds.
Page 34 Flash Code Numbers The lamp flashes numbers as follows: Hundreds, Tens, Ones. A value of 125 will be flashed as: 1 flash, followed by a delay, 2 flashes, followed by a delay, 5 flashes. The flash for number 0 is one long flash. For example if the current Flash Code is set to 51 via the AB switches, the lamp will flash number 081.
Page 35 SL-510-SA 5-9NM Stand-Alone Marine Lantern This key sets the ambient light threshold levels. The format is where ‘x’ is the desired setting from the table below. There are 5 programmable lux levels which are set together for the sunset and sunrise transitions. Sunset Sunrise Level...
Page 36 Error / Acknowledge Indication If the key sequence is invalid, or an out of bounds value is attempted to be set, the light flashes 5 times for 1 second. (The command then needs to be sent from the start.) Example key sequence: (Set the intensity level to 5 – undefined.) The light flashes 5 times for 1 second.
Page 37 SL-510-SA 5-9NM Stand-Alone Marine Lantern Operational Mode (Advanced users) The lantern has three modes of operation: Always on, Standby Mode and Dusk-to-Dawn mode. These modes can be selected either via the IR Remote Control or via the GSM module (if fitted). •...
Page 38 Store Hibernation Mode Date Range The following details the key press sequence that defines the start and end dates of Hibernation Mode: where ddmm is the numerical representation of the month (01=January, 08=August) of the start date, DDMM is the numerical representation of the end date. E.g 9th of December is represented by the number sequence 0912.
Page 39 SL-510-SA 5-9NM Stand-Alone Marine Lantern Read Hibernation By pressing the following key sequence the lantern will respond with status of Hibernation Mode. Where: • A single long flash = Hibernation Mode is Enabled • Two quick flashes = Hibernation Mode is Disabled. User Case Example: Configuring the lantern for Hibernation In this example, we want the lantern to hibernate each year from Dec 10th, through to February 15th, and the lantern is located inside a storage warehouse.
Page 40 IR Controller Security PIN The IR Controller allows to create a four-digit numbers security access PIN, this will prevent accessing or modifying the SL-510-SA settings. Once the Security PIN is set this it will lock the lantern immediately. In order to access the light settings, the Unlock PIN command needs to be used, this will allow access to the light settings for 30 minutes then the light will re-lock again.
Page 41: Gps Synchronisation
SL-510-SA 5-9NM Stand-Alone Marine Lantern GPS Synchronisation The SL-510-SA lanterns are fitted with GPS and provide the user with the ability to install independently operating lanterns that all flash in synchronisation. No additional power supplies, aerials or control systems are required, and with its microprocessor- based system, the GPS option is specifically designed to provide maximum reliability and performance over a wide range of environmental conditions.
Page 42: Optional Iridium Satellite Monitoring & Control
Optional Iridium Satellite Monitoring ® & Control System The SL-510-SA may also be fitted with Satellite Monitoring and Control – enabling users to access real- time diagnostics data and change lantern settings via your portable device or desktop. The Star2M Portal can also be configured to send out alarm SMS text messages to designated cellular telephone numbers.
Page 43: Optional Gsm Monitoring & Control System
SL-510-SA 5-9NM Stand-Alone Marine Lantern Optional GSM Monitoring & Control System The SL-510-SA may also be fitted with GSM Cell-Phone Monitoring and Control – enabling users to access real-time diagnostics data and change lantern settings via cell-phone. The system can also be configured to send out alarm SMS text messages to designated cellular telephone numbers.
Page 44: Lantern Status
Lantern Status Two status LED’s on the main printed circuit board provide the operator with an indication of the lantern status. There is one red and one yellow status LED. The red status LED is used to indicate the health of the lantern’s power system. The yellow status LED is used to indicate the operational status of the lantern.
Page 45: Lantern Thermal Management
SL-510-SA 5-9NM Stand-Alone Marine Lantern Lantern Thermal Management The lantern incorporates a dynamic intensity module as part of the thermal management system that ensures it operates within the thermal design window. In practice the thermal management system limits the lanterns average power consumption by automatically adjusting the intensity to prevent overheating.
Page 46: Thermal Limit Operation
Thermal Limit Operation Automatically the lantern calculates the MULTIPLIER and compares it to the maximum power Thermal Limit. If the calculated value exceeds maximum power thermal limit, then the intensity is reduced to the highest intensity step to ensure that it is not exceeded. a) Power is a measure of the rate in which electrical energy is transferred within an electrical circuit and is measured in Watts (W).
Page 47: Appendix
SL-510-SA 5-9NM Stand-Alone Marine Lantern Appendix Flash Codes The Sealite SL-510-SA may be set to any of 256 IALA recommended flash settings which are user- adjustable onsite. SEALITE code reference is listed by number of flashes ® For the latest version of this document visit www.sealite.com, or email info@sealite.com...
Page 48 MARK DESCRIPTION RHYTHM Port Hand & Starboard Marks: Any, other than Composite Group Flashing (2+1) Preferred Channel Starboard: Composite Group Flashing (2+1) Preferred Channel Port: Composite Group Flashing (2+1) North Cardinal Mark: Very quick or quick East Cardinal Mark: Very quick (3) every 5 seconds or quick (3) every 10 seconds South Cardinal Mark: Very quick (6) + long flash every 10 seconds or quick (6) + long flash every 15 seconds West Cardinal Mark:...
Page 49 SL-510-SA 5-9NM Stand-Alone Marine Lantern CODE IR Controller FLASH CODE CODE IR Controller FLASH CODE ISO 5 S OC 8 S LFL 5 S LFL 8 S OC 5 S FL 9 S OC 5 S FL 9 S OC 5 S OC 9 S FL 6 S FL 10 S...
Page 50 HEX CODE IR Controller FLASH CODE FL (2) 4 S VQ (2) 4 S FL (2) 4.5 S FL (2) 4.5 S FL (2) 4.5 S FL (2) 4.6 S FL (2) 5 S FL (2) 5 S FL (2) 5 S FL (2) 5 S FL (2) 5 S FL (2) 5 S...
Page 51 SL-510-SA 5-9NM Stand-Alone Marine Lantern HEX CODE IR Controller FLASH CODE Q (3) 5 S VQ (3) 5 S VQ (3) 5 S VQ (3) 5 S FL (3) 5 S FL (3) 6 S FL (2+1) 6 S HEX CODE IR Controller FLASH CODE Q (3) 6 S...
Page 52 HEX CODE Controller FLASH CODE VQ (4) 2 S 0.10 0.13 0.10 0.13 0.10 0.13 0.10 1.21 VQ (4) 4 S Q (4) 6 S Q (4) 6 S FL (1+3) 8 S FL (4) 7 S FL (4) 10 S FL (4) 10 S Q (4) 10 S FL (4) 10 S...
Page 53 SL-510-SA 5-9NM Stand-Alone Marine Lantern CODE Controller FLASH CODE VQ (6) + LFL 10 S VQ (6) + LFL 10 S Q (6) + LFL 15 S Q (6) + LFL 15 S Q (6) + LFL 15 S FL (6 + 1) 15 S 0.35 0.65 0.35 0.65 0.35 0.65 0.35 0.65 0.35 0.65 0.35 0.65 1.05 7.95 FL (6) + LFL 15 S...
Page 54: Maintenance & Servicing
Maintenance & Servicing Designed to be almost maintenance-free, the SL-510-SA requires minimal attention, though the following maintenance and servicing information is provided to help ensure the life of your Sealite product. Disconnect the lantern from the power cable. 2. Clean the lens and base regularly using a cloth and warm soapy water. Wipe off any foreign matter before rinsing with fresh, clean water.
Page 55: Trouble Shooting
SL-510-SA 5-9NM Stand-Alone Marine Lantern Trouble Shooting Problem Remedy Lantern will not activate. • Ensure Lantern is in darkness • Wait at least 60 seconds for the program to initialise in darkness • Ensure battery terminals are properly connected • Ensure battery voltage is above 12 volts •...
Page 56 We believe technology improves navigation sealite.com info@sealite.com Sealite Pty Ltd Sealite Asia Pte Ltd Sealite United Kingdom Ltd Sealite USA LLC Australia Singapore +61 (0)3 5977 6128 +65 6908 2917 +44 (0) 1502 588026 +1 (603) 737 1311...
