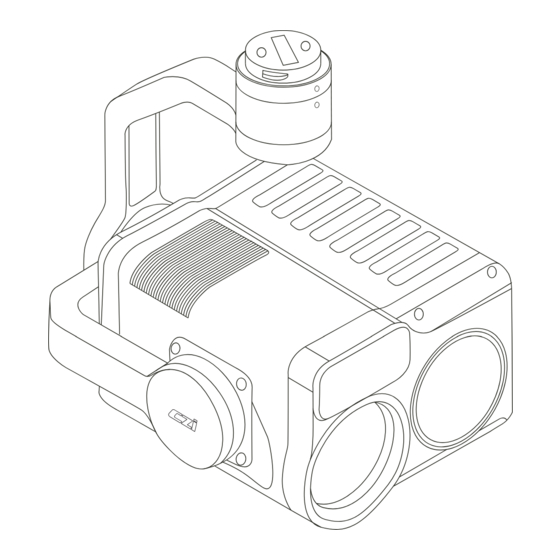

C30N

Smart Dual-light Night

Vision Camera

User Manual

V1.0

2023.05

Table of Contents

Summary of Contents for CZZN C30N

Page 1 C30N Smart Dual-light Night Vision Camera User Manual V1.0 2023.05...
Page 2: Table Of Contents
Content I. Disclaimers and Warnings..........2 II. Introduction to C30N............. 3 III. Installation..............4 IV. Activation ...............5 V. Control through remote controller........6 VI. Control through czi Pilot App ........7 VII. Control through DJI Pilot2 App........16 VIII. Firmware Upgrade ............ 24...
Page 3 Warning Product Precautions 1.After use, please store the device in the secure box of C30N and replace the desiccant in a timely manner to prevent fogging of the lens due to high environmental humidity. If fogging occurs, it usually dissipates after a period of operation.
Page 4: Disclaimers And Warnings
2.Since the IR spotlight of C30N is classiﬁed as a Class 1 non-visible laser, it is strictly prohibited to direct view against the light or observe the laser beam with optical instruments when the laser light is turned on.
Page 5: Introduction To C30N
II. Introduction to C30N CZI C30N smart dual-light night vision camera is equipped with a 1K resolution long-wave infrared uncooled thermal imaging camera, a zoom visible light camera, and an infrared spotlight. The thermal imaging with a resolution of 1280 and a focal length of 55mm enables users to conduct long-range searches of suspected targets during nighttime.
Page 6: Installation
III. Installation Supported drone types Matrice 300/350 RTK Please replace the damper for the ﬁrst-time use. Install it into the drone 1. Remove the gimbal interface protective cover and lens protective cover.
Page 7: Activation
2. Insert the C30N into the installation position of the Matrice 300/350 RTK payload after aligning the white dot and red dot, then rotate the payload interface to the locking position to secure the payload. ② ① ·The structure of payload interface is designed to be compact, so please use your hand to ﬁrmly hold the mounting platform while applying force to...
Page 8 The payload cannot be operated before activating the device.
Page 9: Control Through Remote Controller
V. Control through remote controller The left and right thumb wheels on the remote controller are used to control the pitch and pan angles of the payload respectively. The photo-shooting and video recording can be controlled using the designated buttons on the remote controller.
Page 10: Control Through Czi Pilot App
The interface images below are for reference only. The actual eﬀects may vary depending on the version of the App provided Basic Functions On the camera page, you can preview the captured image of C30N and make camera parameter adjustments. Below is an example of the main screen displaying the zoom camera view.
Page 11 4. Auto Exposure Lock Click it to lock the current exposure value. 5. Focus Mode Click it to adjust the focus mode of the zoom camera, supporting MF (Manual Focus) and AF (Auto Focus). 6. Storage It displays the current remaining storage of the microSD card. 7.
Page 12 11. Operation Guide 12. Photo/Video Switch Button Click it to switch between photo-shooting and video recording modes, and diﬀerent photo-shooting or video recording modes are optional. oto-shooting modes: Single photo-shooting, uninterrupted photo-shooting, Timed photo-shooting. 13、 14、 15. Zoom Adjustment for Zoom Camera Press and hold it to adjust the zoom ratio of the zoom camera.
Page 13 21. Laser ranging Click it to enable the laser ranging function. Laser ranging allows the users to measure the distance to objects within the measurement range and displays the distance between the measured object at the center of the screen and the drone.
Page 14 23. Infrared/Zoom Mode Switching It can switch between Infrared Thermal Imaging Mode and Zoom Mode. 24. Split-screen format The images from the infrared camera and zoom camera are displayed in a split-screen format, with appropriate cropping of the visible light image on the left and right sides.
Page 15 Detection Mode： Automatically detect people or vehicle targets in the frame and indicate it with white dots. Click on the corresponding target dot to switch to the tracking mode. In the detection mode, clicking the algorithm button again can exit the AI algorithm mode. Tracking Mode：...
Page 16 26. Wildﬁre Mode Click it to enable/disable Wildﬁre Mode. When it is enabled, the infrared display mode will be optimized for better observation of high-temperature diﬀerences, such as ﬁre situations. 27. Infrared Pseudo-color Switching Various pseudo-color modes such as White Heat, Lava, Iron Red, Hot Iron, Medical, Arctic, Rainbow 1, Rainbow 2, Outline, and Black Heat are available.
Page 17 Color Palette White Heat Lava Iron Red Hot Iron Medical Arctic Rainbow 1 Rainbow 2 Outline Red Black Heat The colors in thermal images are used to represent temperature, and the temperature range in the image will be mapped to 256 color levels. White Heat Black Heat Iron Red...
Page 18 28.Infrared Camera Zoom Setting Auto Mode : The infrared camera is linked with the zoom camera for zooming. You can set it using the continuous zoom control. The maximum zoom level for the infrared camera is 32×. Manual Mode: 4×, 8×, 16×, 32×: Set the electronic zoom level for the infrared camera.
Page 19 The temperature measurement function is relatively complex and is subject to environmental inﬂuences. Therefore, the measured temperatures should be used for reference only. The environmental factors that can aﬀect temperature measurement include： 1. Object emissivity: Objects with high reﬂectivity, such as shiny metal surfaces, have higher reﬂectivity, so the temperature measured by the infrared camera will be closer to the background or ambient temperature, resulting in larger errors.
Page 20: Control Through Dji Pilot2 App
The interface images below are for reference only, and the actual eﬀects may vary depending on the speciﬁc version of the App. Basic Function On the camera page, you can preview the shooting screen of the C30N and adjust camera settings. The example below shows the main screen with the zoom camera.
Page 21 4. Photo-shooting/Video Recording Switching Button Click it to switch between photo-shooting and video recording, and select diﬀerent modes for photo-shooting and video recording. You can also use the remote control button for quick photo-shooting and video recording. Photo-shooting modes: Single photo-shooting, uninterruptedphoto-shooting, Timed photo-shooting.
Page 22 9.External Settings Menu in PSDK AUTO 10. Display Mode Settings Click it to select from ﬁve modes: Zoom, Infrared, Split Screen, Tracking, and Infrared Thermography. Zoom Mode: it displays only the zoom camera view. Infrared Mode: it displays only the infrared camera thermal imaging view. Split Screen Mode: it displays the views of the infrared camera and zoom camera side by side.
Page 23 11.Infrared Pseudo-color Switching Various pseudo-color modes such as White Heat, Lava, Iron Red, Hot Iron, Medical, Arctic, Rainbow 1, Rainbow 2, Outline Red, and Black Heat are available. Color Palette White Heat Lava Iron Red Hot Iron Medical Arctic Rainbow 1 Rainbow 2 Outline Red Black Heat...
Page 24 The colors in thermal images are used to represent temperature, and the temperature range in the image will be mapped to 256 color levels. White Heat Black Heat Iron Red Rainbow...
Page 25 12.Infrared Camera Zoom Settings Auto Mode: The infrared camera is linked with the zoom camera for zooming. You can set it using the continuous zoom control. The maximum zoom level for the infrared camera is 32×. Manual Mode: 4×, 8×, 16×, 32×: Set the electronic zoom level for the infrared camera.
Page 26 ·Image Stabilization There are options of Oﬀ, Super Stabilization, and Super+ Stabilization. ·Video Bitrate It adjusts the smoothness of the remote controller's screen through controlling the video bitrate (this function only aﬀects the quality of real-time preview, not the quality of photos and videos). ·2D noise reduction There are options of Oﬀ...
Page 27 ·Gain Set the gain for the zoom camera. ·Gain Limit Set the gain limit for the zoom camera. ·White Balance Mode There are various White Balance Modes such as Auto White Balance Mode, Indoor White Balance Mode, Outdoor White Balance Mode, Auto Tracking White Balance Mode, and Outdoor Auto White Balance Mode.
Page 28: Firmware Upgrade
2.Place the ﬁrmware upgrade package in the root directory of the microSD card; 3.Insert the microSD card into the microSD card slot of the C30N camera; 4.The camera will perform a self-check and automatically start the ﬁrmware upgrade after powering on the drone;...
Page 29: Technical Parameter
IX. Technical parameter Product Name C30N Dimension 173×152×191mm Weight ≤1510g±10g Safety level of human class1 eyes Matrice300 RTK / Models from other Supported models manufacturers Gimbal parameter Gimbal jitter ±0.01° Installation mode Detachable Controllable rotation Translation: ± 90°, pitch:-120° to +30°...
Page 30 Zoom camera 1/1.8" CMOS with 4 million eﬀective pixels. Image sensor Focal length: 6.5-162.5 mm (equivalent focal length: about 3L85-796 mm) Aperture: f/1.6f/14 Lens Focus distance: 10 cm to inﬁnity Focus mode AF/MF Exposure mode Manual exposure, automatic exposure in program Exposure compensation ±...
Page 31 Long-focus infrared camera Non-cooled Vanadium oxide (VOx) infrared focal Thermal imaging sensor plane detector DFOV:20.1° Focal length: 55 mm (equivalent focal length: about 121 mm) Lens Aperture: f/1.1 Focusing distance: 100 m to inﬁnity. Equivalent multiple of 4× 8× 16× 32× digital zoom 1280×1024@30fps Video resolution...
Page 32 Laser rangeﬁnder Wavelength 905nm <400m ±1m >400m ±0.4% Measurement accuracy Measurement range 10-1200m Laser supplementary light Wavelength 850nm Light output power ≥2W （±0.5W） Light output angle 3° Operating range >400m Storage Support microSD card with maximum capacity of Memory card type 128 GB and transmission speed reaching UHS-I Speed Grade 3.
Page 33 czi Support www.gzczzn.com Service hotline:400-008-8306 If you have any questions or suggestions about the instructions,Please contact us through the following email address: Printed in China service@gzczzn.com...
