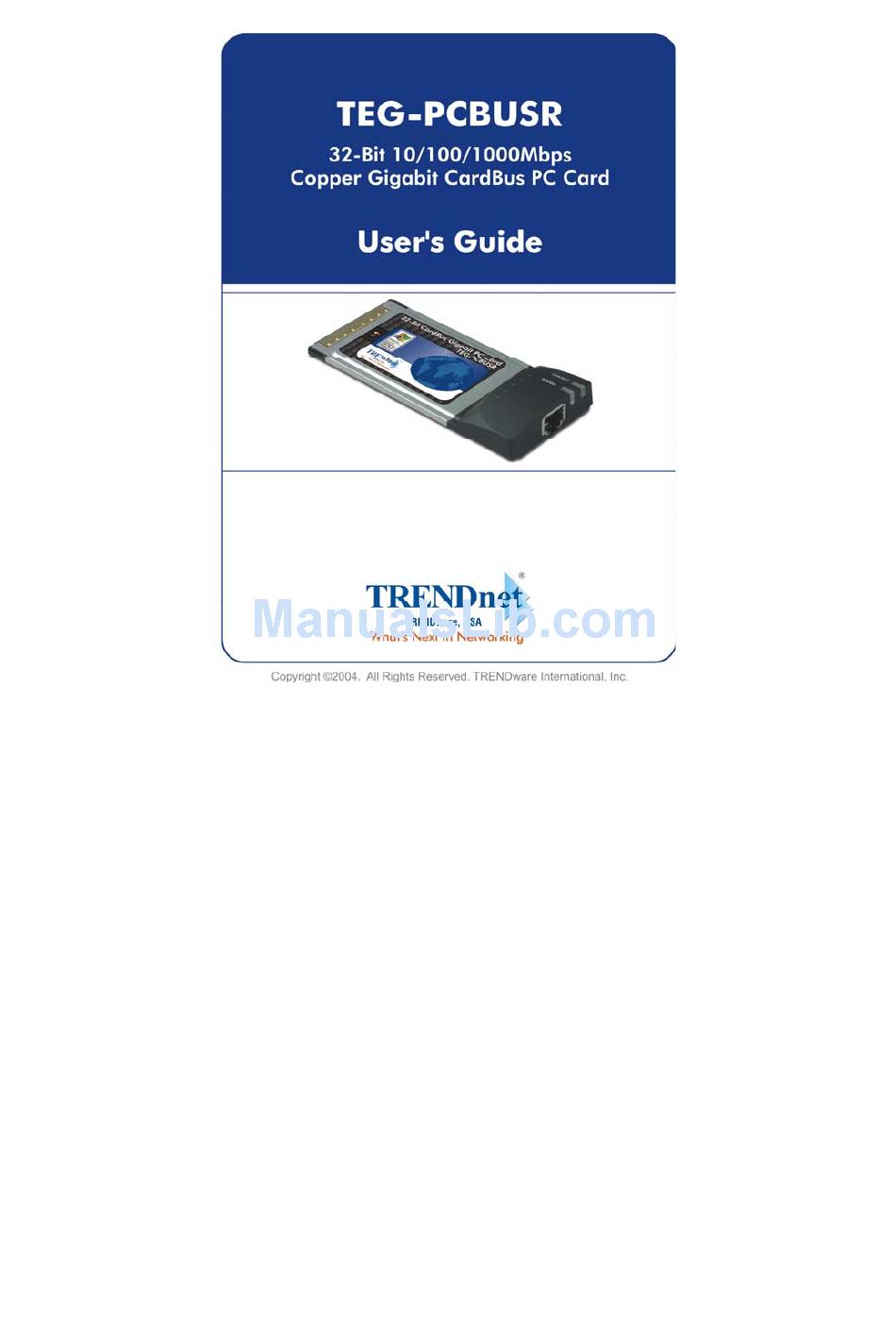

TRENDnet TEG-PCBUSR User Manual

32-bit cardbus 10/100/1000mbps gigabit ethernet pc card
Hide thumbs Also See for TEG-PCBUSR:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual

Advertisement

Table of Contents
loading

Related Manuals for TRENDnet TEG-PCBUSR

Summary of Contents for TRENDnet TEG-PCBUSR

  • Page 3: Fcc Warning

    FCC Warning This equipment has been tested and found to comply with the regulations for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 5: Table Of Contents

    Table Of Contents INTRODUCTION... 1 ... 1 ENERAL ESCRIPTION LED I ... 1 NDICATORS ... 2 UMMARY OF EATURES CARD INSERTION AND REMOVAL... 3 ... 3 NSERTION [1] Insert the 32-bit CardBus 10/100/1000Mbps Gigabit Ethernet PC Card... 3 [2] Connect to the Network Media... 4 ...

  • Page 7: Introduction

    Introduction General Description The 32-bit CardBus 10/100/1000Mbps Gigabit Ethernet PC Card is a credit-card sized Fast Ethernet adapter for connecting a notebook to an IEEE 802.3 Ethernet network, IEEE 802.3u fast Ethernet and IEEE 802.3ab Gigabit Ethernet network, it’s designed to work with notebooks or handheld computers that with CardBus slots.

  • Page 8: Summary Of Features

    Ethernet Network. Otherwise, this indicator remains off when the port is connected to a 10Mbps Ethernet Network. Summary of Features The 32-bit CardBus 10/100/1000Mbps Gigabit Ethernet PC Card provides the following features: Complies with IEEE 802.3 10BASE-T Ethernet standard Complies with IEEE 802.3u 100BASE-TX Fast Ethernet standard Complies with IEEE 802.3ab 1000BASE-T Gigabit Ethernet standard...

  • Page 9: Card Insertion And Removal

    Card Insertion and Removal Card Insertion Follow these steps install 32-bit CardBus 10/100/1000Mbps Gigabit Ethernet PC Card: [1] Insert the 32-bit CardBus 10/100/1000Mbps Gigabit Ethernet PC Card Find/select an available Type II or Type III 32-bit PC Card slot on your notebook’s side or rear panel. Holding the 32-bit CardBus 10/100/1000Mbps Gigabit Ethernet PC Card with the LED indicator facing up then insert to the 32-bit PC Card slot.

  • Page 10: Connect To The Network Media

    [2] Connect to the Network Media Simply plug one end of the cable (RJ-45 connector) into an available hub/switch port, and plug the other end (RJ-45 connector) into the RJ-45 port of your 32-bit CardBus 10/100/1000Mbps Gigabit Ethernet PC Card.

  • Page 11: Driver Installation

    Driver Installation Before you connect the 32-bit CardBus 10/100/1000Mbps Gigabit Ethernet PC Card to the network, you have to install the network driver first. The driver for each networking operating system under separate directory. HELPME.EXE file under root directory lists the information and detailed installation procedure of all the available drivers.

  • Page 12: Technical Specifications

    Technical Specifications General IEEE 802.3 10BASE-T Ethernet Standards IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet ANSI/IEEE Auto-Negotiation 32-bit CardBus PC Card Protocol CSMA/CD Ethernet: 10Mbps (half-duplex) Data Transfer Rate 20Mbps(full-duplex) Fast Ethernet: 100Mbps (half-duplex) 200Mbps (full-duplex) Gigabit Ethernet: 2000Mbps (full-duplex) 10BASE-T: 2-pair UTP Cat.

  • Page 13: Limited Warranty

    Limited Warranty TRENDware warrants its products against defects in material and workmanship, under normal use and service, for the following lengths of time from the date of purchase. Ethernet Products – 5 Years Warranty If a product does not operate as warranted above during the applicable warranty period, TRENDware shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or...
  • Page 14 contained in, stored on, or integrated with any products returned to TRENDware pursuant to any warranty. There are no user serviceable parts inside the product. Do not remove or attempt to service the product by any unauthorized service center. This warranty is voided if (i) the product has been modified or repaired by any unauthorized service center, (ii) the product was subject to accident, abuse, or improper use (iii) the...
  • Page 15 WARRANTIES EXCLUSIVE: IF THE TRENDWARE PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT TRENDWARE’S OPTION, REPAIR OR REPLACEMENT. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
  • Page 16 TORT (INCLUDING NEGLIGENCE), INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH DAMAGES,...

  • Page 17: Technical Support

    TRENDware website. TRENDware provides FREE technical support for all customers for the duration of the warranty period on this product. TRENDware Technical Support Tel: +1-310-626-6252 Fax: +1-310-626-6267 E-mail: support@trendware.com www.TRENDnet.com Monday ~ Friday, 7:30AM ~ 6:00PM Pacific Standard Time (Except holidays)
