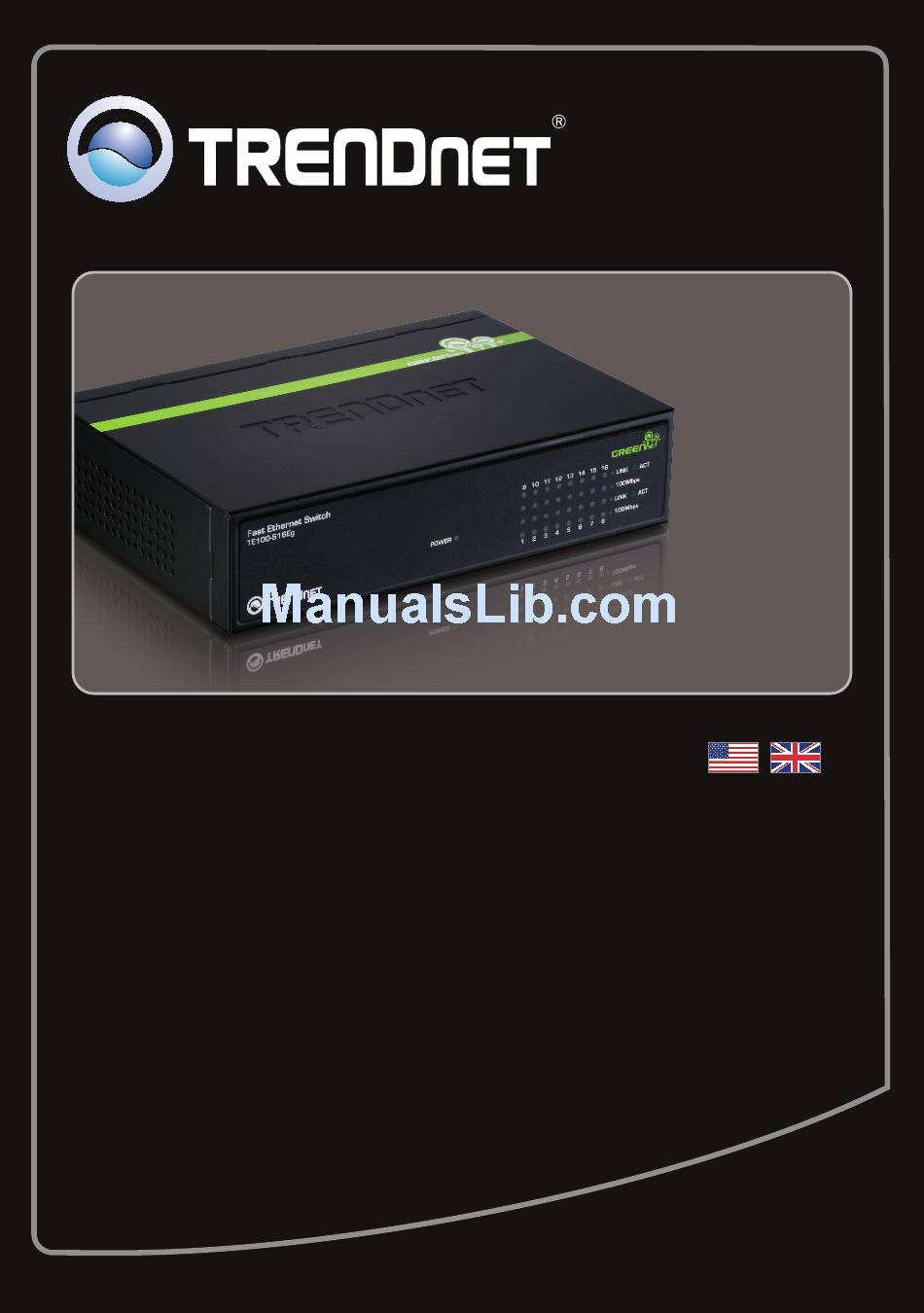

- Page 1 Quick Installation Guide TE100-S16Eg 1.01...
-
Page 2: Table Of Contents
Table of Contents English 1. Before You Start 2. Hardware Installation LEDs Technical Specifications Troubleshooting Version 10.02.2009... -
Page 3: English
CAT-5, CAT-5e or CAT-6 Network Cable The surface must support at least 1.5 Kg for the Switch The power outlet should be within 1.82 meters (6 feet) of the switch Visually inspect the DC power jack to make sure that it is securely... -
Page 4: Hardware Installation
2. Hardware Installation 1. Connect the AC Power Adapter to the TE100- S16Eg and then to a power outlet. 2. Connect a CAT-5, CAT-5e or CAT-6 RJ-45 network cable from the computer to an available Ethernet port on the TE100-S16Eg... -
Page 5: Leds
3. LEDs Power Green: Power is on Not Illuminated: Power is off 100Mbps Green: Connection for the port is 100 (Full/Half) Not Illuminated: Connection for the port is 10(Full/Half) or nothing is detected on the port. Link/ACT Green (Solid): Link to another device (10/100Mbps). -
Page 6: Technical Specifications
Technical Specifications Standards Network Media Data Transfer Rate Protocol/Topology Interface Data RAM Buffer Packet Filtering/Forwarding Rate MAC Address Learning Filtering Table Switch Fabric Power Consumption Diagnostic LEDs Power Adapter Dimensions Weight Temperature Humidity Certifications Hardware IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control... -
Page 7: Troubleshooting
Internet router such as the TW100-S4W1CA. Where is the uplink port located on the Switch? Since all the ports on the Switch are Auto-MDIX, any of the ports can be used as an uplink port. If you still encounter problems or have any questions regarding the TE100-S16Eg please contact... - Page 8 TRENDnet products. Products that are sent to TRENDnet for RMA service must have the RMA number marked on the outside of return packages and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment.
- Page 9 Go to http://www.trendnet.com/gpl the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. Please go to http://www.gnu.org/licenses/gpl.txt...
- Page 10 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 11 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register Copyright ©2009. All Rights Reserved. TRENDnet.
