Summary of Contents for LAUMAS TLB

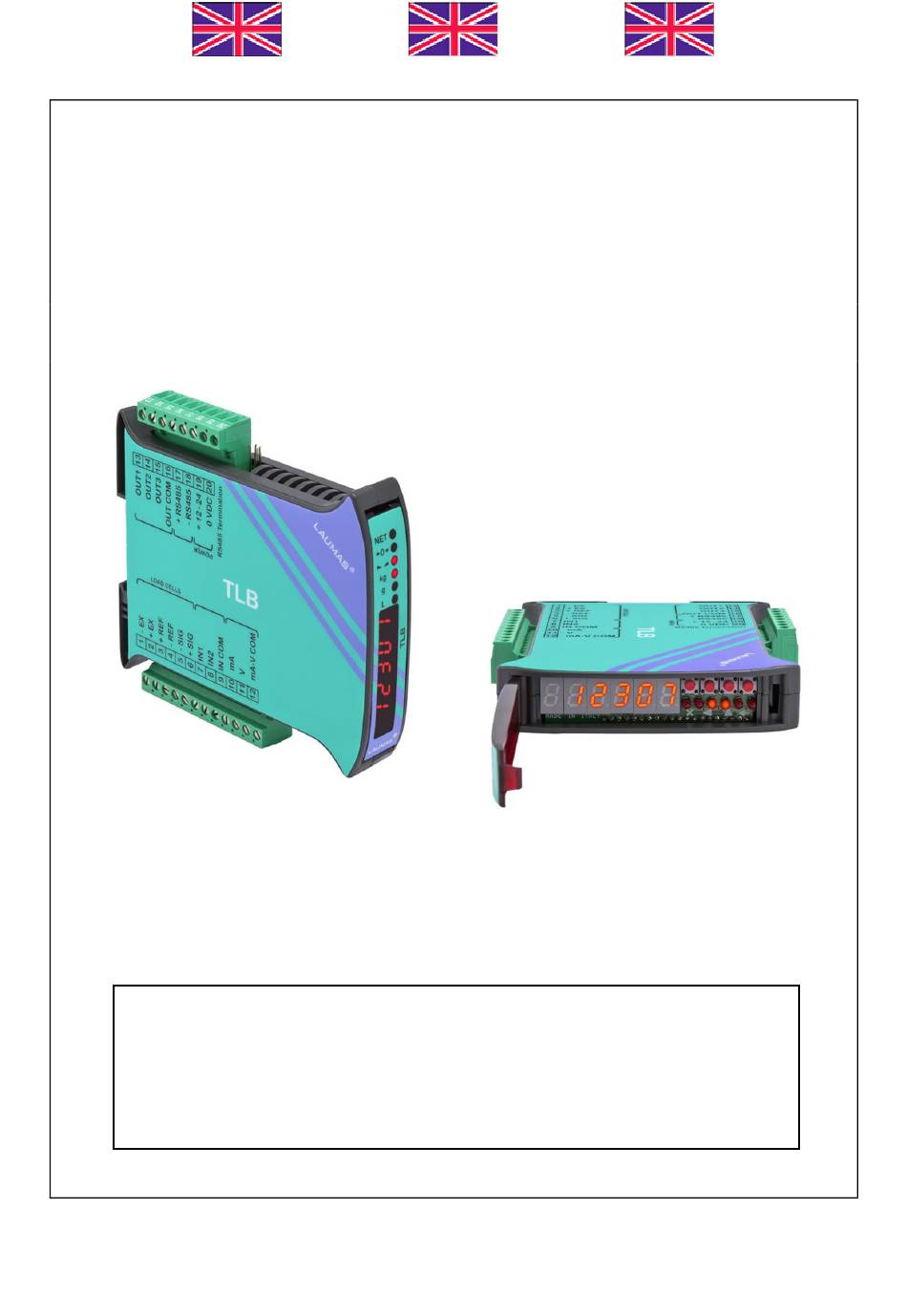

- Page 1 ENGLISH ENGLISH ENGLISH ENGLISH Installation and User Manual version 1.16...
- Page 2 - tampering, deletion, removal of the identification label and/or serial number of the product - misuse, transformation, alteration, repair of products not carried out by Laumas personnel Laumas provides a 1-year warranty from the date of the delivery note on defects in material or manufacture of the battery. GUIDELINES FOR PROPER DISPOSAL...
-
Page 3: Table Of Contents
TECHNICAL SPECIFICATIONS ....................6 ELECTRICAL CONNECTIONS ....................7 BASIC INFORMATION ....................... 7 WIRING DIAGRAM........................8 TLB – TLB485 – TLBPROFI ....................... 8 TLB (other models) ..........................9 LED AND KEYS FUNCTIONS ....................10 MENU MAP ..........................11 SETPOINT ..........................11 SYSTEM PARAMETERS ...................... - Page 4 INFO MENU ..........................28 SETPOINT PROGRAMMING ....................29 ALARMS ..........................30 RESERVED FOR THE INSTALLER ..................31 MENU LOCKING ........................31 MENU UNLOCKING ......................... 31 TEMPORARY MENU UNLOCKING ..................31 DATA DELETION AND PROGRAM SELECTION ..............31 KEYPAD OR DISPLAY LOCKING ..................32 DECLARATION OF CONFORMITY - EU ................
-
Page 5: User Warnings
USER WARNINGS RECOMMENDATIONS FOR THE PROPER USE OF WEIGHING INSTRUMENT Keep away from heat sources and direct sunlight Repair the instrument from rain (except special IP versions) Do not wash with water jets (except special IP versions) Do not dip in water Do not spill liquid on the instrument Do not use solvents to clean the instrument Do not install in areas subject to explosion hazard (except special Atex versions) -
Page 6: Recommendations For Correct Installation Of The Load Cells
RECOMMENDATIONS FOR CORRECT INSTALLATION OF THE LOAD CELLS SIZING OF LOAD CELLS CAPACITY For safety reasons, in case of static weighing, it is advisable to use the load cells at a maximum of 70- 80% of its nominal capacity (assuming that the load is uniformly distributed over the entire weighed structure);... - Page 7 EARTHING THE WEIGHED STRUCTURE By means of a copper wire with suitable cross-section, connect the cell upper support plate with the lower support plate, then connect all the lower plates to a single earthing system. Electrostatic charges accumulated because of the product rubbing against the pipes and the weighed container walls are discharged to the ground without going through or damaging the load cells.
-
Page 8: Load Cell Input Test (Quick Access)
LOAD CELL INPUT TEST (QUICK ACCESS) From the weight display, press for 3 seconds: the display shows the response signal of the load cells expressed in mV with four decimals. Example: a load cell with 2.000 mV/V sensitivity provides a response signal between 0 and 10 mV. LOAD CELL TESTING Load cell resistance measurement (use a digital multimeter): - Turn off the instrument. -
Page 9: Main Specifications Of The Instrument
RS485 serial port for connection to: PC/PLC up to 32 instruments (max 99 with line repeaters) by ASCII Laumas or ModBus R.T.U. protocol, remote display. Optional: integrated CANopen, DeviceNet, CC-Link, PROFIBUS DP, Modbus/TCP, Ethernet TCP/IP, Ethernet/IP, PROFINET IO, EtherCAT, POWERLINK, SERCOS III output. TLB only: optoisolated 16 bit analog output (tension or current). - 5 -... -
Page 10: Technical Specifications
LINEARITY < 0.01% F.S. ANALOG OUTPUT LINEARITY (TLB only) < 0.01% F.S. THERMAL DRIFT < 0.0005% F.S./°C ANALOG OUTPUT THERMAL DRIFT (TLB only) < 0.003 % F.S./°C A/D CONVERTER 24 bit (16000000 points) DIVISIONS ±999999 (with measurement range ±10 mV = sens. 2 mV/V) MEASUREMENT RANGE ±39 mV... -
Page 11: Electrical Connections
ELECTRICAL CONNECTIONS BASIC INFORMATION - It is recommended that the power supply negative pole be grounded. - It is possible to supply up to 8 350 ohm load cells, or 16 700 ohm load cells. - For 4-wire load cells, make a jumper between EX- and REF- and between EX+ and REF+. - Connect terminal “–SUPPLY”... -
Page 12: Wiring Diagram
WIRING DIAGRAM TLB – TLB485 – TLBPROFI OUTPUTS 12/24 VDC 4-WIRE LOAD CELL max 115 VAC 150 mA SUPPLY RS485 TLB ONLY INPUTS ANALOG LOAD CELL supply 5÷24 VDC OUTPUT 3 outputs: controlled by setpoint values or by remote device via protocol. -
Page 13: Tlb (Other Models)
TLB (other models) OUTPUTS 12/24 VDC max 115 VAC 150 mA SUPPLY RS485 4-WIRE LOAD CELL INPUTS LOAD CELL supply 5÷24 VDC 3 outputs: controlled by setpoint values or by remote device via protocol. 2 inputs (default: input 1= SEMI-AUTOMATIC ZERO; input 2= NET/GROSS): settable to have the following functions: SEMI-AUTOMATIC ZERO, NET/GROSS, PEAK or REMOTE CONTROL (see section OUTPUTS AND INPUTS CONFIGURATION). -
Page 14: Led And Keys Functions
LED AND KEYS FUNCTIONS Main function Secondary function * net weight (semi-automatic tare or preset tare) LED lit: output 3 closed zero (deviation from zero not more than ±0.25 divisions) LED lit: output 2 closed stability LED lit: output 1 closed unit of measure: kg unit of measure: g LED lit: input 2 closed... -
Page 15: Menu Map
TLB only - 11 -... -
Page 16: Instrument Commissioning
INSTRUMENT COMMISSIONING Upon switch-on, the display shows in sequence: - → (ONLY in case of approved program); - instrument model (e.g.: ); - followed by the software code (e.g.: ); - program type: (base); - followed by the software version (e.g.: ); - ... -
Page 17: Programming Of System Parameters
PROGRAMMING OF SYSTEM PARAMETERS From the weight display, press simultaneously keys to access the parameter setting. to enter a menu/confirm the data entry. to modify the displayed figure or menu item. to select a new figure or modify the displayed menu item. to cancel and return to the previous menu. -
Page 18: Maximum Capacity
MAXIMUM CAPACITY : maximum displayable weight (from 0 to full scale; default: 0). When the weight exceeds this value by 9 divisions, the display shows . To disable this function, set 0. TARE WEIGHT ZERO SETTING ... -
Page 19: Real Calibration (With Sample Weights)
REAL CALIBRATION (WITH SAMPLE WEIGHTS) After having performed the THEORETICAL CALIBRATION and TARE WEIGHT ZERO SETTING, this function allows correct calibration to be done using sample weights of known value and, if necessary, any deviations of the indicated value from the correct value to be corrected. Load onto the weighing system a sample weight, which must be at least 50% of the maximum quantity to be weighed. -
Page 20: Filter On The Weight
FILTER ON THE WEIGHT Setting this parameter allows a stable weight display to be obtained. To increase the effect (weight more stable) increase the value (from 0 to 9, default 4). As seen in the diagram: - By confirming the message, the currently programmed filter value is displayed. - By changing and confirming the value, the weight is displayed and it will be possible to experimentally verify its stability. -
Page 21: Zero Parameters
ZERO PARAMETERS RESETTABLE WEIGHT SETTING FOR SMALL WEIGHT CHANGES (from 0 to full scale; default: 300; considered decimals: 300 – 30.0 – 3.00 – 0.300): this parameter indicates the maximum weight value resettable by external contact, keypad or serial protocol. AUTOMATIC ZERO SETTING AT POWER-ON ... -
Page 22: Setting Units Of Measure
SETTING UNITS OF MEASURE These are the available units of measure: kilograms : : grams tons : pounds* : : newtons* litres* : : bars* atmospheres* : pieces* : newton metres* : : kilogram metres* : other generic units of measure not included in the list* For the units marked with * it’s possible to set also the display coefficient (parameter , see the related section). - Page 23 If the unit of measure chosen is: : pounds, the value set in will be multiplied by the weight value currently displayed; : newton, the value set in will be multiplied by the weight value currently displayed; : litres, in set the specific weight in kg/l, assuming that the system is calibrated in kg; : bar, the value set in ...
-
Page 24: Outputs And Inputs Configuration
OUTPUTS AND INPUTS CONFIGURATION … … OUTPUTS The outputs are set by default as follows: / / / / . Possible operation modes: - (normally open): the relay is de-energised and the contact is open when the weight is lower than the programmed setpoint value;... -
Page 25: Semi-Automatic Tare (Net/Gross)
INPUTS Default: input 1 = input 2 = Possible operation modes: - (NET/GROSS): by closing this input for no more than one second, it’s making an operation of SEMI-AUTOMATIC TARE and the display will show the net weight. To display the gross weight again, hold the NET/GROSS input closed for 3 seconds. -
Page 26: Preset Tare (Subtractive Tare Device)
PRESET TARE (SUBTRACTIVE TARE DEVICE) It is possible to manually set a preset tare value to be subtracted from the display value provided that the ≤ max capacity condition is verified. By default the instrument shows the last programmed preset tare value: to apply it press and then After setting the tare value, going back to the weight display, the display shows the net weight (subtracting the preset tare value) and the NET LED lights up to show that a tare has been entered. -
Page 27: Semi-Automatic Zero (Weight Zero-Setting For Small Variations)
SEMI-AUTOMATIC ZERO (WEIGHT ZERO-SETTING FOR SMALL VARIATIONS) By closing the SEMI-AUTOMATIC ZERO input, the weight is set to zero; alternatively, by pressing the key, the message is displayed for 3 seconds, by pressing the weight is set to zero. This function is only allowed if the weight is lower than the ... -
Page 28: Analog Output (Tlb Only)
ANALOG OUTPUT (TLB ONLY) - : it selects the analog output type (4÷20 mA, 0÷20 mA, 0÷10 V, 0÷5 V, ±10 V, ±5 V; default: 4÷20 mA). For the output ±10 V and ±5 V a soldered jumper must be closed (the operation makes the other analog outputs unusable): ▫... - Page 29 - : analog output correction to zero: if necessary adjust the analog output, allowing the PLC to indicate 0. The sign “-“ can be set for the last digit on the left. E.g.: if I use a 4÷20 mA output and, with the minimum analog setting, the PLC or tester read 4.1 mA, I must set the parameter to 3.9 to obtain 4.0 on the PLC or tester.
-
Page 30: Serial Communication Setting
SERIAL COMMUNICATION SETTING - : it disables any type of communication (default). - : MODBUS-RTU protocol; possible addresses: from 1 to 99 (see Communication protocols manual). - : ASCII bidirectional protocol; possible addresses: from 1 to 99 (see Communication protocols manual). -
Page 31: Rs485 Serial Communication
- : delay in milliseconds which elapses before the instrument replies (from 0 to 200 ms; default: 0). - : - : no parity (default). - : even parity. - : odd parity. - : stop bit (1 – 2; default: 1). For more information about protocols and methods of communication, request the proper manual to technical assistance. -
Page 32: Direct Connection Between Rs485 And Rs232 Without Converter
: setting ensure that the corresponding output opens. Setting ensure that the corresponding output closes. - Analog Output Option Test (TLB only): : It allows the analog signal to range between the minimum and the maximum values starting from the minimum. -
Page 33: Setpoint Programming
SETPOINT PROGRAMMING From the weight display, press to access the setpoint setting. to enter a menu/confirm the data entry. to modify the displayed figure or menu item. to select a new figure or modify the displayed menu item. to cancel and return to the previous menu. …... -
Page 34: Alarms
ALARMS : the load cell is not connected or is incorrectly connected; the load cell signal exceeds 39 mV; the conversion electronics (AD converter) is malfunctioning; the load cell is a 4-wire and there are no jumpers between EX- and REF- and between EX+ and REF+; the references are not connected or are incorrectly connected. -
Page 35: Reserved For The Installer
RESERVED FOR THE INSTALLER MENU LOCKING Through this procedure, it’s possible to block the access to any menu on the instrument. Select the menu that you wish to lock: press simultaneously for 3 seconds, the display shows (the left point on the text indicates that this menu item is now locked). -
Page 36: Keypad Or Display Locking
PROGRAM SELECTION: confirm and use the arrow keys to select the desired program: : basic program, setpoint management only. Set the approval status: - : not approved program; - : approved program, single interval (Dir. 2014/31/EU, art. 1)*; - : approved program, multi-interval (Dir. -
Page 37: Declaration Of Conformity - Eu
Заявление о Мы заявляем, что продукт, к которому относится данная декларация, соответствует соответствии перечисленным ниже нормам. Models: TLB, TLB+/-10, TLB+/-5, TLB+05, TLB+010, TLB+020, TLB+420, TLB485, TLBCANOPEN, TLBDEVICENET, TLBCCLINK, TLBPROFI, TLBMODBUSTCP, TLBETHETCP, TLBETHEIPN, TLBPROFINETION, TLBETHERCAT, TLBPOWERLINK, TLBSERCOS Mark Applied EU Directive... -
Page 38: Declaration Of Conformity - Ukca
Заявление о Мы заявляем, что продукт, к которому относится данная декларация, соответствует соответствии перечисленным ниже нормам. Models: TLB, TLB+/-10, TLB+/-5, TLB+05, TLB+010, TLB+020, TLB+420, TLB485, TLBCANOPEN, TLBDEVICENET, TLBCCLINK, TLBPROFI, TLBMODBUSTCP, TLBETHETCP, TLBETHEIPN, TLBPROFINETION, TLBETHERCAT, TLBPOWERLINK, TLBSERCOS Mark Applied UK legislation... - Page 40 On our website www.laumas.com there are videos on the guidelines for correct installation of weighing systems and video tutorials on configuring our transmitters and weight indicators. All Laumas product manuals are available online. You can download the manuals in PDF format from www.laumas.com by consulting the Products section or the Download Area.
