Gemini Tinytag TE-4600 Manual

TE-4600
Tinytag Plus LAN Data Logger with Temperature & Relative Humidity Probe Tinytag Plus LAN Data Logger with Temperature & Relative Humidity Probe
Tinytag Plus LAN Data Logger with Temperature & Relative Humidity Probe Tinytag Plus LAN Data Logger with Temperature & Relative Humidity Probe
( ( ( ( - - - - 25 to +85°C/0 to 100% RH) 25 to +85°C/0 to 100% RH) 25 to +85°C/0 to 100% RH) 25 to +85°C/0 to 100% RH)
connect
• Ethernet connectivity (communicates across a LAN)
• Temperature & relative humidity monitoring
• User programmable audible & visual alarm
• Alarm output, to trigger external device
• Power over Ethernet (PoE) with battery back-up
• Waterproof case
• Tinytag Connect compatible

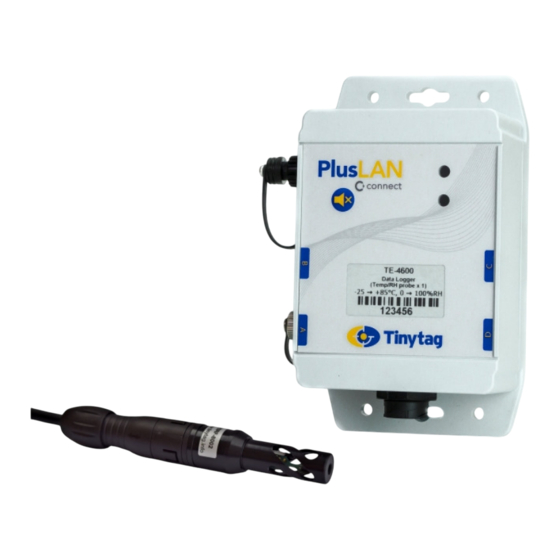

The TE-4600 is a temperature and relative humidity data logger that plugs
directly into a network point and communicates across a LAN.
The logger can be managed as a standalone logger, in conjunction with the
standard version of Tinytag Explorer, or as part of a network of loggers, using
Tinytag Connect software.
The data logger measures temperature and relative humidity using a probe.
The logger records data at user-defined logging intervals and can be
programmed to give alarm alerts, both audible and visual, in the event of a
problem. The logger also has an alarm output that changes state when alarms
are active.
Standalone
When used as a standalone device, the logger connects to a standard version
of Tinytag Explorer across a LAN and is downloaded and configured directly.
Tinytag Connect
When used as part of a Tinytag Connect system, the logger transmits data to
a Windows service that runs the system, called the Connect Gateway. This
data is then viewed, and loggers configured, using the Connect version of
Tinytag Explorer.
Multiple users can access the Connect system simultaneously.
If a logger cannot communicate with the system for any reason, data will be
recorded locally until communications are restored, ensuring no data is lost.
The Connect system can also send e-mail warnings when alarm limits are
exceeded.
Working With the Data
Using Tinytag Explorer, data recorded by the logger can be viewed as a graph
or as a table of readings. There are also summary views containing
information about the recording and a daily min/max view.
Data from multiple devices recording at the same time can be combined into a
single graph.
Graphical data can be exported from the software as an image, for use in
report writing or presentations, or as a data table, for further analysis in third-
party spreadsheet and data base programs.
www.tinytag.info www.tinytag.info
www.tinytag.info www.tinytag.info
sales@tinytag.info sales@tinytag.info sales@tinytag.info sales@tinytag.info
Issue 1 (19th April 2019) E&OE Issue 1 Issue 1 Issue 1
