Summary of Contents for Electrolux EWT1075H2WA

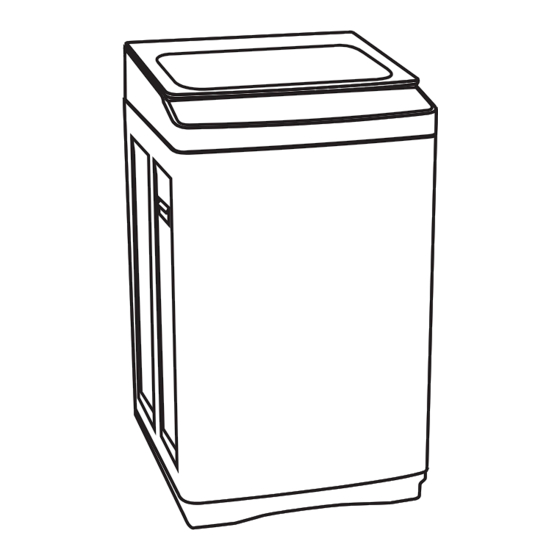

- Page 1 EWT1075H2WA Top Load Washer User Manual...
-
Page 2: Table Of Contents
Thank you for choosing a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. The Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable. You find some examples on the cover in this manual. -
Page 3: Safety Information
SAFETY INFORMATION This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental In the interest of your safety and to capabilities, or lack of experience and ensure the correct use, before knowledge, unless they have been installing and first using the given supervision or instruction appliance, read this user manual... - Page 4 SAFETY INFORMATION After having installed the appliance, Before washing, ensure that all check that it is not standing on the pockets are empty and buttons and inlet and drain hose and the worktop zips are fastened. Avoid washing is not pressing the electrical supply frayed or torn articles and treat stains cable.
-
Page 5: Product Description
Main cable with plug Cabinet Drain Hose Water Inlet Valve Level Adjustment Feet Front Right EWT1075H2WA Water Inlet Hose Auto Water Level Power Failure Recovery This washing machine has last status Your washing machine has selectable “Auto” sensing water level option as... -
Page 6: Control Panel
CONTROL PANEL Start/Pause Power On/Off Press this button to power on/off your Press this button to start and pause washing machine. The machine will washing program. automatically power off if there is no s Lock election made within 5 minutes. This function locks the control panel to Program Selector prevent disruption. -
Page 7: Washing Program
WASHING PROGRAMS Max Load Program Description Option （kg） 10.0 Soak,Extra Rinse,Soak+Extra Suitable for washing cotton clothes that are Rinse,Lock,Delay End, 10.0 Cottons lightly soiled. Water Level Soak,Extra Rinse,Soak+Extra Suitable for washing shirts,casual pants and Rinse,Auto Tub Clean,Lock, 10.0 Mixed other ordinary clothes. Delay End，Water Level Suitable for washing daily clothes that are Lock,Delay End,Water Level... -
Page 8: Use
These Washing Instructions are of a Lint collectors Lint producers general nature and you should get good Corduroy T owels wash results by following them. Synthetics Nappies Permanent press Chenille/ However, due to the variables of fabric fabrics Candlewick types, soil levels, detergent types and available program settings you may find some combinations of these which do not always result in the perfect wash. - Page 9 When loading the clothes into your washing machine, there are four things to remember: Clothes must be loaded evenly in the tub. Clothes must not be wrapped around in the tub. The washing machine must not be overloaded. Clothes must be able to move around during washing.
-
Page 10: Care And Cleaning
CARE AND CLEANING What To Do After You Have Lift the front of the drawer up and pull to remove it from the runners. Finished Your Washing. Clean the dispenser drawer with hot After washing course is completed， water and a brush, eg. an old the water tap must be turned off. - Page 11 CARE AND CLEANING Cleaning Stains In The 2: Open the filter screen and wash it with water. Drum Stains and residue in the drum can be caused by: Metal objects such as bobby pins, dress making pins and nails. Salt. Body oils and grease from dirty 3: Push down the filter screen or sweaty clothes being deposited...
-
Page 12: Helpful Hints In Dealing With Washing Problem
HELPFUL HINTS IN DEALING WITH WASHING PROBLEMS Residues On Washed ltems lf you use pre-treatment sprays or stain removers, apply them to the clothes lf you are experiencing residue on some items in a well ventilated area away clothes, the following tips will help: from your washing machine. -
Page 13: Troubleshooting
TROUBLESHOOTING When the washing machine displays the below content with a buzzer,except silent Ld code,it will automatically power off after 5 minutes. Identify the problem and if possible, rectify it before contacting local service. Do not dismantle and repair the machine without authorization. Program Display Possible causes... -
Page 14: Technical Information
Some detergent residue in the detergent Check the water supply pressure. The suitable water supply drawer pressure is 0.03-0.6MPa. Technical Information EWT1075H2WA Model Product Dimension (WxHxD) mm 570x940x590 Power supply : THAI 220V~,50Hz Rated Power... -
Page 15: Installation Instruction
INSTALLATION INSTRUCTIONS 1.Unpacking and bottom cover IMPORTANT : Prevention damaged to the cabinet by placing two of the corner 1.1 Take the machine out of the packing pieces supporting between packaging base. back of machine and floor. IMPORTANT: Top polystyrene must be removed after installation bottom cover. - Page 16 INSTALLATION INSTRUCTIONS 4.2 Loosen the screw till the water faucet can be accessed. Put the jointer of the water inlet hose on the faucet. 3.3 Position drain hose by adjusting the free length of hose to suit your installation. IMPORTANT: Do not put hose tip into the water.
- Page 17 Machine should be placed even on the floor. If the flooring is not even, adjust the adjustable feet of the washing machine until the entire machine is stable. EWT1075H2WA 1405 IMPORTANT: Adjustable feet are 7. Control panel protective film assembled on the left or right side Protective film on the control panel can depending on the different models.
-
Page 18: Environment Concerns
ENVIRONMENT CONCERNS Packaging materials Ecological hints T o save water, energy and to help protect the environment, we recommend that you follow these tips: The materials marked with the symbol are recyclable. Normally soiled laundry may be washed without prewashing in order >PE<=polyethylene to save detergent, water and time >PS<=polystyrene... -
Page 19: Contact Detail: Electrolux Customer Care
CONTACT DETAILS ELECTROLUX CUSTOMER CARE... - Page 20 * We may make changes to this product or manual in our continuous effort for improvement without prior notification.
