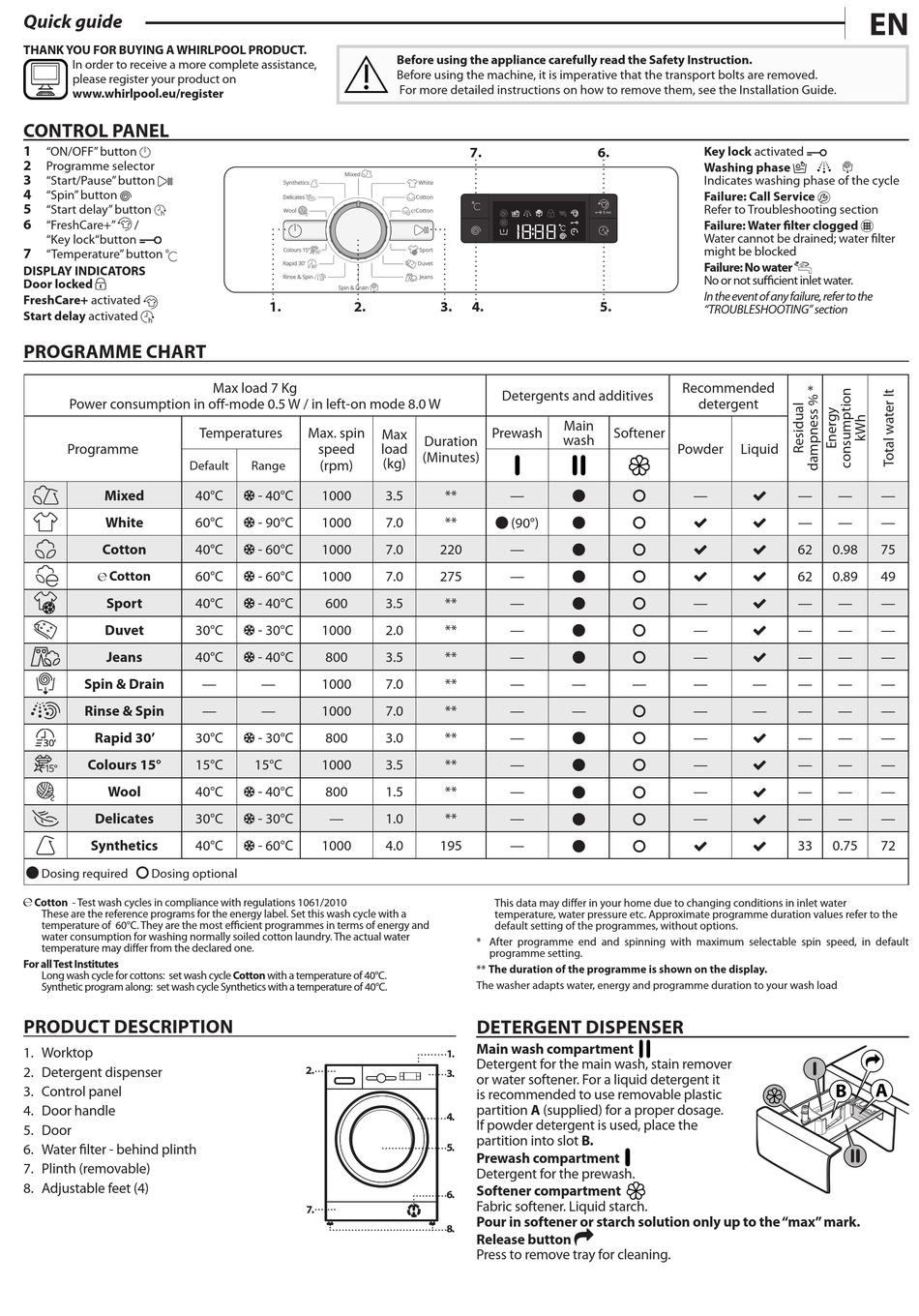

Whirlpool FWF71052W GCC Quick Manual

Quick guide
THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.
In order to receive a more complete assistance,
please register your product on
www.whirlpool.eu/register
CONTROL PANEL
1
"ON/OFF" button
2
Programme selector
3
"Start/Pause" button
4
"Spin" button
5
"Start delay" button
6
"FreshCare+" /
"Key lock"button
7
"Temperature" button
40°
60°
DISPLAY INDICATORS
Door locked
FreshCare+ activated
Start delay activated
PROGRAMME CHART
Power consumption in off-mode 0.5 W / in left-on mode 8.0 W
Programme
Default
Mixed
40°C
White
60°C
Cotton 40°C
Cotton 60°C
Sport 40°C
Duvet
30°C
Jeans
40°C
Spin & Drain
Rinse & Spin
Rapid 30' 30°C
Colours 15°
15°C
Wool
40°C
Delicates
30°C
Synthetics 40°C
 Dosing required  Dosing optional
Cotton - Test wash cycles in compliance with regulations 1061/2010
These are the reference programs for the energy label. Set this wash cycle with a
temperature of 60°C. They are the most efficient programmes in terms of energy and
water consumption for washing normally soiled cotton laundry. The actual water
temperature may differ from the declared one.
For all Test Institutes
Long wash cycle for cottons: set wash cycle Cotton with a temperature of 40°C.
Synthetic program along: set wash cycle Synthetics with a temperature of 40°C.
PRODUCT DESCRIPTION
1. Worktop
2. Detergent dispenser
3. Control panel
4. Door handle
5. Door
6. Water filter - behind plinth
7. Plinth (removable)
8. Adjustable feet (4)
Mixed
Synthetics
Delicates
Wool
Colours 15°
Rapid 30'
Rinse & Spin
Spin & Drain
1. 2.
Max load 7 Kg
Temperatures
Max. spin
speed
(rpm)
Range
- 40°C 1000
- 90°C 1000
- 60°C 1000
- 60°C 1000
- 40°C 600
- 30°C 1000
- 40°C 800
— — 1000
— — 1000
- 30°C 800
15°C 1000
- 40°C 800
- 30°C —
- 60°C 1000
2.
7.
Before using the appliance carefully read the Safety Instruction.
Before using the machine, it is imperative that the transport bolts are removed.
For more detailed instructions on how to remove them, see the Installation Guide.
7.
White
Cotton
Cotton
Sport
Duvet
Jeans
3. 4.
Detergents and additives
Prewash
Max
Duration
load
(Minutes)
(kg)
3.5 ** —
7.0 **  (90°)
7.0 220 —
7.0 275 —
3.5 ** —
2.0 ** —
3.5 ** —
7.0 ** —
7.0 ** —
3.0 ** —
3.5 ** —
1.5 ** —
1.0 ** —
4.0 195 —
This data may differ in your home due to changing conditions in inlet water
temperature, water pressure etc. Approximate programme duration values refer to the
default setting of the programmes, without options.
* After programme end and spinning with maximum selectable spin speed, in default
programme setting.
** The duration of the programme is shown on the display.
The washer adapts water, energy and programme duration to your wash load
DETERGENT DISPENSER
Main wash compartment
1.
Detergent for the main wash, stain remover
3.
or water softener. For a liquid detergent it
is recommended to use removable plastic
partition A (supplied) for a proper dosage.
4.
If powder detergent is used, place the
partition into slot B.
5.
Prewash compartment
Detergent for the prewash.
Softener compartment
6.
Fabric softener. Liquid starch.
Pour in softener or starch solution only up to the "max" mark.
8.
Release button
Press to remove tray for cleaning.
6. Key lock activated
Washing phase
Indicates washing phase of the cycle
Failure: Call Service
Refer to Troubleshooting section
Failure: Water filter clogged
Water cannot be drained; water filter
might be blocked
Failure: No water
No or not sufficient inlet water.
In the event of any failure, refer to the
5.
"TROUBLESHOOTING" section
Recommended
detergent
Main
Softener
wash
Powder
—
 
  
  
  
—
 
—
 
—
 
— — —
— —

—
 
—
 
—
 
—
 
  

EN
Liquid
— — —

— — —

62 0.98 75

62 0.89 49

— — —

— — —

— — —

— — — —
— — — —
— — —

— — —

— — —

— — —

33 0.75 72


A
B
