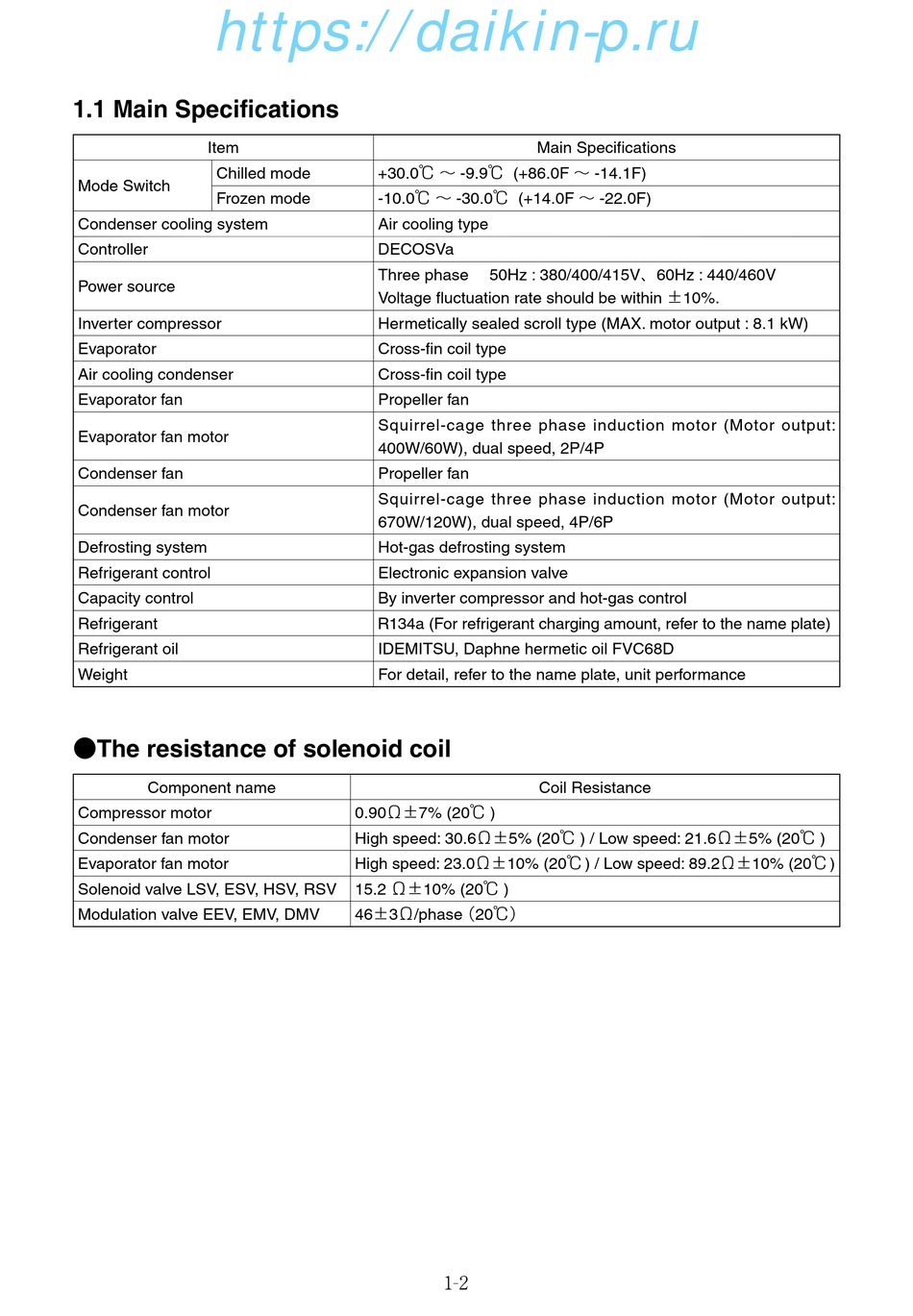

1.1 Main Specifications

Item
Chilled mode
Mode Switch
Frozen mode
Condenser cooling system
Controller
Power source
Inverter compressor
Evaporator
Air cooling condenser
Evaporator fan
Evaporator fan motor
Condenser fan
Condenser fan motor
Defrosting system
Refrigerant control
Capacity control
Refrigerant
Refrigerant oil
Weight
●The resistance of solenoid coil
Component name
Compressor motor
Condenser fan motor
Evaporator fan motor
Solenoid valve LSV, ESV, HSV, RSV
Modulation valve EEV, EMV, DMV
+30.0℃ 〜 -9.9℃ (+86.0F 〜 -14.1F)
-10.0℃ 〜 -30.0℃ (+14.0F 〜 -22.0F)
Air cooling type
DECOSVa
Three phase 50Hz : 380/400/415V、60Hz : 440/460V
Voltage fluctuation rate should be within ±10%.
Hermetically sealed scroll type (MAX. motor output : 8.1 kW)
Cross-fin coil type
Cross-fin coil type
Propeller fan
Squirrel-cage three phase induction motor (Motor output:
400W/60W), dual speed, 2P/4P
Propeller fan
Squirrel-cage three phase induction motor (Motor output:
670W/120W), dual speed, 4P/6P
Hot-gas defrosting system
Electronic expansion valve
By inverter compressor and hot-gas control
R134a (For refrigerant charging amount, refer to the name plate)
IDEMITSU, Daphne hermetic oil FVC68D
For detail, refer to the name plate, unit performance
0.90Ω±7% (20℃ )
High speed: 30.6Ω±5% (20℃ ) / Low speed: 21.6Ω±5% (20℃ )
High speed: 23.0Ω±10% (20℃ ) / Low speed: 89.2Ω±10% (20℃ )
15.2 Ω±10% (20℃ )
46±3Ω/phase （20℃）
1-2
Main Specifications
Coil Resistance
